Xerox Phaser 7760 Service Manual

January 2010
4-25
Phaser 7760 Color Laser Printer
REP 7.11, REP 7.12
Repairs and Adjustments
Revised
6. Remove Tray 4 Feeder from the Mounting Bracket (Figure 2).

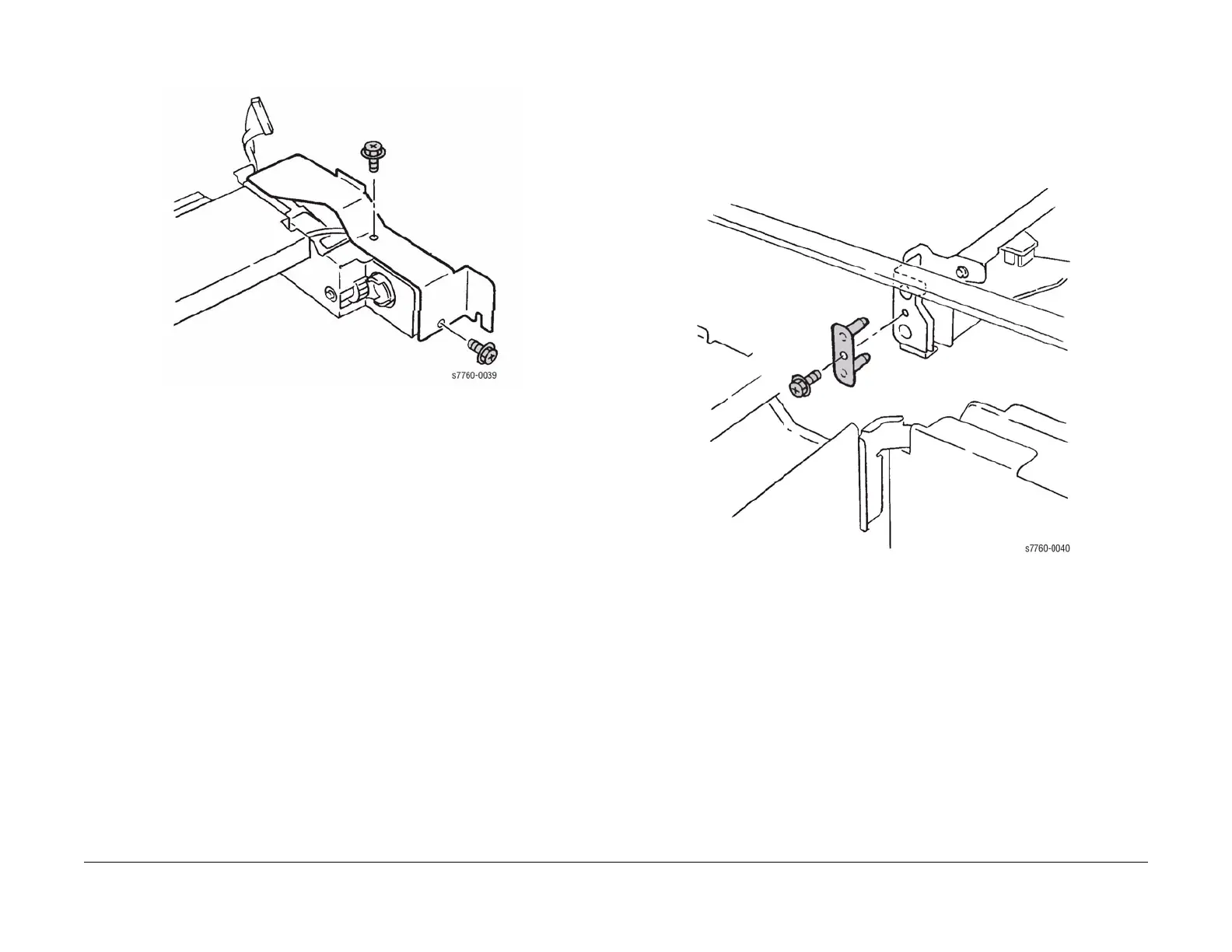

Figure 2 Removing Tray 4 Feeder from Bracket
REP 7.12 Tray 5 (TTM - High-Capacity) Feeder
Parts List on PL 16.5
Removal
1. Remove Tray 3.
2. Pull out Tray 5.
3. Remove1 screw and the Stud Bracket (Figure 1).
Figure 1 Removing Stud Bracket
