Xerox Phaser 7760 Service Manual

January 2010
4-76
Phaser 7760 Color Laser Printer
REP 12.55
Revised
Repairs and Adjustments
REP 12.55 Professional Finisher Booklet Maker Unit
Parts List on PL 21.1, PL 21.15
Removal
1. Open the Front Door.
2. Pull out the Booklet Maker Unit until it stops.
3. Loosen 1 screw securing the Booklet Maker Stopper (Figure 1).
4. Removing the Booklet Maker Unit (Figure 1).
a. Push in the Stopper on the right Rail and pull the Booklet Maker Unit out until it
stops.
b. Push in the Stopper on the Left Rail.
c. Pull out and remove the Booklet Maker Unit from the Finisher.
NOTE: Rails bind easily. Ensure to support weight of the Booklet Maker.
NOTE: Use caution to avoid personal injury and/or damage to the Booklet Maker when
removing the Booklet Maker Unit from the Finisher.

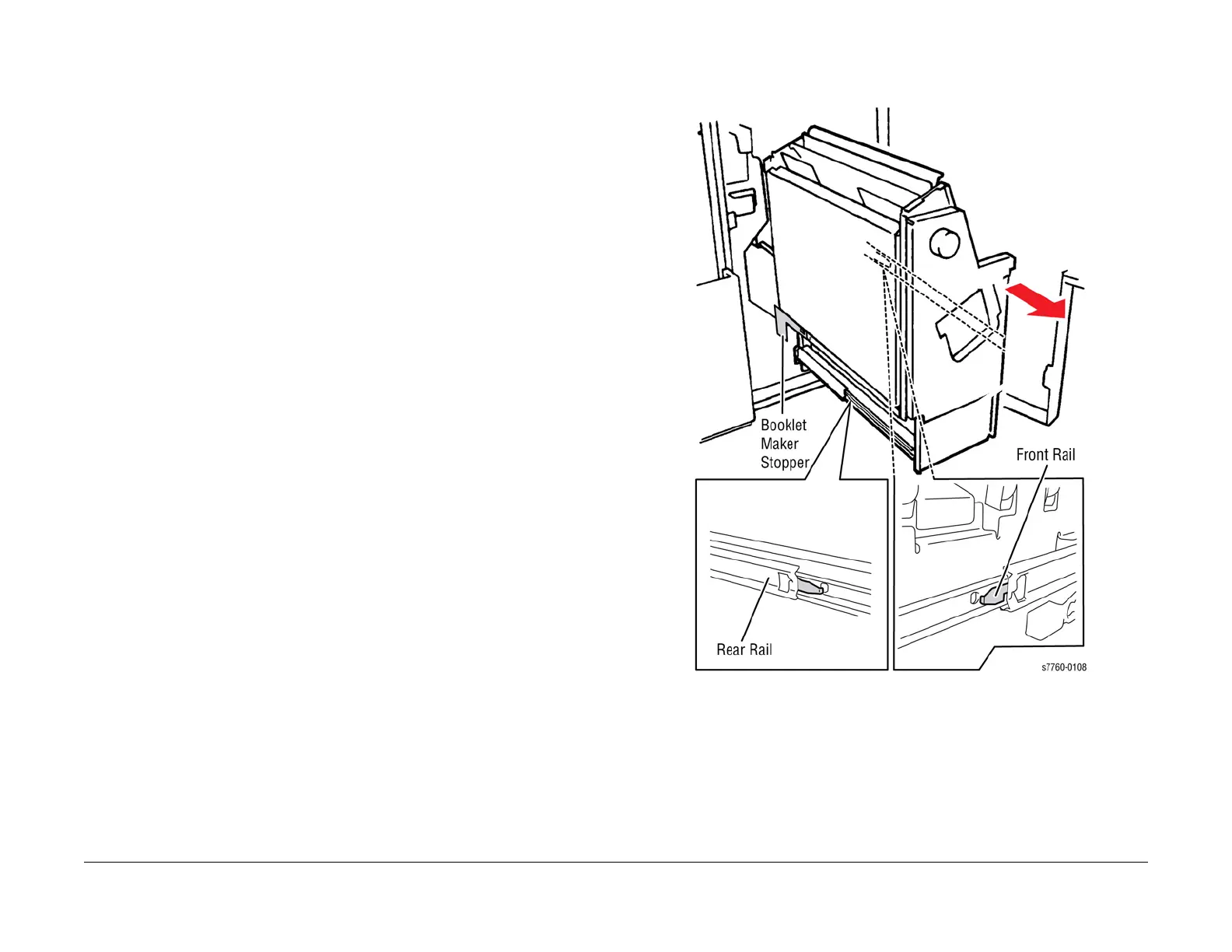

Figure 1 Removing Booklet Maker Unit
Replacement
1. Perform the installation in the reverse order of the removal procedure, starting with attach-
ing the left Rail then the right Rail.
2. Ensure to push back the release on the Rail Slide of the Rear Rail in order to push back
into the Printer.
3. Use about 2/3 reams of paper to support the bottom of the Booklet Maker and prop up to
align the Rails.
