Xerox Phaser 7760 Service Manual

January 2010
4-90
Phaser 7760 Color Laser Printer
REP 12.69
Revised
Repairs and Adjustments
3. Ensure to push the Shaft to the front if the Transport Roller is retracted by opening Chutes
2b and 3 (Figure 2).

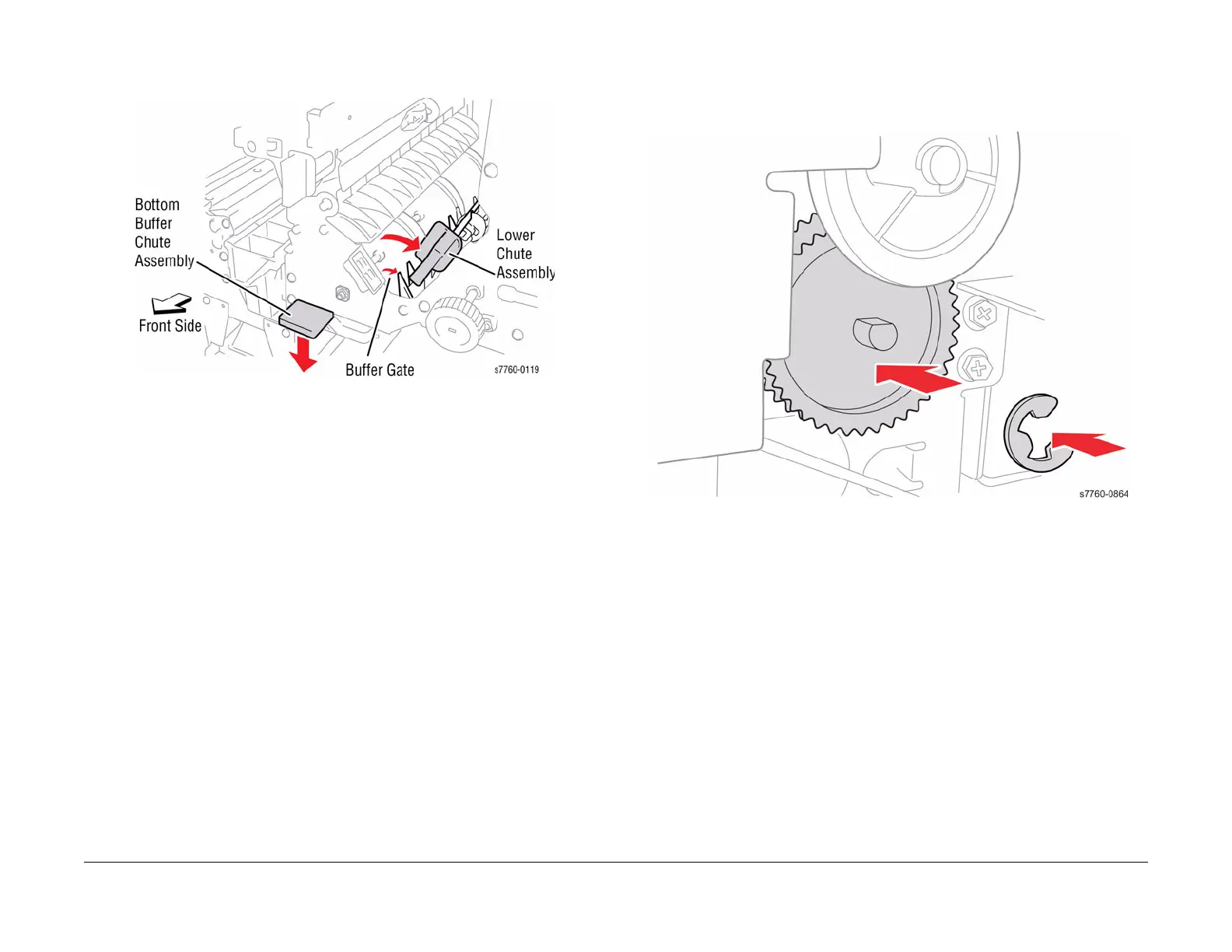

Figure 2 Opening Chutes
Replacement
Ensure to match the D-shape of the Gear to the D-shape of the Shaft (Figure 3). Then, faster
with a KL-clip (354W 24254).
Figure 3 Attaching New Gear
