Printer Paper Path
1) After receiving a print command, the printer feeds paper from the main cassette or manual feed-
er as required.
2) The paper being fed passes the paper feed sensor. (Jam 0 occurs if the sensor is not operated
within a certain time)
3) Having passed the paper feed sensor the paper moves to the paper exit sensor via printing
process. (Jam 1 occurs if the sensor is not operated within a certain time)
4) The paper then passes through the paper exit sensor and out of the set. (Jam 2 occurs if the
trailing edge of the
paper does not pass the exit sensor within a certain time of the paper leading edge activating the
exit sensor)

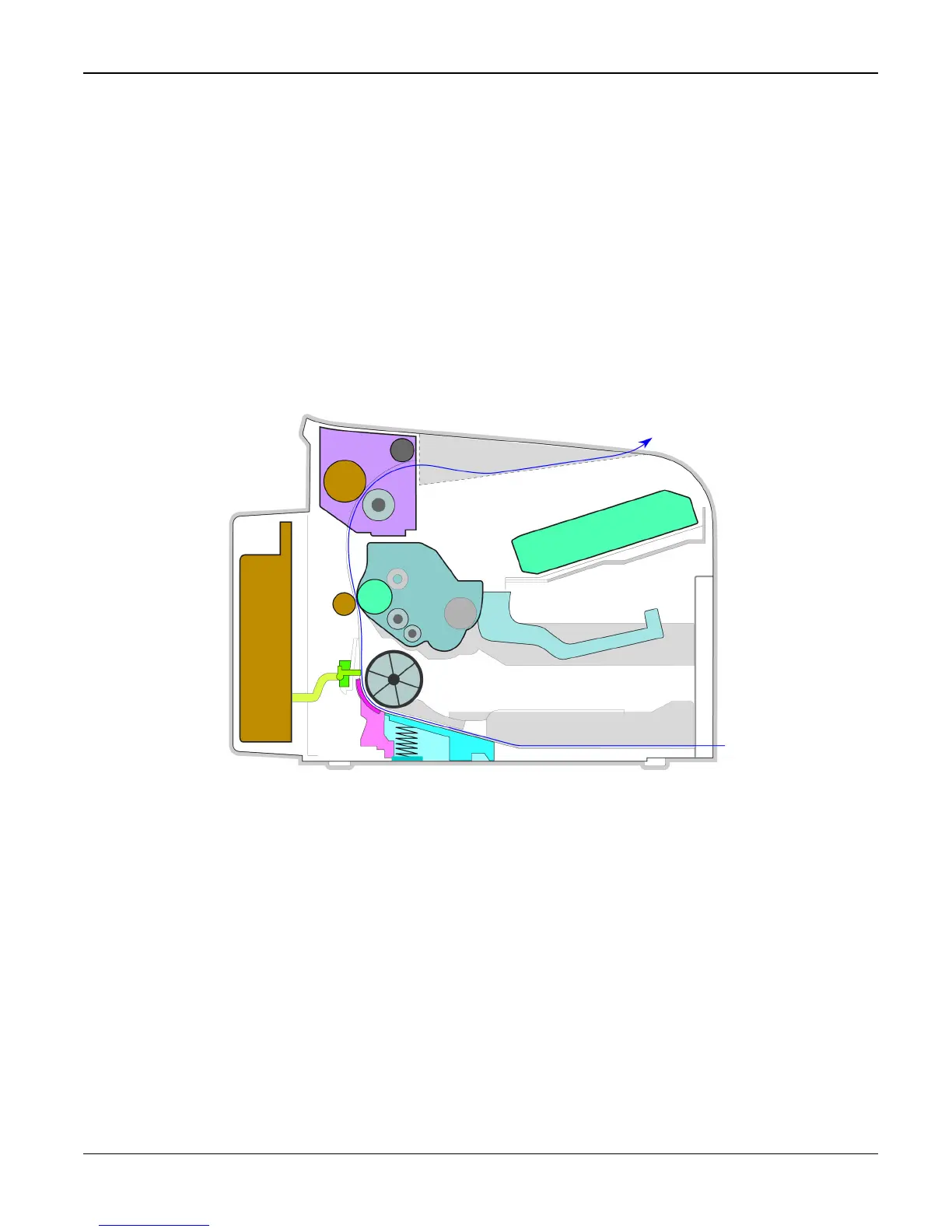

Figure 2
