Repairs/Adjustments
Workcentre PE 220 11/05 4-17

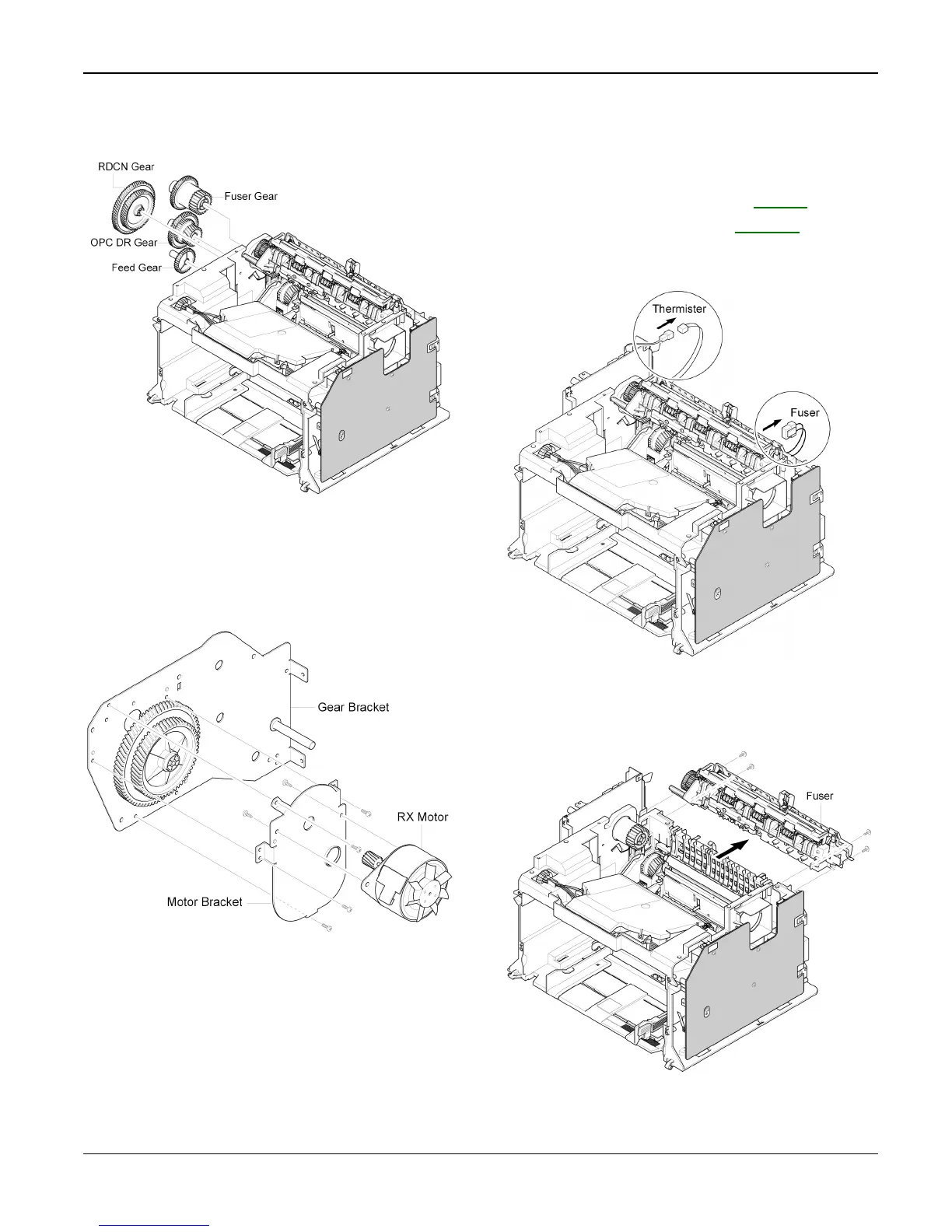

5. Release the four Gears (RDCN, OPC,
Fuser, Feed) from the Frame.
Figure 4
6. Remove four screws securing the Motor
Bracket and remove it. Then remove two
screws securing the Motor and remove it.
Figure 5
REP 16 Fuser
1. Before you remove the Fuser, you should
remove:
- Scan Assembly (Refer to REP 8)
- Middle Cover (Refer to REP 12)
2. Unplug the two Connectors from the
SMPS and Main PBA.
Figure 1
3. Remove four screws securing the Fuser
and remove it.
Figure 2
