Repairs/Adjustments
Workcentre PE 220 11/05 4-7

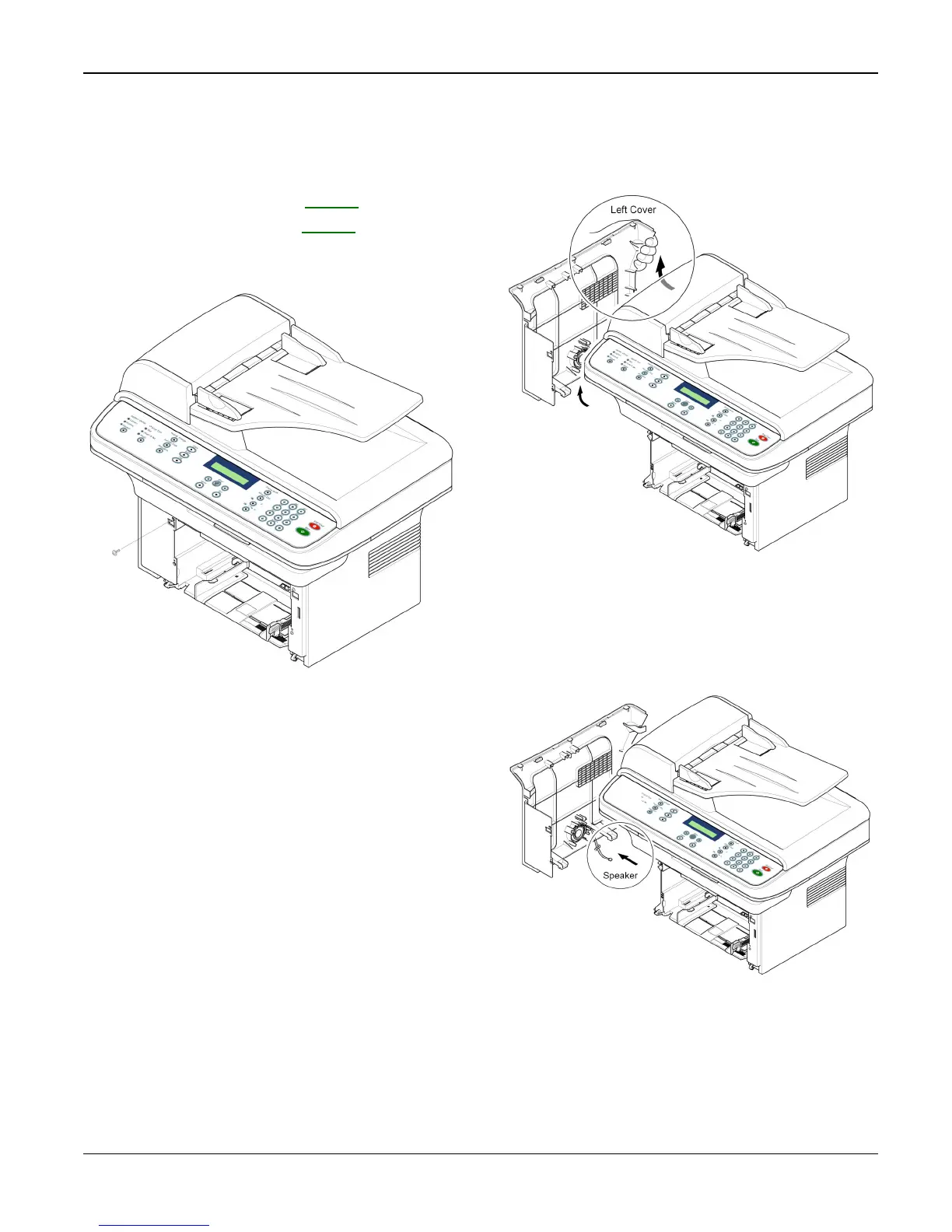

REP 7 Left Cover
1. Before you remove the Left Cover, you
should remove:
- Front Cover (Refer to REP 3)
- Rear Cover (Refer to REP 5)
2. Remove the screw securing the Left
Cover.
Figure 1
3. Apply light pressure to the back of the Left
Cover and pull it to the left side in the
direction of the arrow.
Figure 2
4. Unplug the Speaker Connector from the
Main PBA.
Figure 3
5. If necessary, remove the two screws
securing the Speaker.
