Repairs/Adjustments
Workcentre PE 220 11/05 4-9

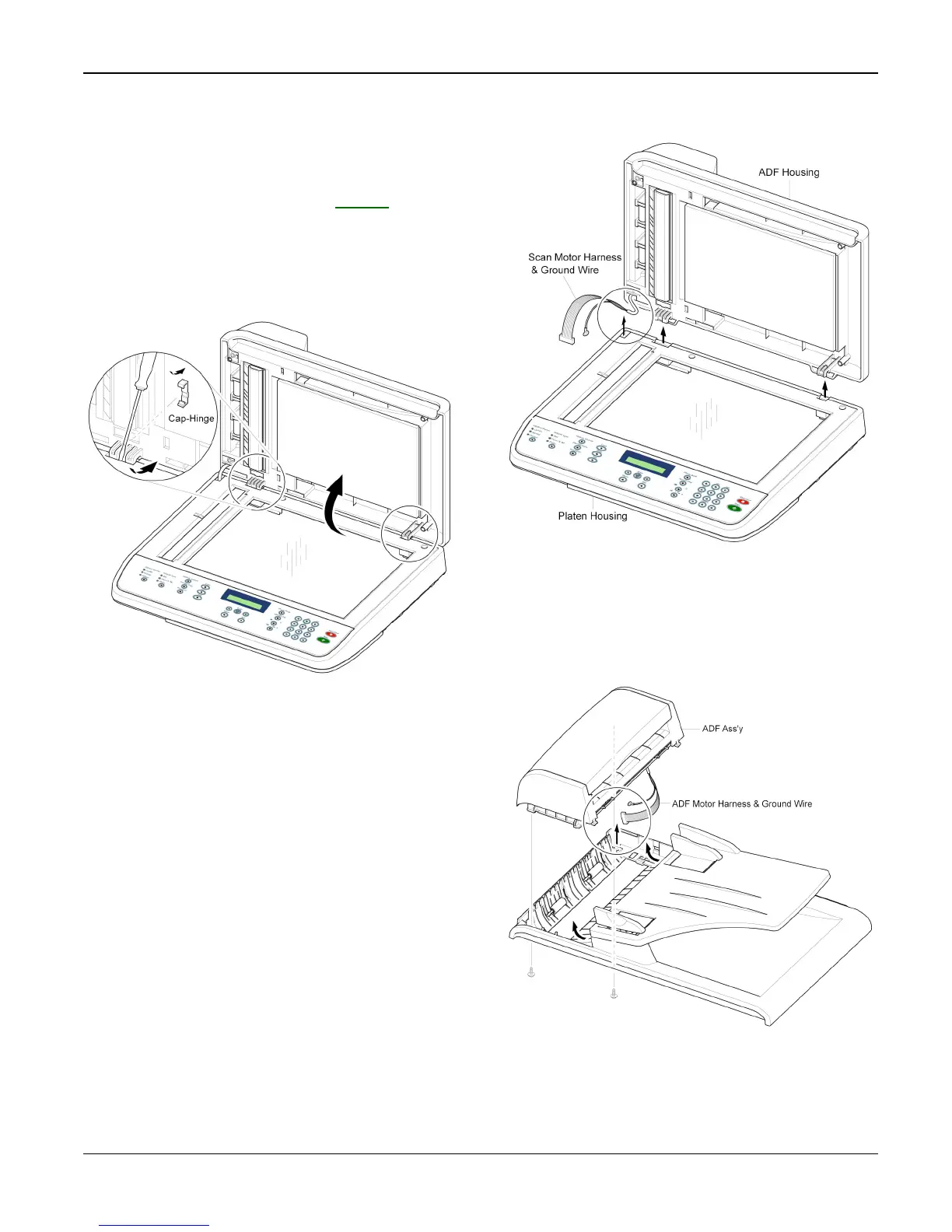

REP 9 ADF Housing
1. Before you remove the ADF Housing, you
should remove:
- Scan Assembly (Refer to REP 8)
2. Open the ADF Housing and insert a flat-
blade screwdriver into the slot and
remove the Cap-Hinge from the Platen
Housing and ADF Housing.
Figure 1
3. Remove the ADF Housing from the Platen
Housing, while carefully releasing the
ADF Motor Harness and ground wire from
the Platen Housing.
Figure 2
4. Remove two screws securing the ADF
Assembly. Carefully release the ADF
Motor Harness and ground wire from the
Platen Cover..
Figure 3
