Repairs/Adjustments
4-22 11/05 Workcentre PE 220
REP 18 LSU
CAUTION
Do not touch the LSU Glass Window. Con-
tamination on the LSU Glass Window can
lead to Image Quality problems.
1. Before you remove the LSU, you should
remove:
- Scan Assembly (Refer to REP 8)
- Middle Cover (Refer to REP 12)
2. Remove three screws securing the LSU
and remove it. Unplug the two Connectors
from the LSU.

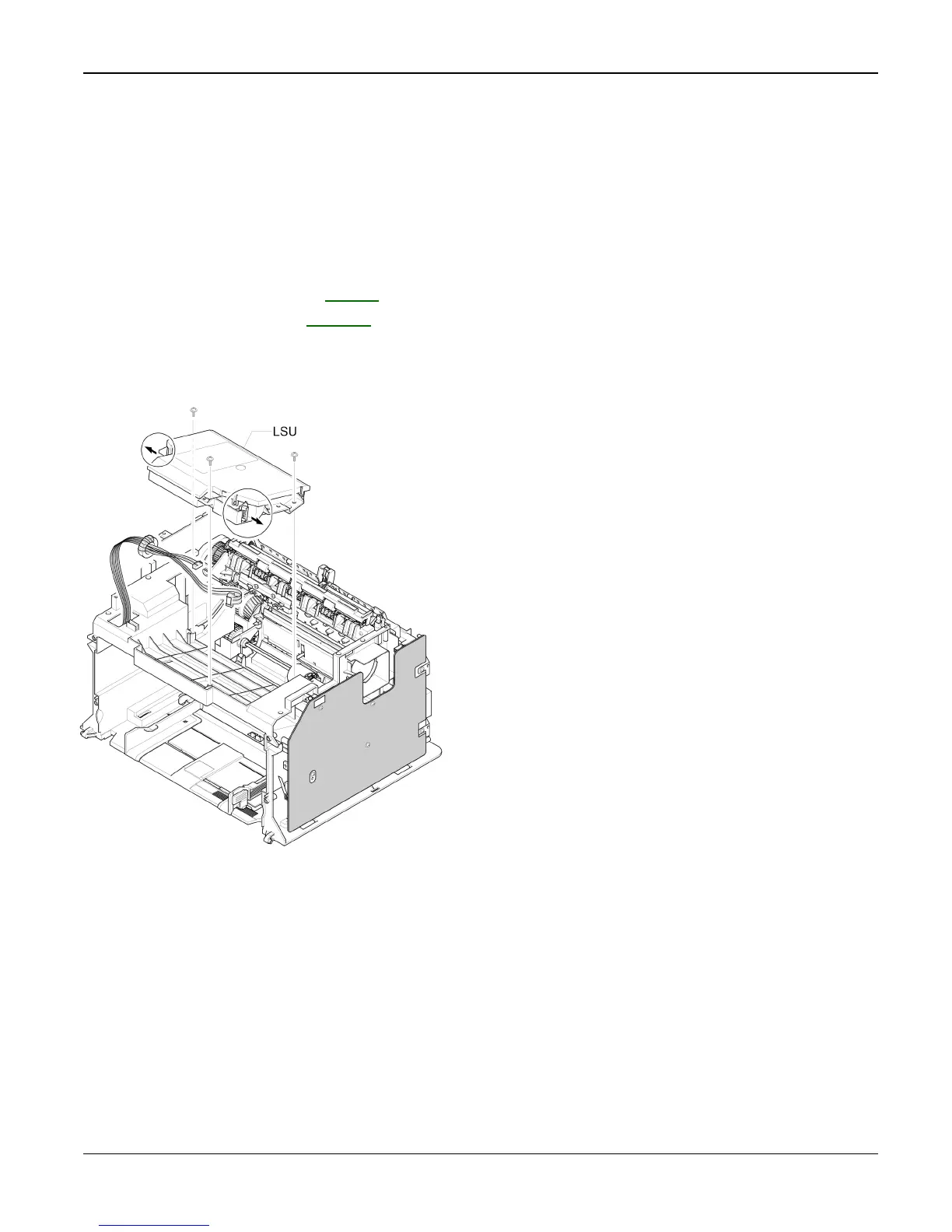

Figure 1
