Xilinx ZCU102 User Manual

ZCU102 Evaluation Board User Guide www.xilinx.com 51
UG1182 (v1.2) March 20, 2017
Chapter 3: Board Component Descriptions
LED_0 indicates link established. For more Ethernet PHY details, see the TI DS83867 data
sheet [Ref 18].
CP2108 USB UART Interface
[Figure 2-1, callout 13]
The CP2108 quad USB-UART on the ZCU102 board provides four level-shifted UART
connections through single micro-B USB connector J83. Channel 0 and 1 are PS-side MIO
connections described in the MIO section. Channel 2 is a PL-side connection and Channel 3
is connected to MSP430 system controller U41. The USB UART interface circuit is shown in
Figure 3-14. The Silicon Labs CP2108 data sheet is available on the Silicon Labs website
[Ref 17].
X-Ref Target - Figure 3-14

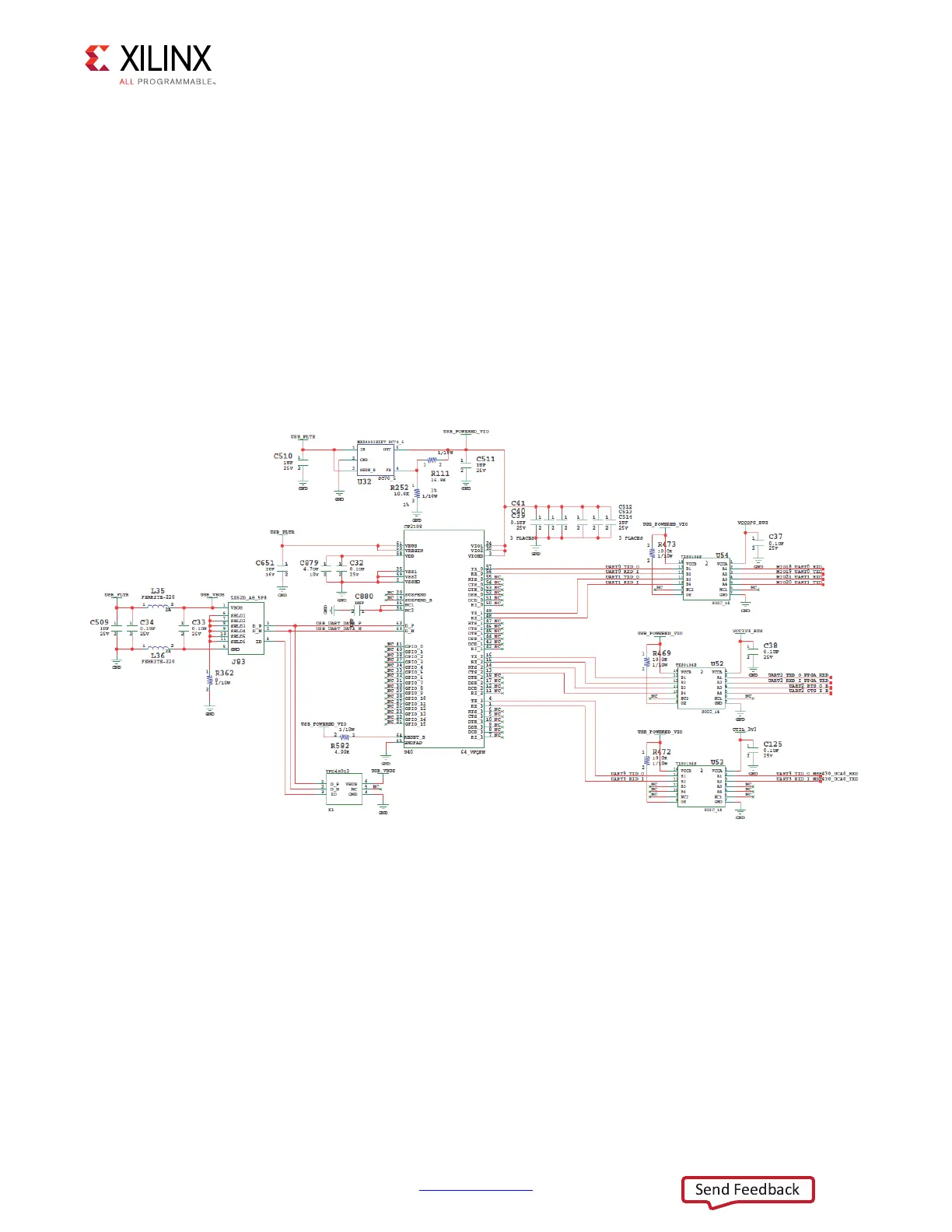

Figure 3-14: USB UART Interface
;
Send Feedback
