Yamaha XT660R S Service Manual

4 - 12
CHAS

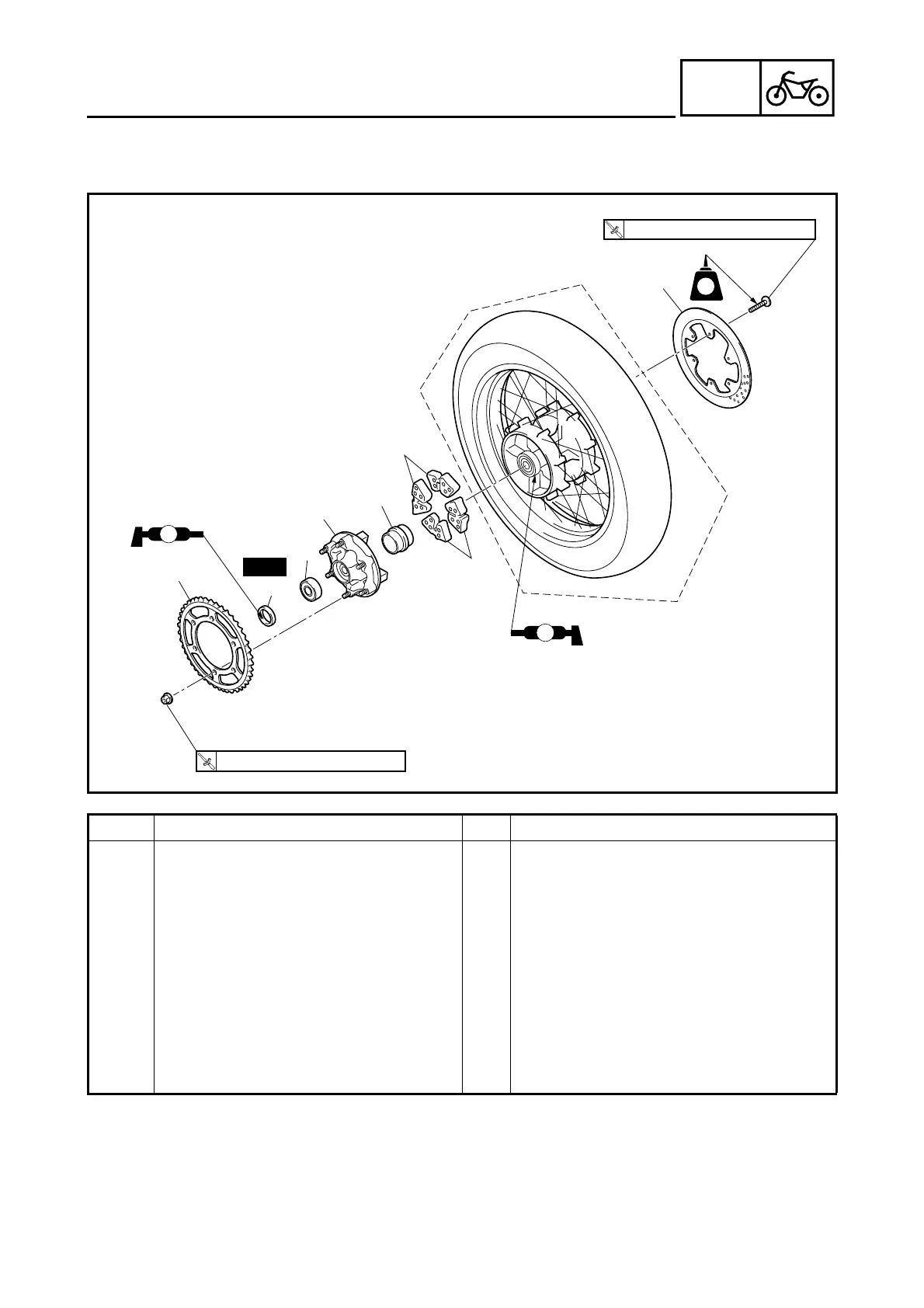

REAR WHEEL, BRAKE DISC, AND REAR WHEEL
SPROCKET
BRAKE DISC AND REAR WHEEL SPROCKET
6
6
LT
LS
T
R
.
.
13 Nm (1.3 m
•
kg, 9.4 ft
•
Ib)
T
R
.
.
69 Nm (6.9 m
•
kg, 50 ft
•
Ib)
LS
7
5
2
4
3
1
(6)
(6)
New
Order Job/Part Q’ty Remarks
Removing the brake disc and rear
wheel sprocket
Remove the parts in the order listed.
1 Oil seal 1
2 Rear wheel sprocket 1
3 Bearing 1
4 Rear wheel drive hub 1
5 Spacer 1
6 Rear wheel drive hub damper 4
7 Rear brake disc 1
For installation, reverse the removal pro-
cedure.

Yamaha XT660R S Specifications

General

Displacement	660 cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition System	TCI
Starter System	Electric
Transmission System	5-speed
Final Drive	Chain
Front Suspension System	Telescopic forks
Front Tyre	90/90-21 M/C 54S
Rear Tyre	130/80-17 M/C 65S
Overall Width	865 mm
Overall Height	1, 230 mm
Seat Height	865 mm
Wheelbase	1, 505 mm
Wet Weight	181 kg
Fuel Tank Capacity	15 litres
Oil Tank Capacity	2.9 litres
Engine Type	Liquid-cooled, 4-stroke, single cylinder, SOHC
Maximum Power	48hp (35kW) @ 6, 000rpm
Frame	Steel diamond
Rear Suspension System	Swingarm, (link suspension)
Front Brake	Single 298mm disc, 2-piston caliper
Rear Brake	Single Disc, 245 mm
