Yamaha XT660R S Service Manual

5 - 42
ENG

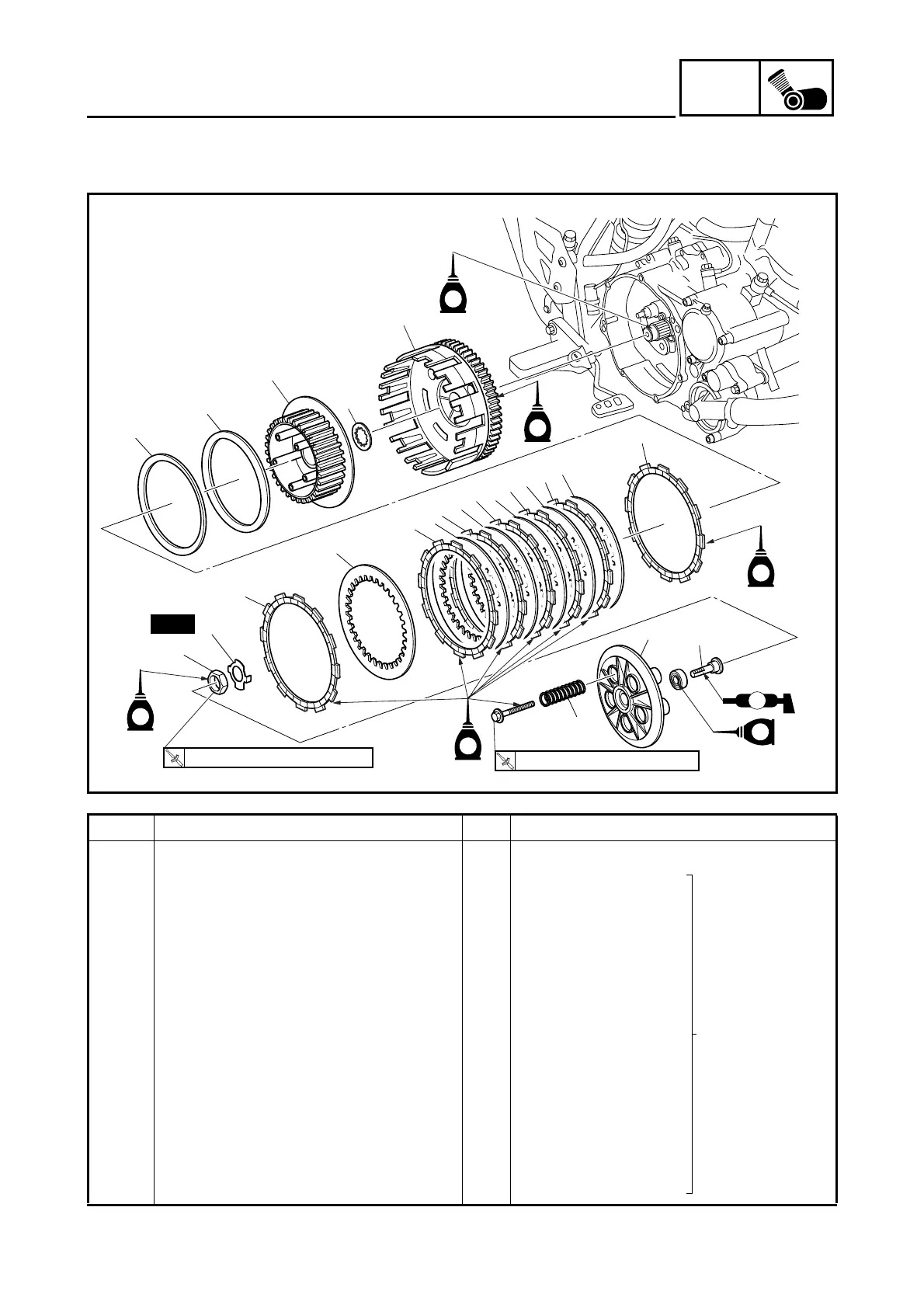

CLUTCH
EAS00274
CLUTCH
E
E
New
E
M
E
T
R
.
.
90 Nm (9.0 m
•
kg, 65 ft
•
Ib)
T
R
.
.
9 Nm (0.9 m
•
kg, 6.5 ft
•
Ib)
1
2
3
4
6
4
7
4
4
6
5
5
5
5
5
5
8
9
10
11
12
13
14
(5)
(5)
E
E
Order Job/Part Q’ty Remarks
Removing the clutch
Remove the parts in the order listed.
1 Clutch spring 5
Refer to
“INSTALLING
THE CLUTCH”.
2 Pressure plate 1
3Pull rod 1
4 Friction plate 1 4 Inside diameter (plate
with notched tabs) =
119 mm (4.69 in)
5 Clutch plate 6
6 Friction plate 2 2 Inside diameter (plate
with no notched tabs)
= 119 mm (4.69 in)
7 Friction plate 3 1 Inside diameter (plate
with notched tabs) =
128 mm (5.04 in)
8 Clutch damper spring 1
9 Clutch damper spring seat 1

Yamaha XT660R S Specifications

General

Displacement	660 cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition System	TCI
Starter System	Electric
Transmission System	5-speed
Final Drive	Chain
Front Suspension System	Telescopic forks
Front Tyre	90/90-21 M/C 54S
Rear Tyre	130/80-17 M/C 65S
Overall Width	865 mm
Overall Height	1, 230 mm
Seat Height	865 mm
Wheelbase	1, 505 mm
Wet Weight	181 kg
Fuel Tank Capacity	15 litres
Oil Tank Capacity	2.9 litres
Engine Type	Liquid-cooled, 4-stroke, single cylinder, SOHC
Maximum Power	48hp (35kW) @ 6, 000rpm
Frame	Steel diamond
Rear Suspension System	Swingarm, (link suspension)
Front Brake	Single 298mm disc, 2-piston caliper
Rear Brake	Single Disc, 245 mm
