Yamaha XT660R S - Starter Motor

8 - 23
– +
ELEC

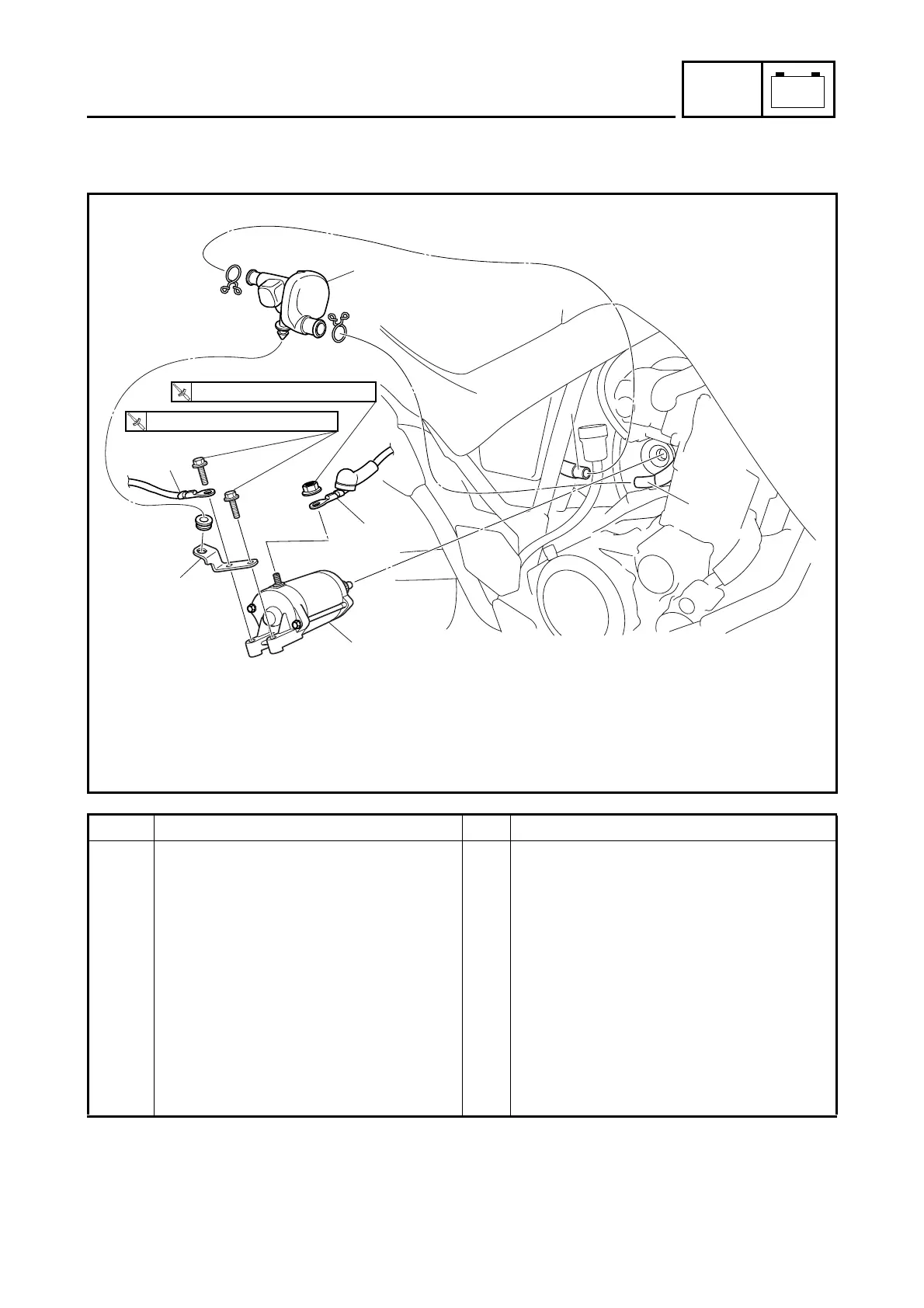

STARTER MOTOR
EAS00767
STARTER MOTOR
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
5 Nm (0.5 m
•
kg, 3.6 ft
•
Ib)
4
6
7
1
2
5
3
Order Job/Part Q’ty Remarks
Removing the starter motor
Remove the parts in the order listed.
1 Crankcase-to-crankcase-breather-
chamber hose
1 Disconnect.
2 Air-filter-to-crankcase-breather-cham-
ber hose
1 Disconnect.
3 Crankcase breather chamber 1
4 Starter motor lead 1 Disconnect.
5 Negative battery lead 1 Disconnect.
6 Crankcase breather chamber bracket 1
7 Starter motor 1
For installation, reverse the removal pro-
cedure.
