Yamaha XT660R S Service Manual

4 - 69
CHAS

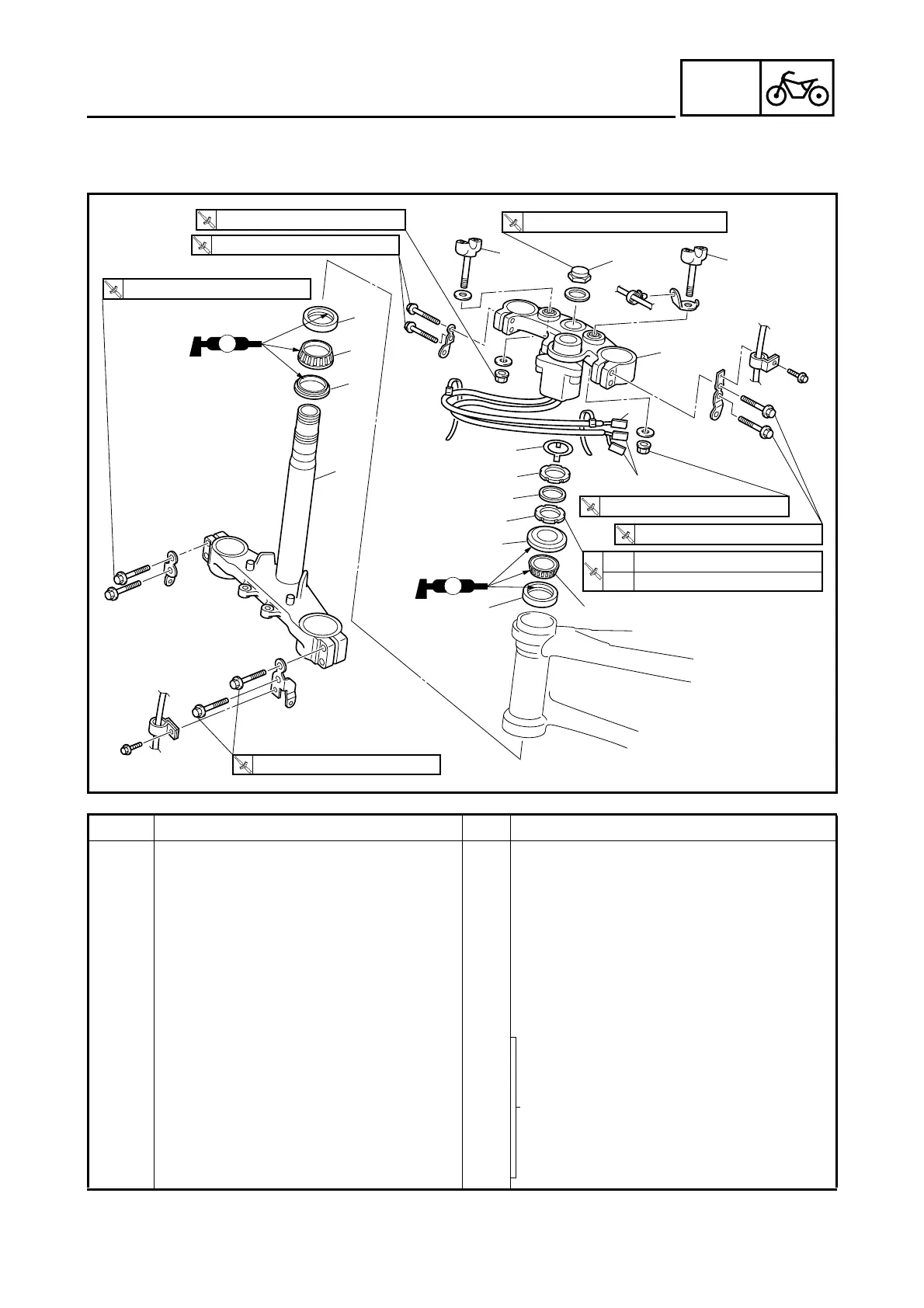

STEERING HEAD
EAS00675
STEERING HEAD
LOWER BRACKET
T
R
.
.
130 Nm (13.0 m
•
kg, 94 ft
•
lb)
T
R
.
.
1st 43 Nm (4.3 m
•
kg, 31 ft
•
lb)
2nd 7 Nm (0.7 m
•
kg, 5.1 ft
•
lb)
T
R
.
.
23 Nm (2.3 m
•
kg, 17 ft
•
Ib)
T
R
.
.
23 Nm (2.3 m
•
kg, 17 ft
•
Ib)
T
R
.
.
23 Nm (2.3 m
•
kg, 17 ft
•
Ib)
T
R
.
.
23 Nm (2.3 m
•
kg, 17 ft
•
Ib)
T
R
.
.
32 Nm (3.2 m
•
kg, 23 ft
•
Ib)
LS
LS
15
13
16
10
14
12
11
9
8
7
6
2
3
5
1
4
1
T
R
.
.
32 Nm (3.2 m
•
kg, 23 ft
•
Ib)
Order Job/Part Q’ty Remarks
Removing the lower bracket
Remove the parts in the order listed.
Front wheel Refer to “FRONT WHEEL AND BRAKE
DISC”.
Front fork legs Refer to “FRONT FORK”.
Handlebar Refer to “HANDLEBAR”.
1 Lower handlebar holder 2
2 Immobilizer unit coupler 1 Disconnect.
3 Main switch coupler 2 Disconnect.
4 Steering stem nut 1
Refer to “REMOVING THE LOWER
BRACKET” and “INSTALLING THE
STEERING HEAD”.
5 Upper bracket 1
6 Lock washer 1
7 Upper ring nut 1
8 Rubber washer 1
9 Lower ring nut 1
10 Lower bracket 1

Yamaha XT660R S Specifications

General

Displacement	660 cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition System	TCI
Starter System	Electric
Transmission System	5-speed
Final Drive	Chain
Front Suspension System	Telescopic forks
Front Tyre	90/90-21 M/C 54S
Rear Tyre	130/80-17 M/C 65S
Overall Width	865 mm
Overall Height	1, 230 mm
Seat Height	865 mm
Wheelbase	1, 505 mm
Wet Weight	181 kg
Fuel Tank Capacity	15 litres
Oil Tank Capacity	2.9 litres
Engine Type	Liquid-cooled, 4-stroke, single cylinder, SOHC
Maximum Power	48hp (35kW) @ 6, 000rpm
Frame	Steel diamond
Rear Suspension System	Swingarm, (link suspension)
Front Brake	Single 298mm disc, 2-piston caliper
Rear Brake	Single Disc, 245 mm
