6 - 8
COOL
WATER PUMP
EAS00468

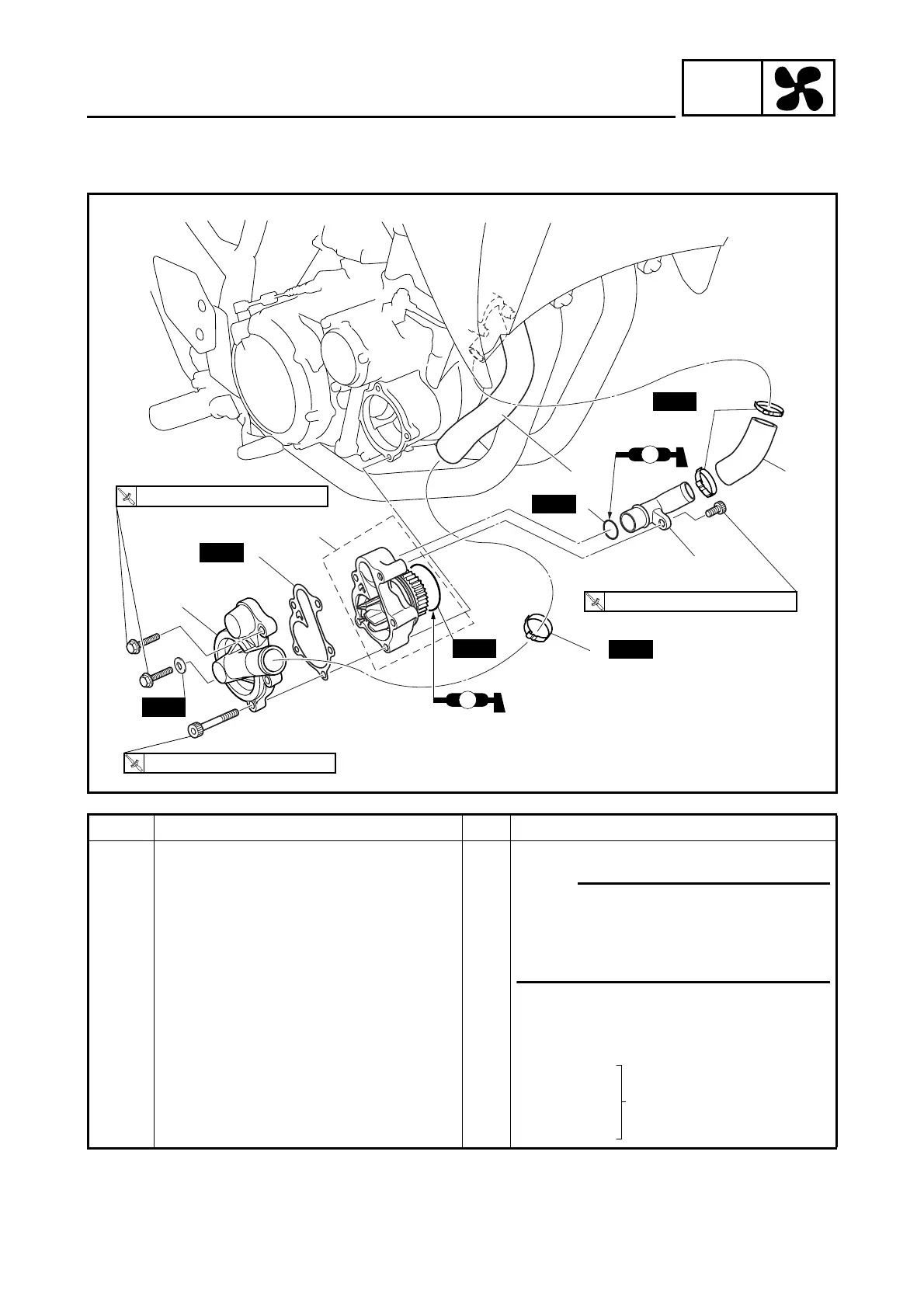

WATER PUMP
New
New
LS
New
New
New
LS
New
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
2
5
2
1
4
3
6
8
7
(3)
1
Order Job/Part Q’ty Remarks
Removing the water pump
Remove the parts in the order listed.
NOTE:
It is not necessary to remove the water
pump unless the coolant level is
extremely low or the coolant contains
engine oil.
Coolant Drain.
Refer to “CHANGING THE COOLANT” in
chapter 3.
1 Hose clamp 3
Refer to “INSTALLING
THE WATER PUMP”.
2 Radiator outlet hose 1 Disconnect.
3 Water pump cover 1
4Gasket 1
To Next Page
