Yamaha XT660R S Service Manual

7 - 32
FI
AIR INDUCTION SYSTEM
EAS00507
AIR INDUCTION SYSTEM
AIR INJECTION
The air induction system burns unburned
exhaust gases by injecting fresh air (second-
ary air) into the exhaust port, reducing the
emission of hydrocarbons.
When there is negative pressure at the
exhaust port, the reed valve opens, allowing
secondary air to flow into the exhaust port. The
required temperature for burning the unburned
exhaust gases is approximately 600 to 700 °C
(1,112 to 1,292 °F).
EAS00917

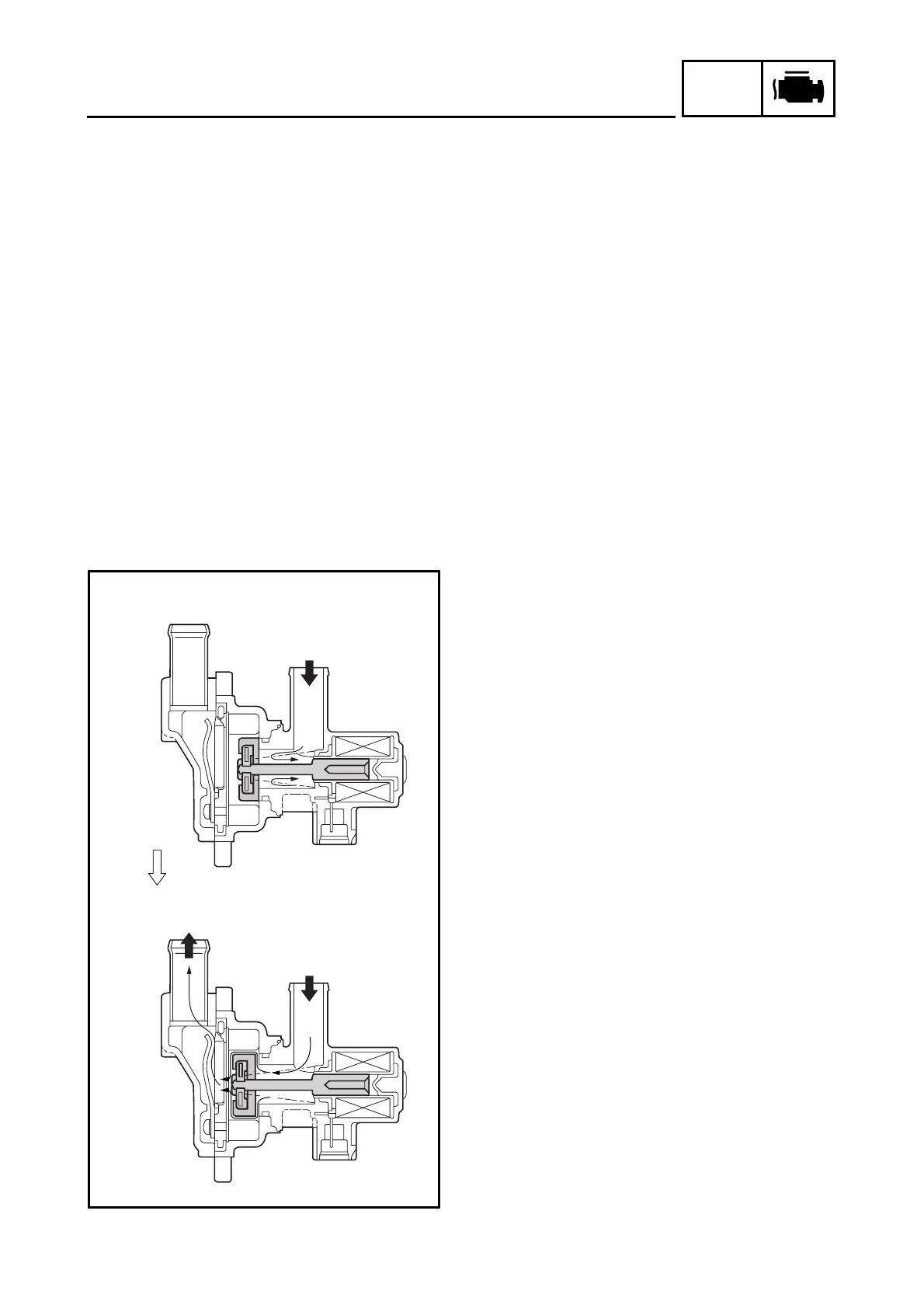

AIR CUT-OFF VALVE
The air cut-off valve is controlled by the signals
from the ECU in accordance with the combus-
tion conditions. Ordinarily, the air cut-off valve
opens to allow the air to flow during idle and
closes to cut-off the flow when the vehicle is
being driven. However, if the coolant tempera-
ture is below the specified value, the air cut-off
valve remains open and allows the air to flow
into the exhaust pipe until the temperature
becomes higher than the specified value.
È
From the air filter case
É
To the cylinder head
1
The air cut-off valve is closed.
2
The air cut-off valve is open.
È
É
È
1
2

Yamaha XT660R S Specifications

General

Displacement	660 cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition System	TCI
Starter System	Electric
Transmission System	5-speed
Final Drive	Chain
Front Suspension System	Telescopic forks
Front Tyre	90/90-21 M/C 54S
Rear Tyre	130/80-17 M/C 65S
Overall Width	865 mm
Overall Height	1, 230 mm
Seat Height	865 mm
Wheelbase	1, 505 mm
Wet Weight	181 kg
Fuel Tank Capacity	15 litres
Oil Tank Capacity	2.9 litres
Engine Type	Liquid-cooled, 4-stroke, single cylinder, SOHC
Maximum Power	48hp (35kW) @ 6, 000rpm
Frame	Steel diamond
Rear Suspension System	Swingarm, (link suspension)
Front Brake	Single 298mm disc, 2-piston caliper
Rear Brake	Single Disc, 245 mm
