Yamaha XT660R S Service Manual

5 - 37
ENG
CYLINDER AND PISTON
EAS00265
CHECKING THE PISTON PIN
1. Check:
• piston pin
Blue discoloration/grooves
→
Replace the
piston pin, and then check the lubrication
system.

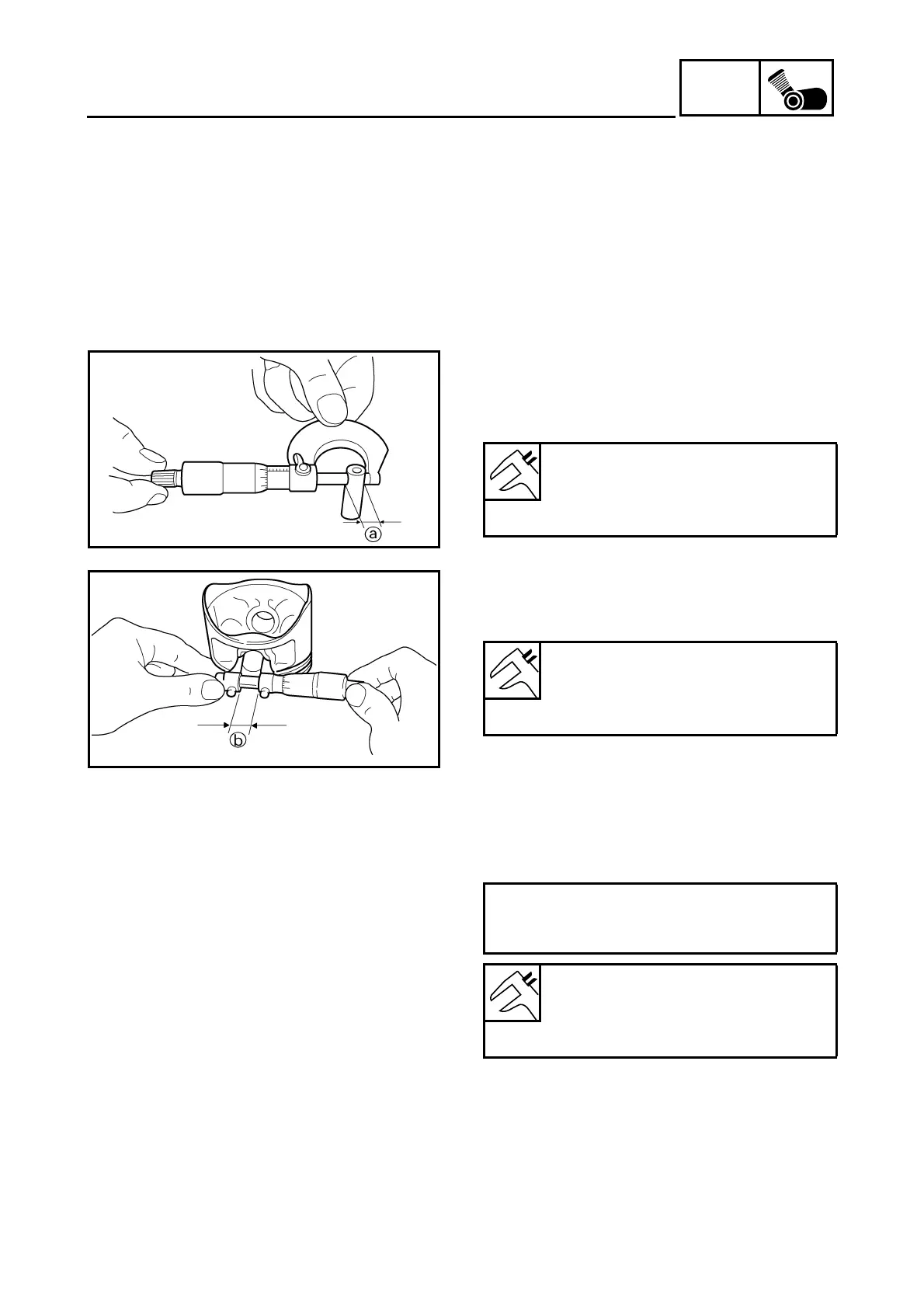

2. Measure:
• piston pin outside diameter
a
Out of specification
→
Replace the piston
pin.
Piston pin outside diameter
22.991 ~ 23.000 mm
(0.9052 ~ 0.9055 in)
<Limit>: 22.971 mm (0.9044 in)
3. Measure:
• piston pin bore inside diameter
b
Out of specification
→
Replace the piston.
Piston pin bore inside diameter
23.004 ~ 23.015 mm
(0.9057 ~ 0.9061 in)
<Limit>: 23.045 mm (0.9073 in)
4. Calculate:
• piston-pin-to-piston-pin-bore clearance
Out of specification
→
Replace the piston
pin and piston as a set.
Piston-pin-to-piston-pin-bore clearance =
Piston pin bore inside diameter b –
Piston pin outside diameter a
Piston-pin-to-piston clearance
0.004 ~ 0.024 mm
(0.0002 ~ 0.0009 in)
<Limit>: 0.074 mm (0.0029 in)

Yamaha XT660R S Specifications

General

Displacement	660 cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition System	TCI
Starter System	Electric
Transmission System	5-speed
Final Drive	Chain
Front Suspension System	Telescopic forks
Front Tyre	90/90-21 M/C 54S
Rear Tyre	130/80-17 M/C 65S
Overall Width	865 mm
Overall Height	1, 230 mm
Seat Height	865 mm
Wheelbase	1, 505 mm
Wet Weight	181 kg
Fuel Tank Capacity	15 litres
Oil Tank Capacity	2.9 litres
Engine Type	Liquid-cooled, 4-stroke, single cylinder, SOHC
Maximum Power	48hp (35kW) @ 6, 000rpm
Frame	Steel diamond
Rear Suspension System	Swingarm, (link suspension)
Front Brake	Single 298mm disc, 2-piston caliper
Rear Brake	Single Disc, 245 mm
