Yamaha XT660R S Service Manual

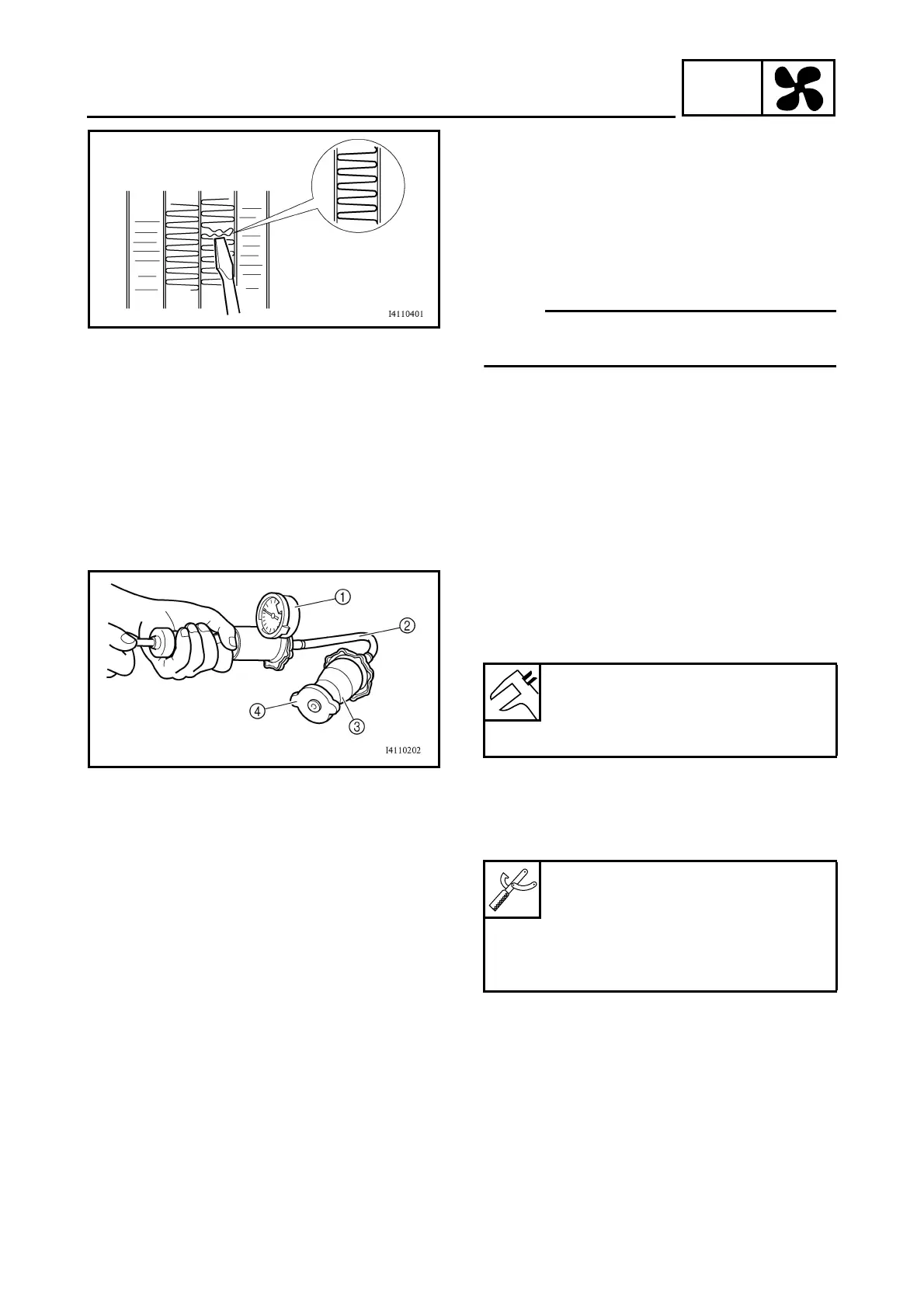

6 - 3
COOL
RADIATOR
EAS00455
CHECKING THE RADIATOR
1. Check:
• radiator fins
Obstruction
→
Clean.
Apply compressed air to the rear of the radi-
ator.
Damage
→
Repair or replace.
NOTE:
_
Straighten any flattened fins with a thin, flat-
head screwdriver.
2. Check:
• radiator hoses
Cracks/damage
→
Replace.
3. Measure:
• radiator cap opening pressure
Below the specified pressure
→
Replace
the radiator cap.
▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Install the radiator cap tester
1
and radiator
cap tester adaptor
2
and radiator cap
tester adaptor
3
to the radiator cap
4
.
b. Apply the specified pressure for ten sec-
onds and make sure there is no drop in
pressure.
▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
4. Check:
• radiator fan
Damage
→
Replace.
Malfunction
→
Check and repair.
Refer to “COOLING SYSTEM” in chapter 8.
Radiator cap opening pressure
110.0 ~ 140.0 kPa
(1.10 ~ 1.40 kg/cm
2
,
16.0 ~ 20.3 psi)
Radiator cap tester
90890-01325
Radiator cap tester adaptor
90890-01352
Radiator cap tester adaptor
90890-01497

Yamaha XT660R S Specifications

General

Displacement	660 cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition System	TCI
Starter System	Electric
Transmission System	5-speed
Final Drive	Chain
Front Suspension System	Telescopic forks
Front Tyre	90/90-21 M/C 54S
Rear Tyre	130/80-17 M/C 65S
Overall Width	865 mm
Overall Height	1, 230 mm
Seat Height	865 mm
Wheelbase	1, 505 mm
Wet Weight	181 kg
Fuel Tank Capacity	15 litres
Oil Tank Capacity	2.9 litres
Engine Type	Liquid-cooled, 4-stroke, single cylinder, SOHC
Maximum Power	48hp (35kW) @ 6, 000rpm
Frame	Steel diamond
Rear Suspension System	Swingarm, (link suspension)
Front Brake	Single 298mm disc, 2-piston caliper
Rear Brake	Single Disc, 245 mm
