Yamaha XT660R S Service Manual

4 - 82
CHAS
SWINGARM AND DRIVE CHAIN
EAS00703

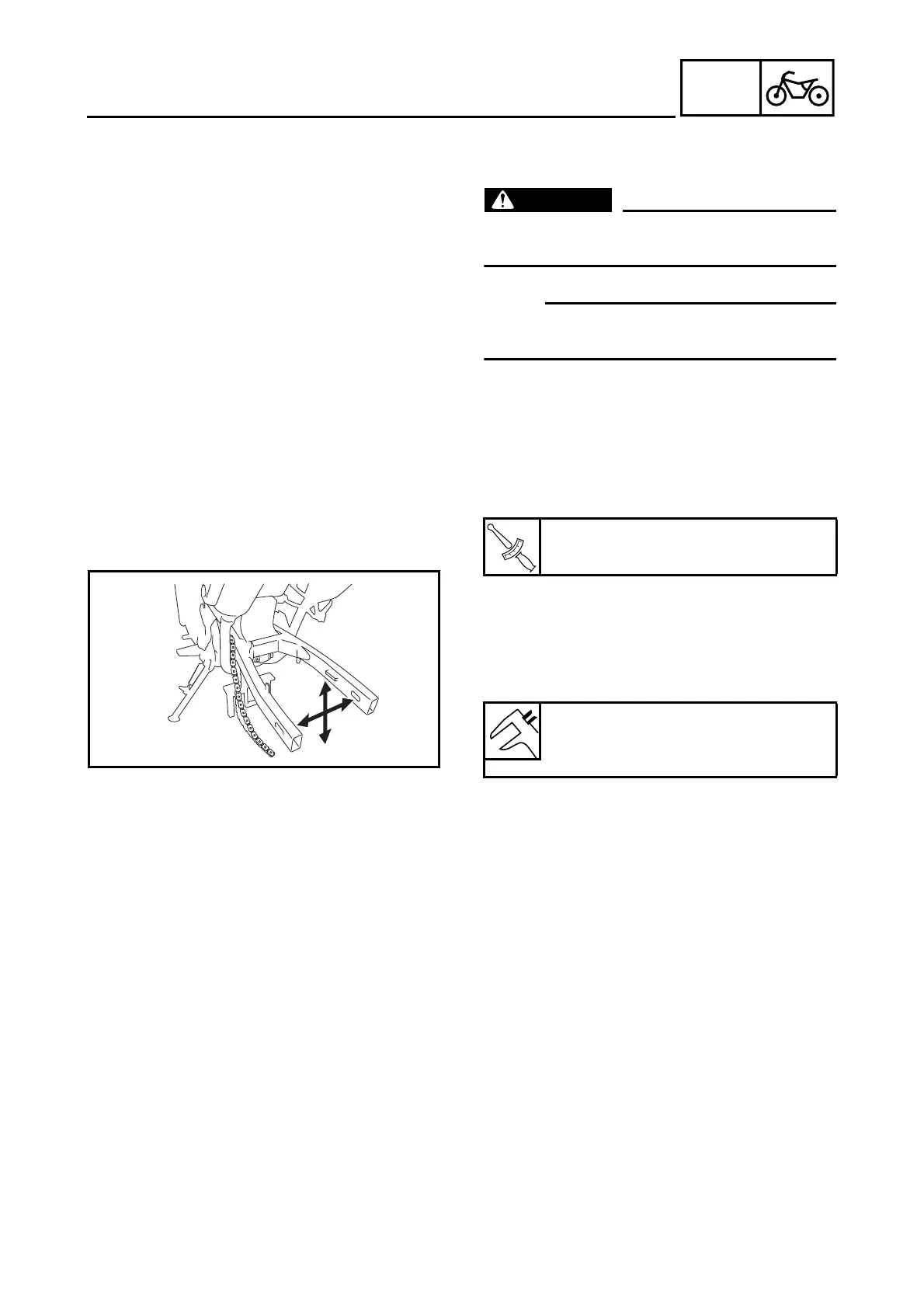

REMOVING THE SWINGARM
1. Stand the motorcycle on a level surface.
WARNING
_
Securely support the motorcycle so that
there is no danger of it falling over.
NOTE:
_
Place the motorcycle on a suitable stand so
that the rear wheel is elevated.
2. Measure:
• swingarm side play
• swingarm vertical movement
▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Measure the tightening torque of the pivot
shaft nut.
b. Measure the swingarm side play
È
by mov-
ing the swingarm from side to side.
c. If the swingarm side play is out of specifica-
tion, check the spacers, bearings, and dust
covers.
d. Check the swingarm vertical movement
É
by moving the swingarm up and down.
If swingarm vertical movement is not
smooth or if there is binding, check the
spacers, bearings, and dust covers.
▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
3. Remove:
• swingarm shaft nut
• pivot shaft
• swingarm
T
R
.
.
Pivot shaft nut
92 Nm (9.2 m · kg, 66 ft · lb)
Swingarm side play (at the end of
the swingarm)
1.0 mm (0.04 in)
È
É
