Yamaha XT660R S Service Manual

7 - 26
FI
THROTTLE BODY ASSEMBLY
EAS00912
CHECKING THE FUEL INJECTOR
1. Check:
• fuel injector
Damage
→
Replace.
2. Check:
• fuel injector resistance
▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Disconnect the injection wire harness cou-
pler from the fuel injector.

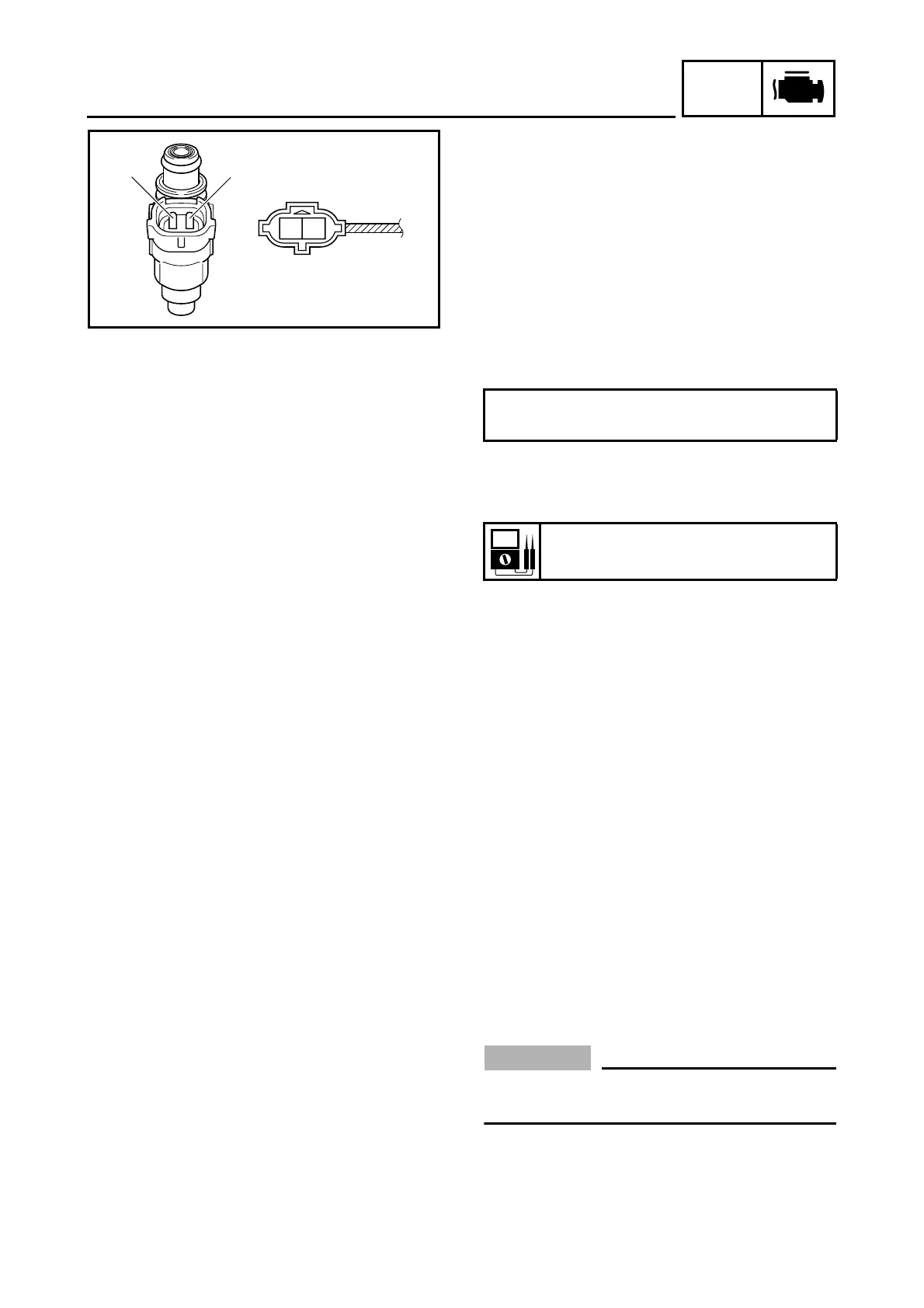

b. Connect the pocket tester (
Ω ×
1) to the fuel
injector terminal as shown.
c. Measure the fuel injector resistance.
Out of specification
→
Replace the fuel
injector.
▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
Positive tester probe → red/black 1
Negative tester probe → red/blue 2
Fuel injector resistance
12 Ω at 20 °C (68 °F)
R/L R/B
1
2
EAS00913
CHECKING THE THROTTLE BODY
1. Check:
• throttle body
Cracks/damage
→
Replace the throttle
body.
2. Check:
• fuel passages
Obstructions
→
Clean.
▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Wash the throttle body in a petroleum-
based solvent
CAUTION:
Do not use any caustic carburetor cleaning
solution.
b. Blow out all of the passages with com-
pressed air.
▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲

Yamaha XT660R S Specifications

General

Displacement	660 cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition System	TCI
Starter System	Electric
Transmission System	5-speed
Final Drive	Chain
Front Suspension System	Telescopic forks
Front Tyre	90/90-21 M/C 54S
Rear Tyre	130/80-17 M/C 65S
Overall Width	865 mm
Overall Height	1, 230 mm
Seat Height	865 mm
Wheelbase	1, 505 mm
Wet Weight	181 kg
Fuel Tank Capacity	15 litres
Oil Tank Capacity	2.9 litres
Engine Type	Liquid-cooled, 4-stroke, single cylinder, SOHC
Maximum Power	48hp (35kW) @ 6, 000rpm
Frame	Steel diamond
Rear Suspension System	Swingarm, (link suspension)
Front Brake	Single 298mm disc, 2-piston caliper
Rear Brake	Single Disc, 245 mm
