Yamaha XT660R S Service Manual

5 - 81
ENG

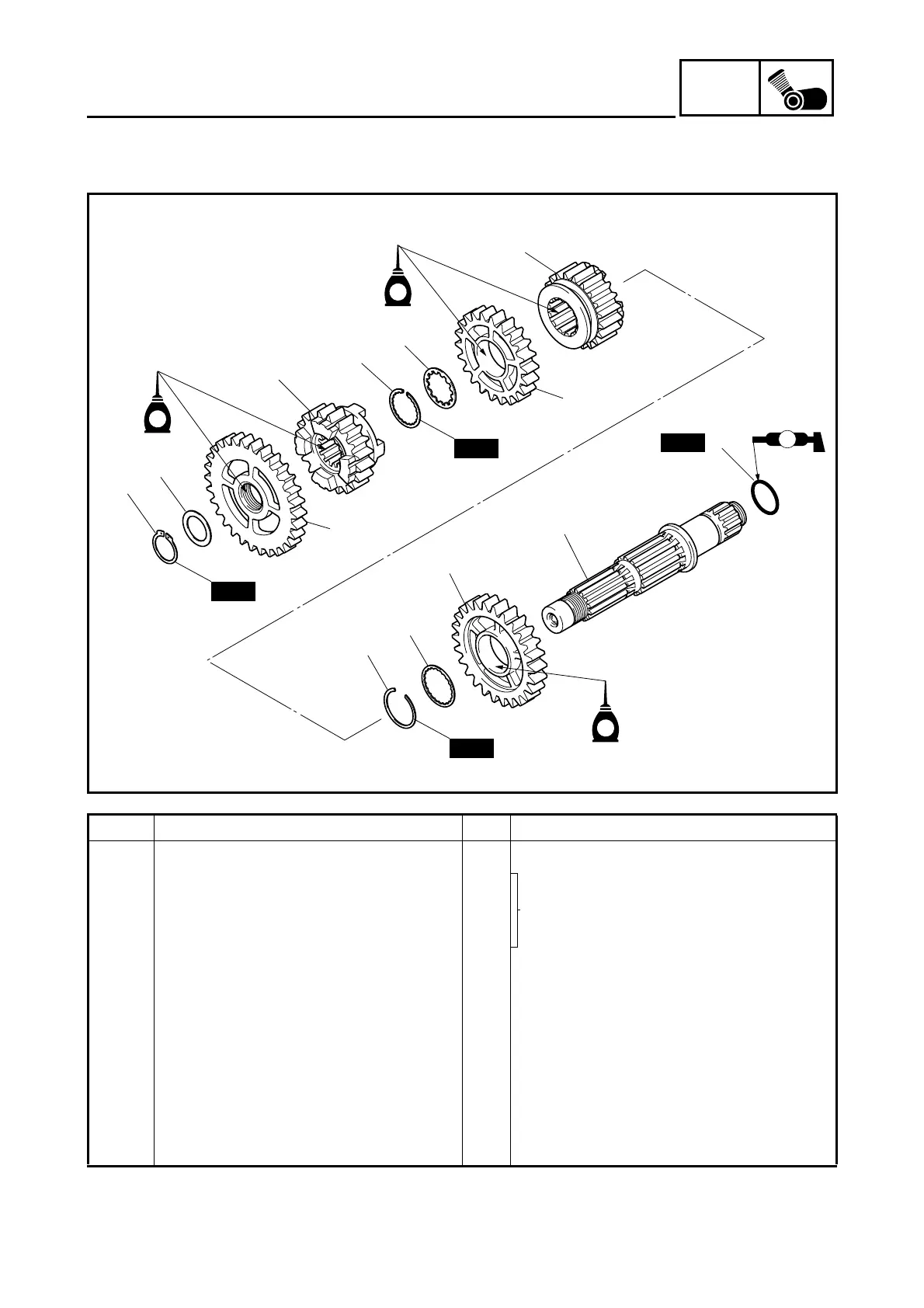

TRANSMISSION
DRIVE AXLE
M
M
M
New
New
New
New
LS
1
5
5
2
6
6
3
4
7
8
9
0
A
Order Job/Part Q’ty Remarks
Disassembling the drive axle Remove the parts in the order listed.
1 Circlip 1
Refer to “ASSEMBLING THE MAIN
AXLE AND DRIVE AXLE”.
2 Washer 1
3 1st wheel gear 1
4 4th wheel gear 1
5 Circlip 2
6 Toothed washer 2
7 3rd wheel gear 1
8 5th wheel gear 1
9 2nd wheel gear 1
0 Drive axle 1
A O-ring 1
For assembly, reverse the disassembly
procedure.

Yamaha XT660R S Specifications

General

Displacement	660 cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition System	TCI
Starter System	Electric
Transmission System	5-speed
Final Drive	Chain
Front Suspension System	Telescopic forks
Front Tyre	90/90-21 M/C 54S
Rear Tyre	130/80-17 M/C 65S
Overall Width	865 mm
Overall Height	1, 230 mm
Seat Height	865 mm
Wheelbase	1, 505 mm
Wet Weight	181 kg
Fuel Tank Capacity	15 litres
Oil Tank Capacity	2.9 litres
Engine Type	Liquid-cooled, 4-stroke, single cylinder, SOHC
Maximum Power	48hp (35kW) @ 6, 000rpm
Frame	Steel diamond
Rear Suspension System	Swingarm, (link suspension)
Front Brake	Single 298mm disc, 2-piston caliper
Rear Brake	Single Disc, 245 mm
