Yamaha XT660R S Service Manual

4 - 74
CHAS

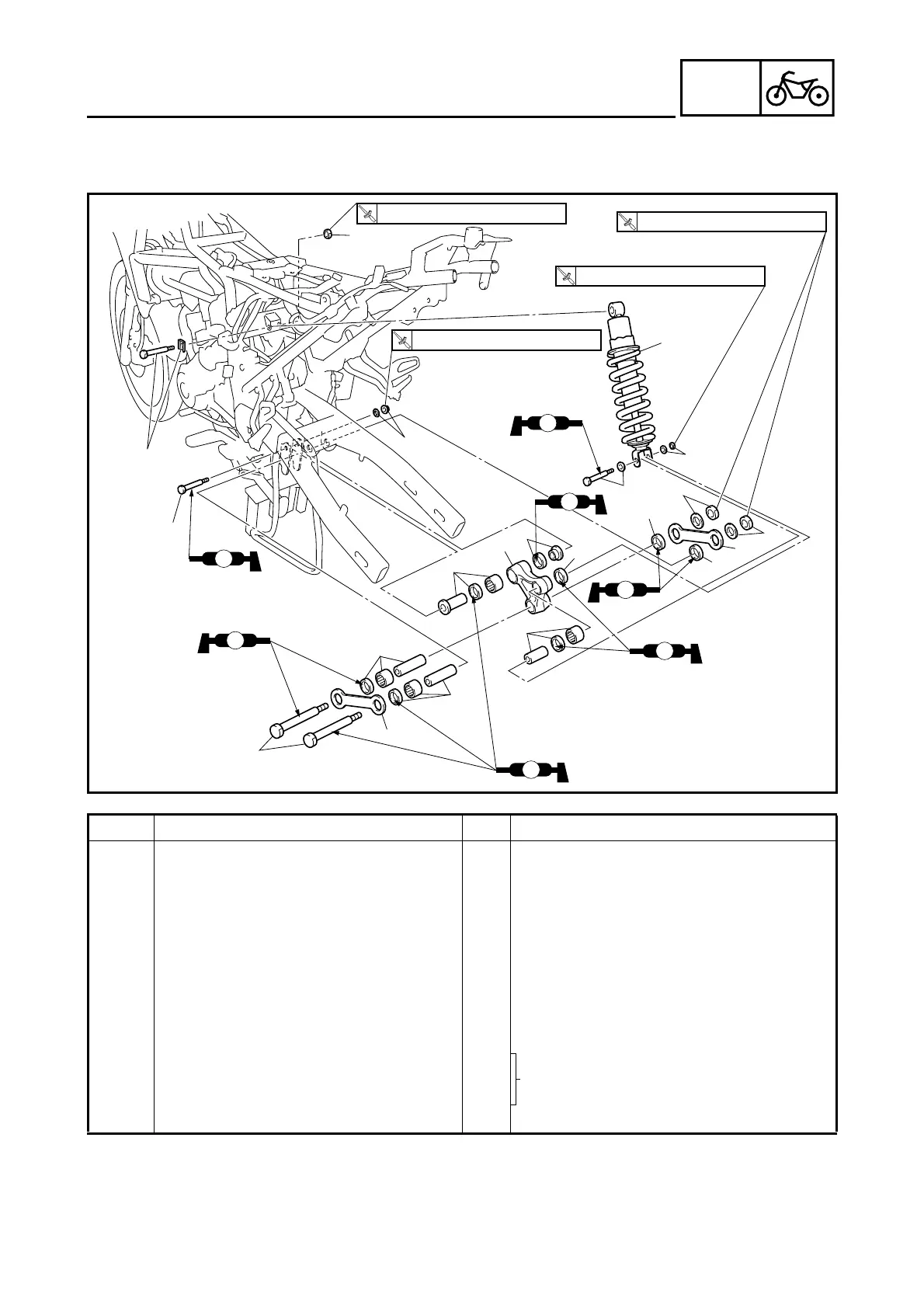

REAR SHOCK ABSORBER ASSEMBLY
EAS00685
REAR SHOCK ABSORBER ASSEMBLY
LS
LS
LS
LS
LS
LS
LS
T
R
.
.
59 Nm (5.9 m
•
kg, 43 ft
•
Ib)
T
R
.
.
59 Nm (5.9 m
•
kg, 43 ft
•
Ib)
T
R
.
.
59 Nm (5.9 m
•
kg, 43 ft
•
Ib)
T
R
.
.
42 Nm (4.2 m
•
kg, 30 ft
•
Ib)
1
5
9
1
1
2
2
6
6
7
7
8
3
10
9
11
11
10
3
4
4
Order Job/Part Q’ty Remarks
Removing the rear shock absorber
assembly
Remove the parts in the order listed.
Seat/side panels (left and right)/rear
cover
Refer to “COWLING AND COVER” in
chapter 3.
Fuel tank Refer to “FUEL TANK” in chapter 3.
Rear fender/air filter case Refer to “AIR FILTER CASE” in chapter
3.
Rear wheel Refer to “REAR WHEEL, BRAKE DISC,
AND REAR WHEEL SPROCKET”.
1 Self-locking nut/washer/bolt 2/2/2 Refer to “REMOVING THE REAR
SHOCK ABSORBER ASSEMBLY” and
“INSTALLING THE REAR SHOCK
ABSORBER ASSEMBLY”.
2 Connecting arm 2
3 Oil seal/bearing/spacer 2/1/1
