Yamaha XT660R S - Rocker Arms and Camshaft

5 - 16
ENG

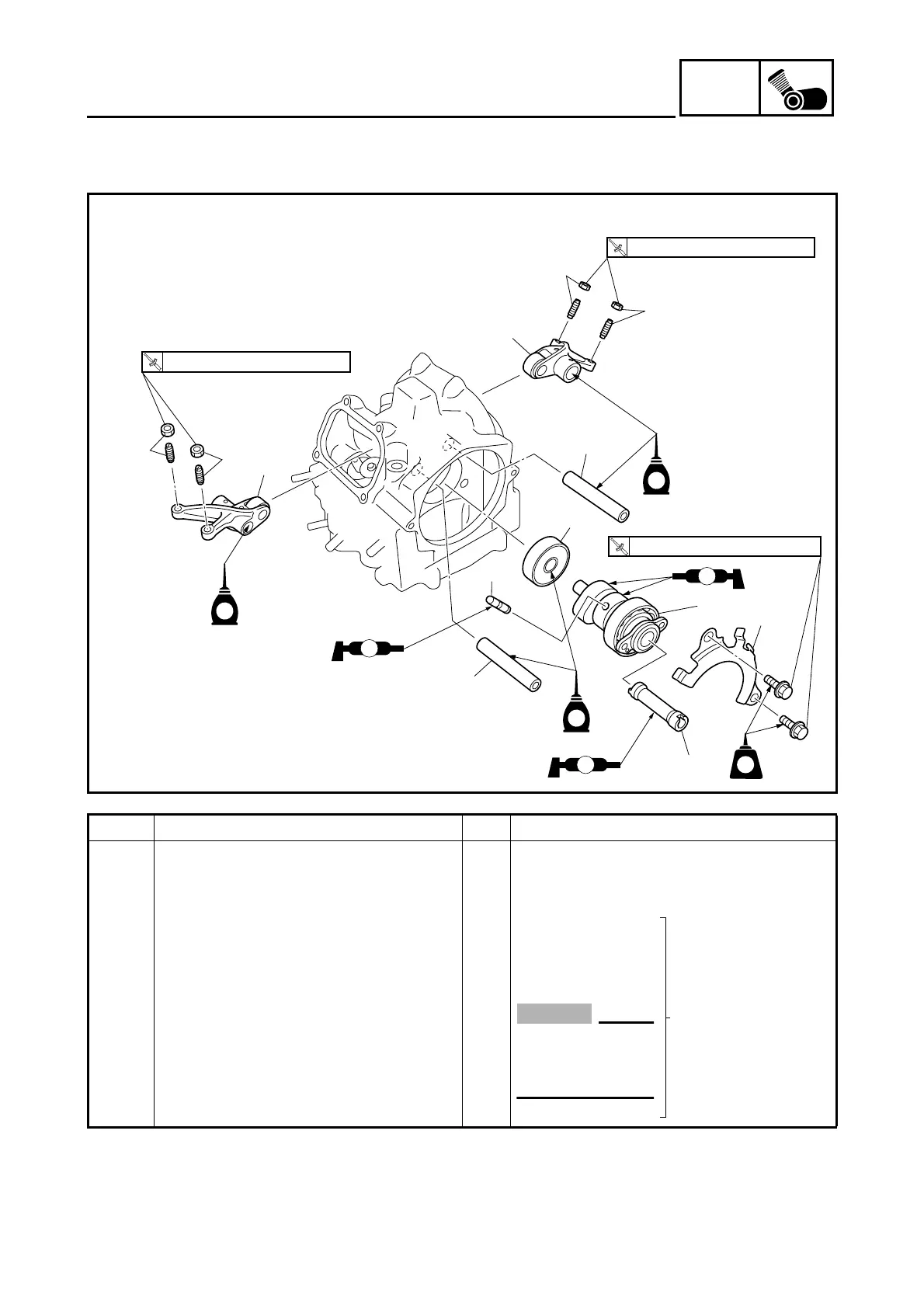

ROCKER ARMS AND CAMSHAFT
E
E
E
M
LT
T
R
.
.
14 Nm (1.4 m
•
kg, 10 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
14 Nm (1.4 m
•
kg, 10 ft
•
Ib)
4
4
3
3
2
8
2
7
5
6
1
4
4
M
M
Order Job/Part Q’ty Remarks
Removing the rocker arms and cam-
shaft
Remove the parts in the order listed.
Cylinder head Refer to “CYLINDER HEAD”.
1 Bearing retainer 1
Refer to “REMOV-
ING THE ROCKER
ARMS AND CAM-
SHAFT” and
“INSTALLING THE
CAMSHAFT AND
ROCKER ARMS”.
2 Rocker arm shaft 2
3 Rocker arm 2
4 Locknut/valve adjuster 4/4
5 Camshaft 1
CAUTION:
Do not disas-
semble the cam-
shaft assembly.
6 Decompressor lever 1
ROCKER ARMS AND CAMSHAFT
