Yamaha XT660R S Service Manual

7 - 28
FI
EAS00819
CHECKING THE FUEL PUMP
WARNING
_
Gasoline is extremely flammable and under
certain circumstances there can be a dan-
ger of an explosion or fire. Be extremely
careful and note the following points:
• Stop the engine before refueling.
• Do not smoke, and keep away from open
flames, sparks, or any other source of
fire.
• If you do accidentally spill gasoline, wipe
it up immediately with dry rags.
• If gasoline touches the engine when it is
hot, a fire may occur. Therefore, make
sure the engine is completely cool before
performing the following test.

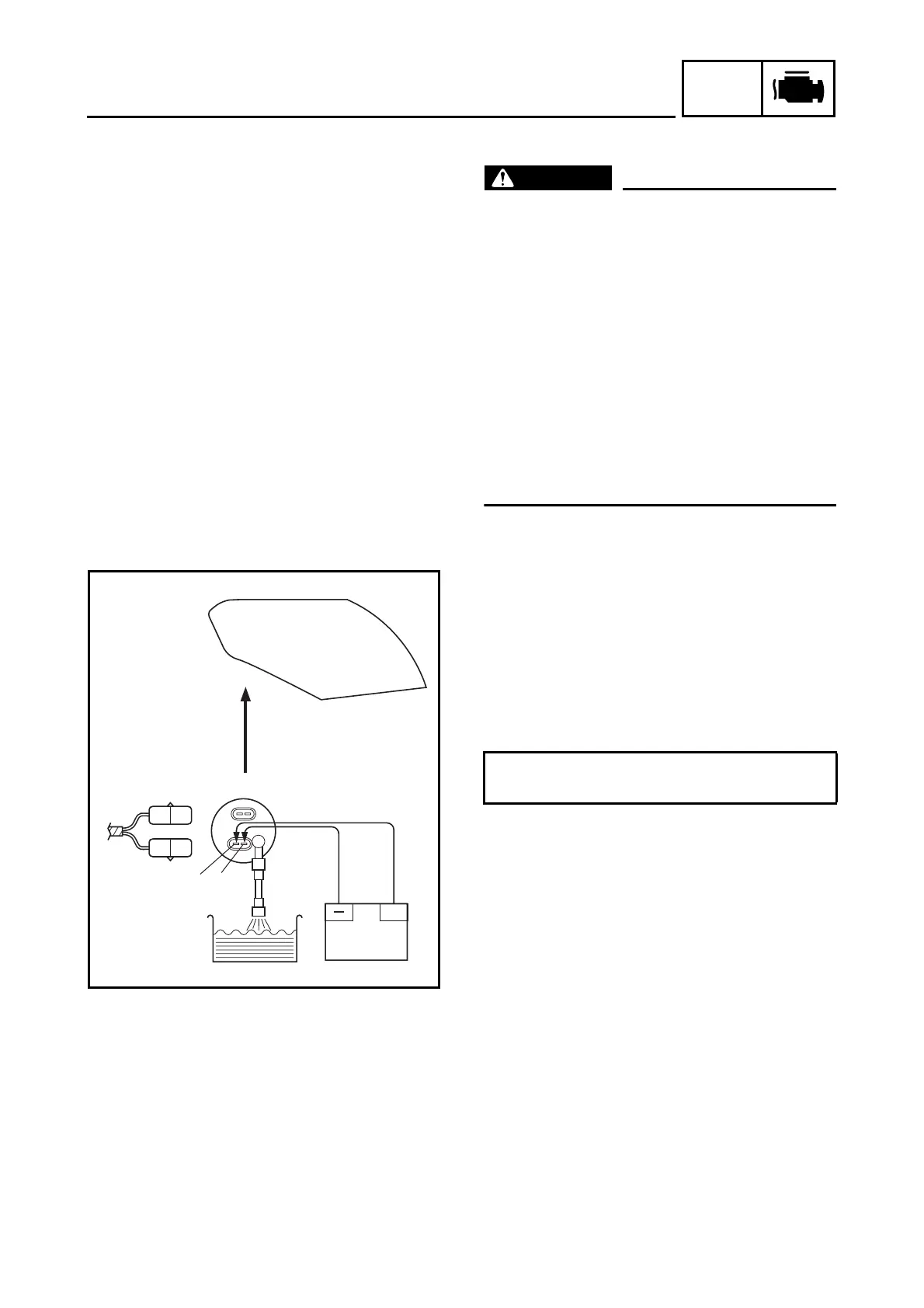

1. Check:
• fuel pump operation
▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Fill the fuel tank.
b. Put the end of the fuel hose into an open
container.
c. Connect a battery (DC 12 V) to the fuel
pump coupler as shown.
d. If fuel flows out of the fuel hose, the fuel
pump is OK. If fuel does not flow, replace
the fuel pump.
▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
Positive battery lead → red/blue 1
Negative battery lead → black 2
B
R/L
G/W
B
+
1
2
THROTTLE BODY ASSEMBLY

Yamaha XT660R S Specifications

General

Displacement	660 cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition System	TCI
Starter System	Electric
Transmission System	5-speed
Final Drive	Chain
Front Suspension System	Telescopic forks
Front Tyre	90/90-21 M/C 54S
Rear Tyre	130/80-17 M/C 65S
Overall Width	865 mm
Overall Height	1, 230 mm
Seat Height	865 mm
Wheelbase	1, 505 mm
Wet Weight	181 kg
Fuel Tank Capacity	15 litres
Oil Tank Capacity	2.9 litres
Engine Type	Liquid-cooled, 4-stroke, single cylinder, SOHC
Maximum Power	48hp (35kW) @ 6, 000rpm
Frame	Steel diamond
Rear Suspension System	Swingarm, (link suspension)
Front Brake	Single 298mm disc, 2-piston caliper
Rear Brake	Single Disc, 245 mm
