Yamaha XT660R S Service Manual

5 - 78
ENG

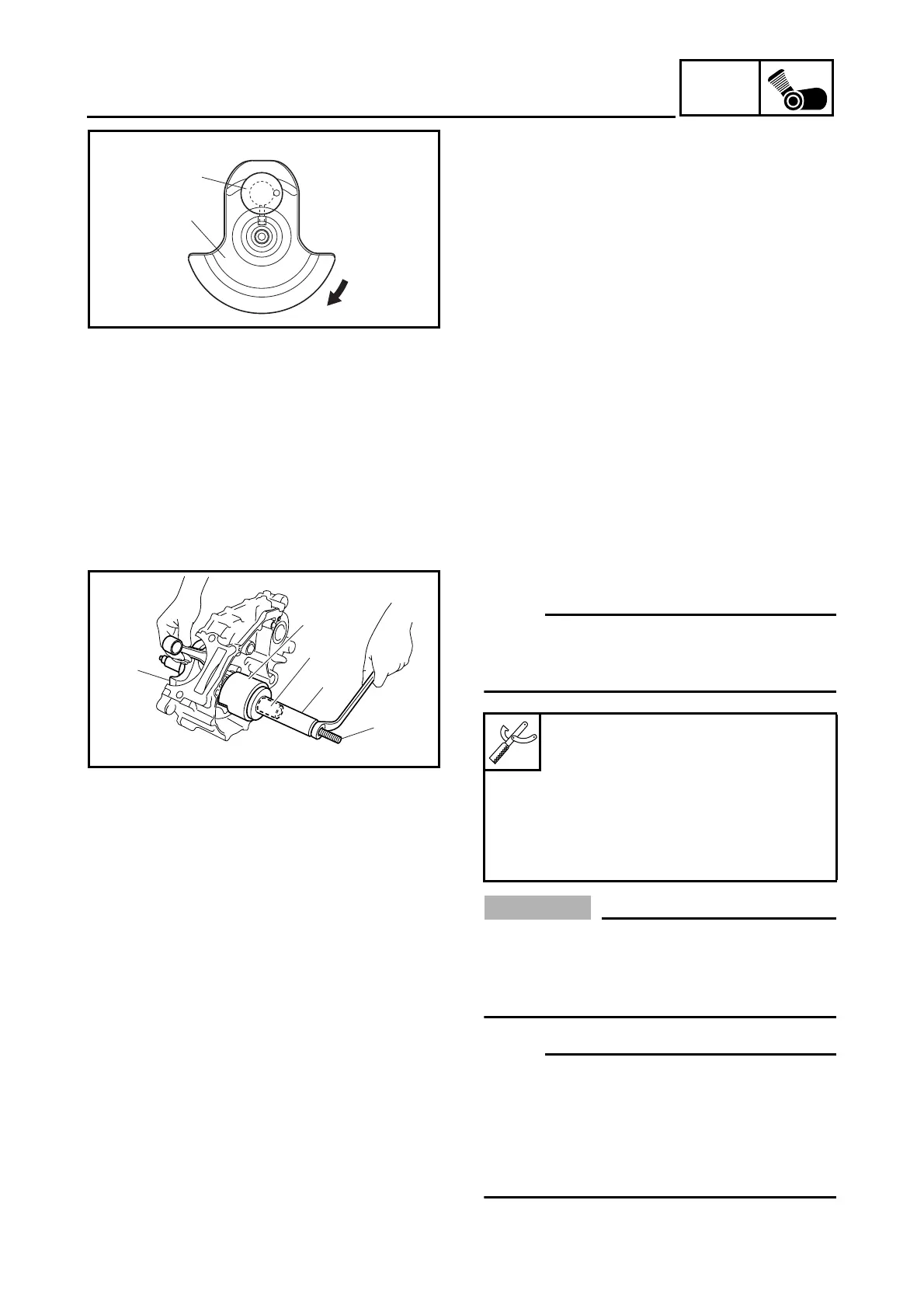

CRANKSHAFT
▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. The crankshaft 1 and the crankshaft pin 2
oil passages must be properly intercon-
nected with a tolerance of less than 1 mm
(0.04 in).
▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
4. Check:
• crankshaft sprocket
Damage/wear → Replace the crankshaft.
• bearing
Cracks/damage/wear → Replace the crank-
shaft.
5. Check:
• crankshaft journal
Scratches/wear → Replace the crankshaft.
• crankshaft journal oil passage
Obstruction → Blow out with compressed
air.
EAS00408
INSTALLING THE CRANKSHAFT
1. Install:
• crankshaft 1
NOTE:
_
Install the crankshaft with the crankshaft
installer pot, crankshaft installer bolt, adapter
and spacer (crankshaft installer).
CAUTION:
_
To avoid scratching the crankshaft and to
ease the installation procedure, lubricate
the oil seal lips with lithium-soap-based
grease and each bearing with engine oil.
NOTE:
_
Hold the connecting rod at the top dead center
(TDC) on the compression stroke with one
hand while turning the nut of the crankshaft
installer bolt with the other. Turn the crankshaft
installer bolt until the crankshaft bottoms
against the bearing.
Crankshaft installer pot 2
90890-01274
Crankshaft installer bolt 3
90890-01275
Adapter 4
90890-04130
Spacer (crankshaft installer) 5
90890-04144
1
2
5
4
2
3
1

Yamaha XT660R S Specifications

General

Displacement	660 cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition System	TCI
Starter System	Electric
Transmission System	5-speed
Final Drive	Chain
Front Suspension System	Telescopic forks
Front Tyre	90/90-21 M/C 54S
Rear Tyre	130/80-17 M/C 65S
Overall Width	865 mm
Overall Height	1, 230 mm
Seat Height	865 mm
Wheelbase	1, 505 mm
Wet Weight	181 kg
Fuel Tank Capacity	15 litres
Oil Tank Capacity	2.9 litres
Engine Type	Liquid-cooled, 4-stroke, single cylinder, SOHC
Maximum Power	48hp (35kW) @ 6, 000rpm
Frame	Steel diamond
Rear Suspension System	Swingarm, (link suspension)
Front Brake	Single 298mm disc, 2-piston caliper
Rear Brake	Single Disc, 245 mm
