3 - 5
CHK
ADJ
EAS00040

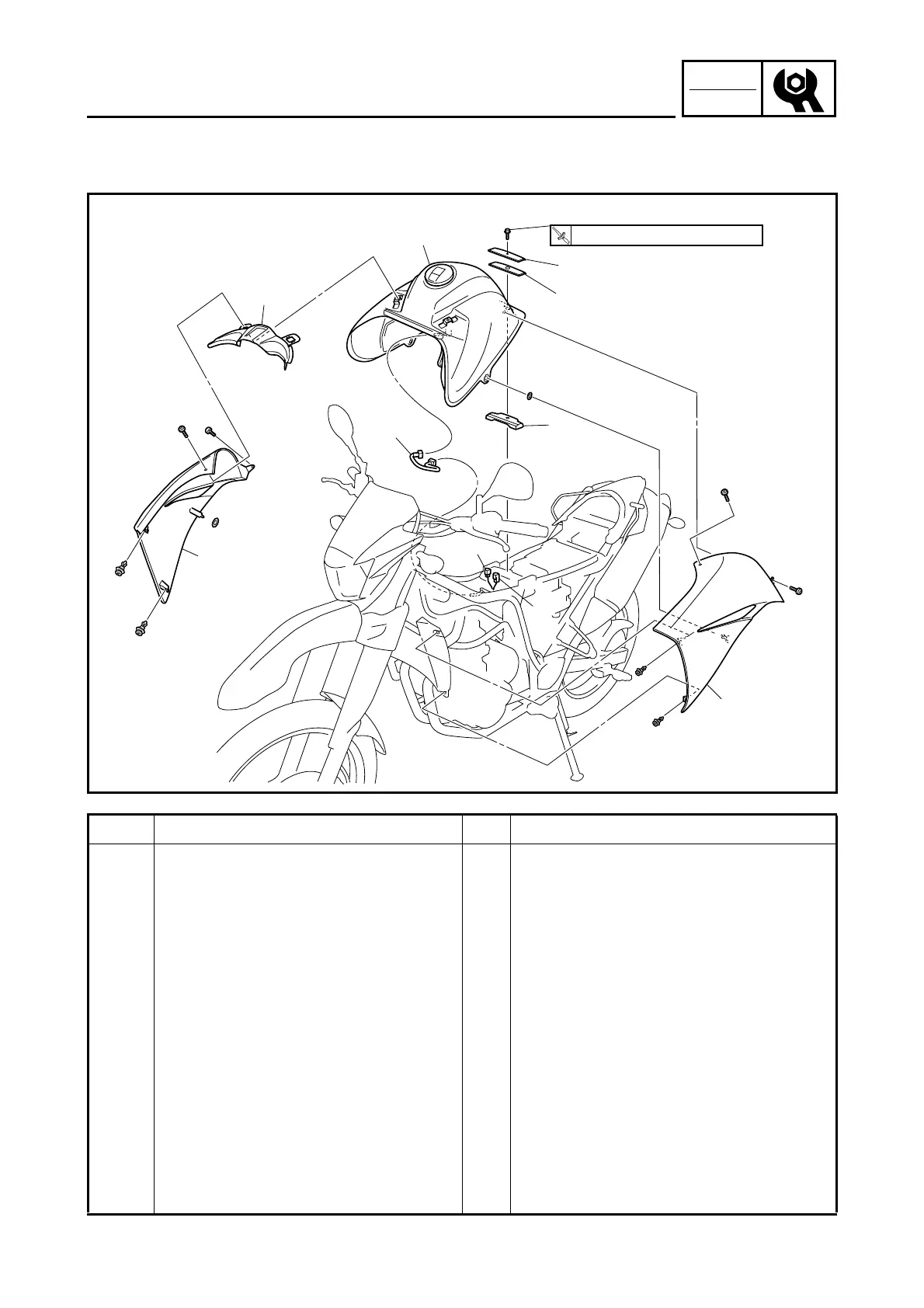

FUEL TANK
T
R
.
.
10 Nm (1.0 m
kg, 7.2 ft
Ib)
1
7
6
8
10
5
4
9
3
2
Order Job/Part
Qty Remarks
Removing the fuel tank
Remove the parts in the order listed.
Seat/side panels (left and right) Refer to COWLING AND COVER.
Fuel Drain.
1 Fuel tank left side cover 1
2 Fuel tank right side cover 1
3 Intake air guide 1
4 Fuel tank plate 1
5Damper 1 1
6 Fuel pump coupler 1 Disconnect.
7 Fuel sender coupler 1 Disconnect.
8 Fuel hose 1 Refer to REMOVING THE FUEL TANK
and INSTALLING THE FUEL HOSE.
9 Fuel tank 1
10 Damper 2 1
For installation, reverse the removal pro-
cedure.
FUEL TANK

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Yamaha XT660R S and is the answer not in the manual?

Yamaha XT660R S Specifications

General IconGeneral
Displacement660 cc
Bore x Stroke100.0 mm x 84.0 mm
Compression Ratio10.0:1
Fuel SystemFuel Injection
Ignition SystemTCI
Starter SystemElectric
Transmission System5-speed
Final DriveChain
Front Suspension SystemTelescopic forks
Front Tyre90/90-21 M/C 54S
Rear Tyre130/80-17 M/C 65S
Overall Width865 mm
Overall Height1, 230 mm
Seat Height865 mm
Wheelbase1, 505 mm
Wet Weight181 kg
Fuel Tank Capacity15 litres
Oil Tank Capacity2.9 litres
Engine TypeLiquid-cooled, 4-stroke, single cylinder, SOHC
Maximum Power48hp (35kW) @ 6, 000rpm
FrameSteel diamond
Rear Suspension SystemSwingarm, (link suspension)
Front BrakeSingle 298mm disc, 2-piston caliper
Rear BrakeSingle Disc, 245 mm
