Yamaha XT660R S Service Manual

4 - 49
CHAS
FRONT AND REAR BRAKES
EAS00642

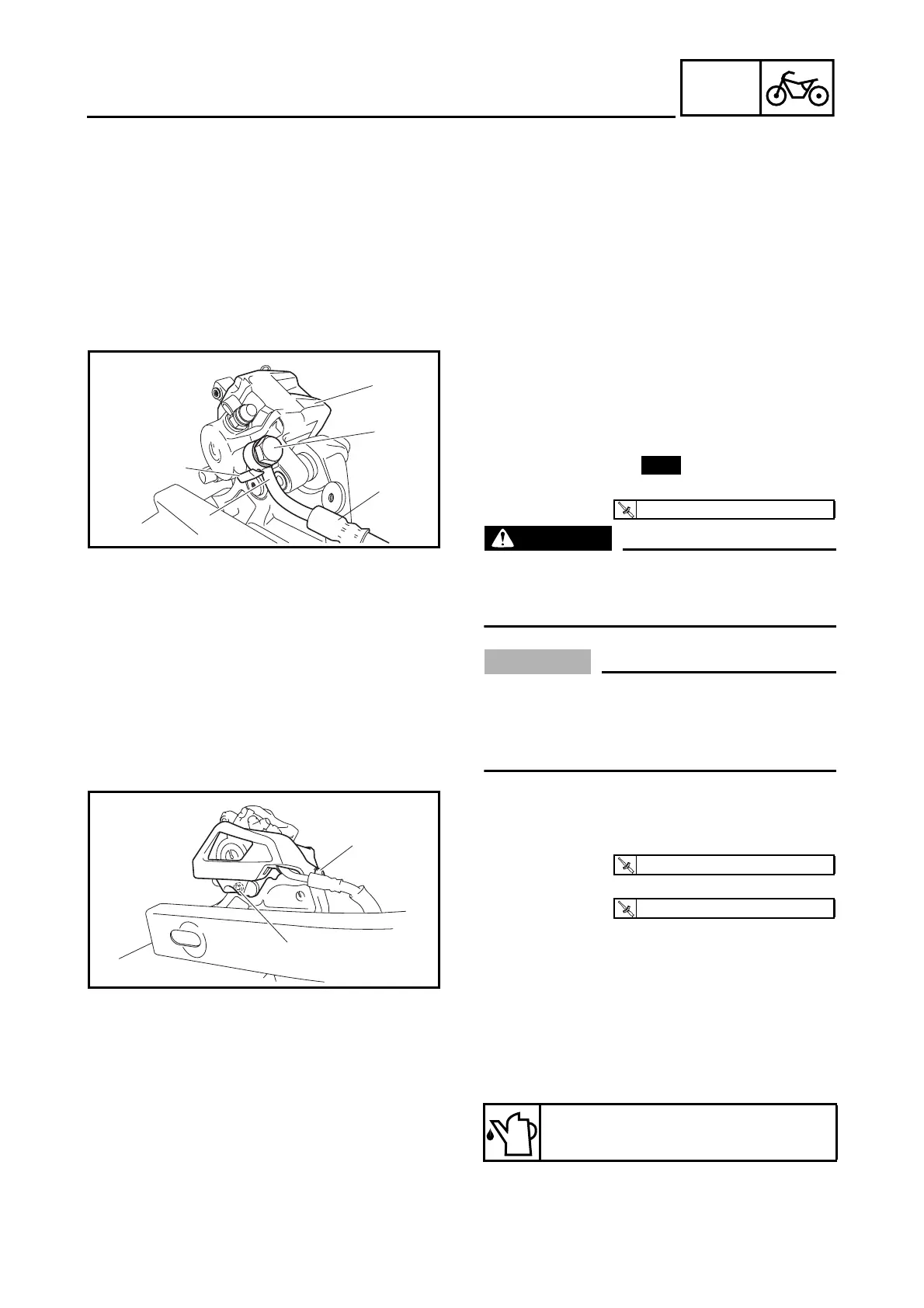

INSTALLING THE REAR BRAKE CALIPER
1. Install:
• brake caliper springs
• brake pads
• brake pad pin
• brake pad clip
Refer to “REAR BRAKE PADS”.
2. Install:
• brake caliper
• rear wheel
Refer to “REAR WHEEL, BRAKE DISC,
AND REAR WHEEL SPROCKET”.
• copper washers
• brake hose
1
• union bolt
2
WARNING
_
Proper brake hose routing is essential to
insure safe motorcycle operation. Refer to
“CABLE ROUTING” in chapter 2.
CAUTION:
_
When installing the brake hose onto the
brake caliper 3, make sure the brake pipe
a touches the projection b on the brake
caliper.
3. Install:
• brake caliper protector
• brake caliper protector bolt
1
• brake caliper protector bolt
2
3
2
1
a
b
New
T
R
.
.
30 Nm (3.0 m · kg, 22 ft · lb)
1
2
T
R
.
.
7 Nm (0.7 m · kg, 5.1 ft · lb)
T
R
.
.
4 Nm (0.4 m · kg, 2.9 ft · lb)
4. Fill:
• brake fluid reservoir
(with the specified amount of the recom-
mended brake fluid)
Recommended brake fluid
DOT 4
