Startup Procedure and Test Run
4
4.5 Start-up Procedures
YASKAWA SIEPC71061753C GA500 Technical Manual 133

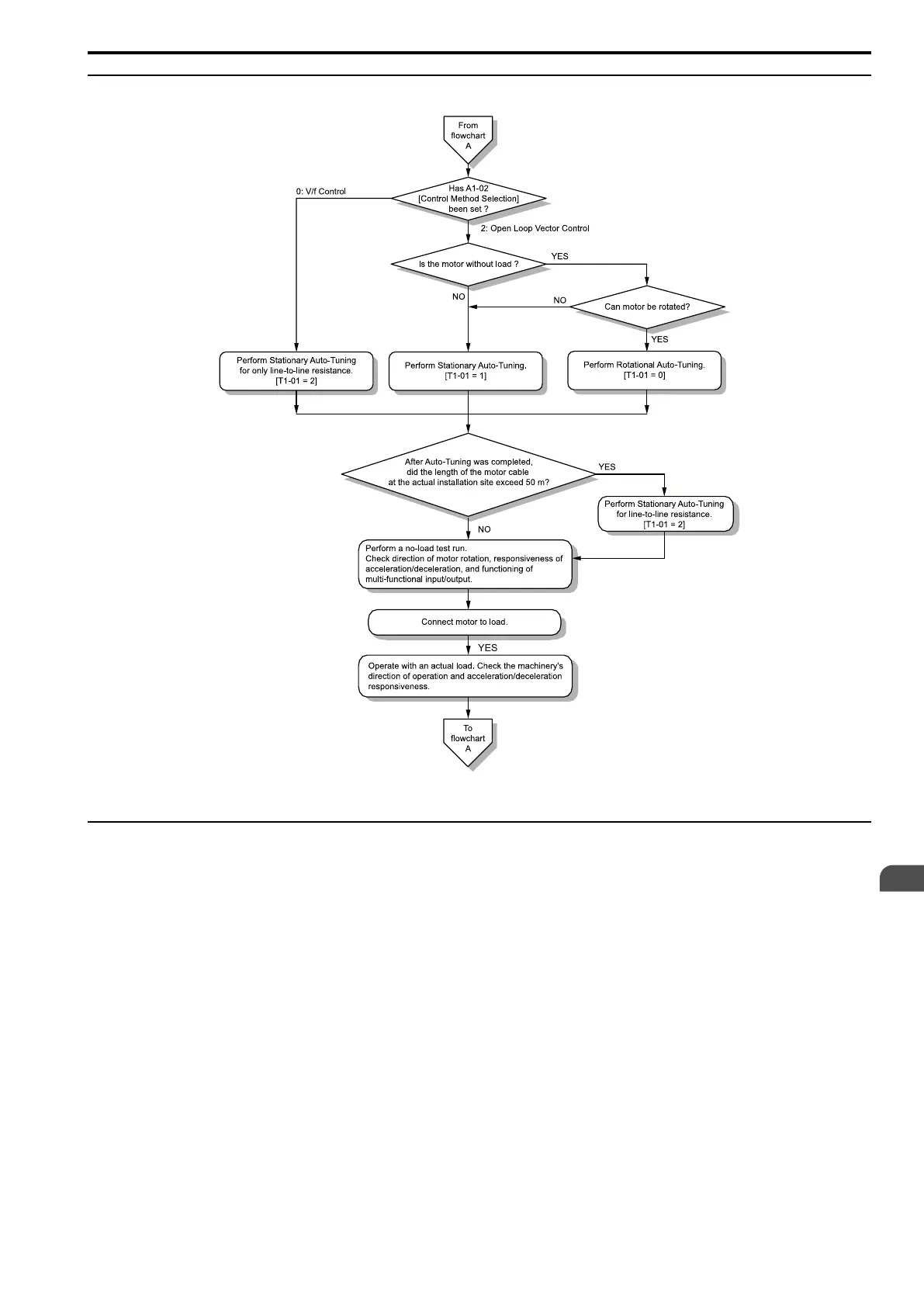

◆ Sub-Chart A-1: Induction Motor Auto-Tuning and Test Run Procedure
Figure 4.13 Induction Motor Auto-Tuning and Test Run Procedure
◆ Sub-Chart A-2: PM Motor Auto-Tuning and Test Run Procedure
Sub-Chart A-2 gives the basic steps to start up the drive for a PM motor.
WARNING! Crush Hazard. Test the system to make sure that the drive operates safely after you wire the drive and set
parameters. If you do not test the system, it can cause damage to equipment or serious injury or death.
To Next Page
