12.9 L: Protection Functions
YASKAWA SIEPC71061753C GA500 Technical Manual 691
12.9 L: Protection Functions
L parameters set the following functions.
• Motor Overload Protection
• Operation During Momentary Power Loss
• Stall Prevention
• Speed Detection
• Auto Restart
• Detection of Overtorque/Undertorque
• Torque Limit
• Hardware Protection
◆ L1: Motor Protection
L1 parameters set the motor overload protection function.
■ Motor Protection Using Positive Temperature Coefficient (PTC) Thermistors
Connect the PTC thermistor input from the motor to analog input terminal on the drive.
The temperature resistance characteristics of three PTC thermistors in the motor stator winding protect the motor
from overheat.
A PTC thermistor must have the characteristics shown in Figure 12.107 for each motor phase.

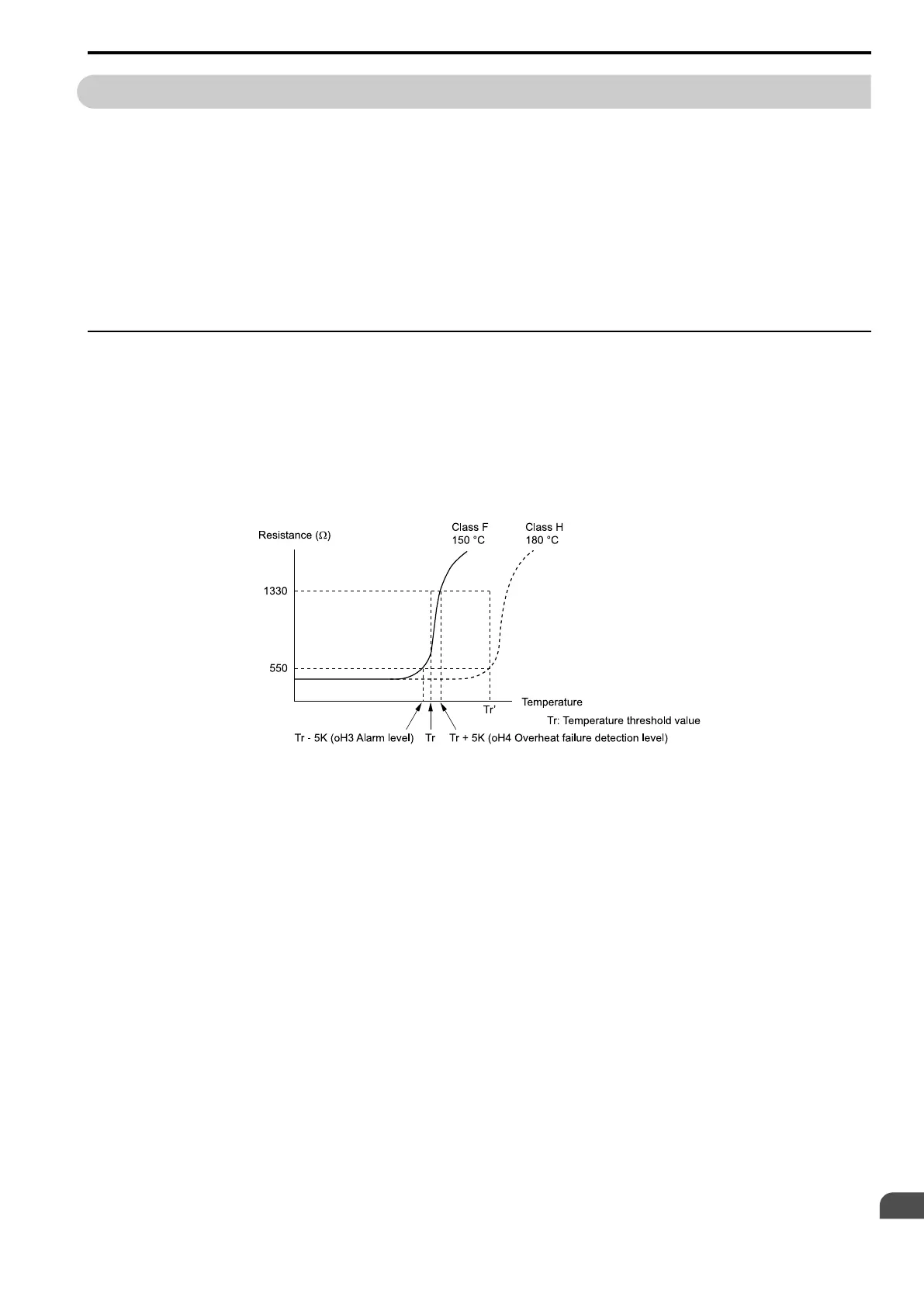

Figure 12.107 PTC Thermistor Temperature and Resistance
If the PTC input signal input to the drive is more than the overload alarm level, the drive detects oH3 [Motor
Overheat (PTC Input)]. The drive continues the operation set in L1-03 [Motor Thermistor oH Alarm Select]. By
default, the keypad shows oH3 and the drive continues operation.
The overheat fault level triggers an oH4 [Motor Overheat Fault (PTC Input)] fault, and outputs a fault signal. The
drive outputs a fault signal and uses the stop method set in L1-04 [Motor Thermistor oH Fault Select] to stop the
motor.
Note:
PTC is an acronym for Positive Temperature Coefficient.
The following shows the configuration procedure when you use terminal A2.
1. Connect the PTC thermistor input from the motor to analog input terminal A2 on the drive.
