8.4 Replace Cooling Fans
312 YASKAWA SIEPC71061753C GA500 Technical Manual
8.4 Replace Cooling Fans
NOTICE: Use the instructions in this manual to replace the cooling fans. When you do maintenance on the fans, replace all the
fans to increase product life. If you install the fans incorrectly, it can cause damage to the drive.
To replace a cooling fan, contact Yaskawa or your nearest sales representative.
◆ Number of Cooling Fans
Table 8.11 Single-Phase 200 V Class
Model Cooling Fans Replacement Procedure Ref.
B001 - B006 -
- -
B010, B012 1
A
312
B018 2 B
Table 8.12 Three-Phase 200 V Class
Model Cooling Fans Replacement Procedure Ref.
2001-2004 -
- -
2006 - 2021 1 A
312
2030 1 B
315
2042 - 2082 2 A 312
Table 8.13 Three-Phase 400 V Class
Model Cooling Fans Replacement Procedure Ref.
4001 - 4004 -
- -
4005 - 4012 1
A 312
4018, 4023 1 B
315
4031 - 4060 2 A 312
◆ Replace the Cooling Fan (Procedure A)
DANGER! Electrical Shock Hazard. Do not examine, connect, or disconnect wiring on an energized drive. Before servicing,
disconnect all power to the equipment and wait for the time specified on the warning label at a minimum. The internal capacitor
stays charged after the drive is de-energized. The charge indicator LED extinguishes when the DC bus voltage decreases
below 50 Vdc. When all indicators are OFF, measure for dangerous voltages to make sure that the drive is safe. If you do work
on the drive when it is energized, it will cause serious injury or death from electrical shock.
CAUTION! Burn Hazard. Do not touch a hot drive heatsink. De-energize the drive, wait for a minimum of 15 minutes, then make
sure that the heatsink is cool before you replace the cooling fans. If you touch a hot drive heatsink, it can burn you.
NOTICE: Use the instructions in this manual to replace the cooling fans. When you do maintenance on the fans, replace all the
fans to increase product life. If you install the fans incorrectly, it can cause damage to the drive.
■ Remove a Fan

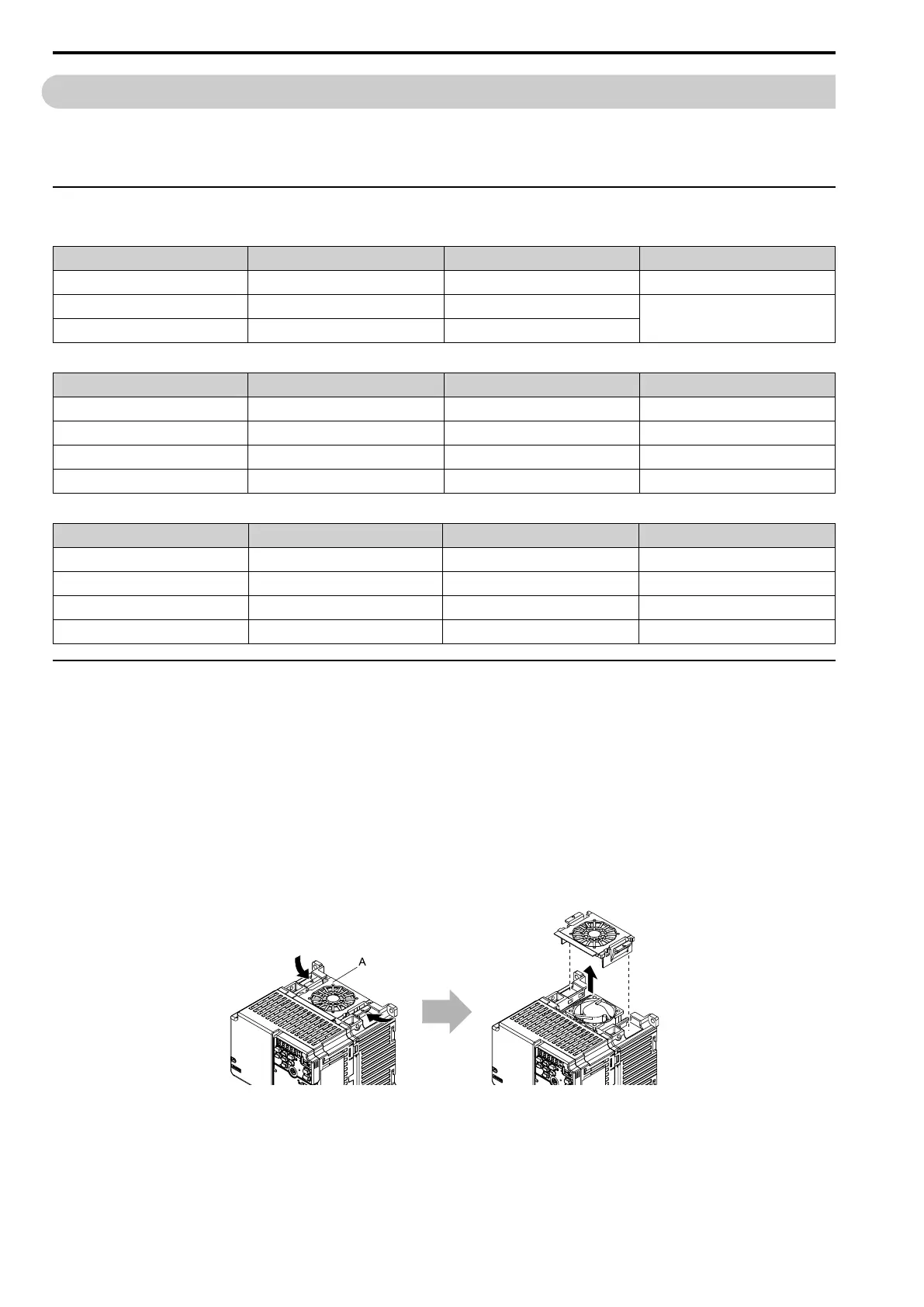

1. To remove the fan finger guard from the drive, push the hooks on the left and right sides of it and pull up.
A - Fan finger guard
Figure 8.1 Remove the Fan Finger Guard
To Next Page
