Electrical Installation
3
3.5 Control Circuit Wiring
YASKAWA SIEPC71061753C GA500 Technical Manual 89
3.5 Control Circuit Wiring
This section gives information about how to correctly wire the control circuit.
◆ Control Circuit Connection Diagram
Wire the drive control circuit as shown in Figure 3.37.

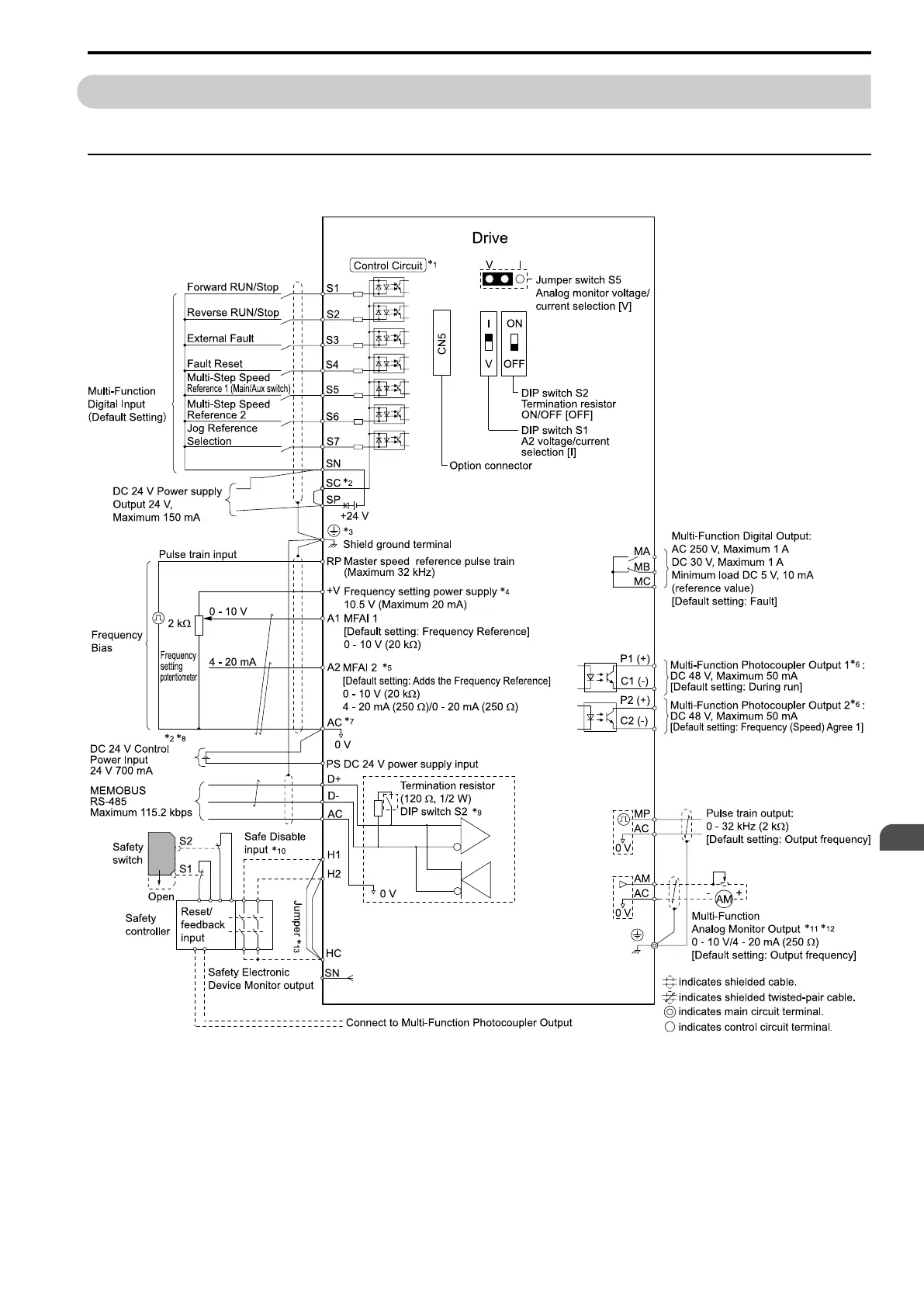

Figure 3.37 Control Circuit Connection Diagram
*1 Connect a 24 V power supply to terminals PS-AC to operate the control circuit while the main circuit power supply is OFF.
