YASKAWA E-II Series User Manual

5 Specifications and Dimensional Drawings of Cables and Peripheral Devices
5.5.8 Noise Filter
5-20
5.5.8 Noise Filter
The noise filters model FN manufactured by Schaffner Electronic are recommended. Contact Yaskawa Controls
Co., Ltd.
Select one of the following noise filters according to SERVOPACK capacity. For more details, refer to 2.5.3
Noise Filters, Magnetic Contactors, and Brake Power Supply Units.
Refer to 6.1.2 Typical Main Circuit Wiring Examples for the connection method.

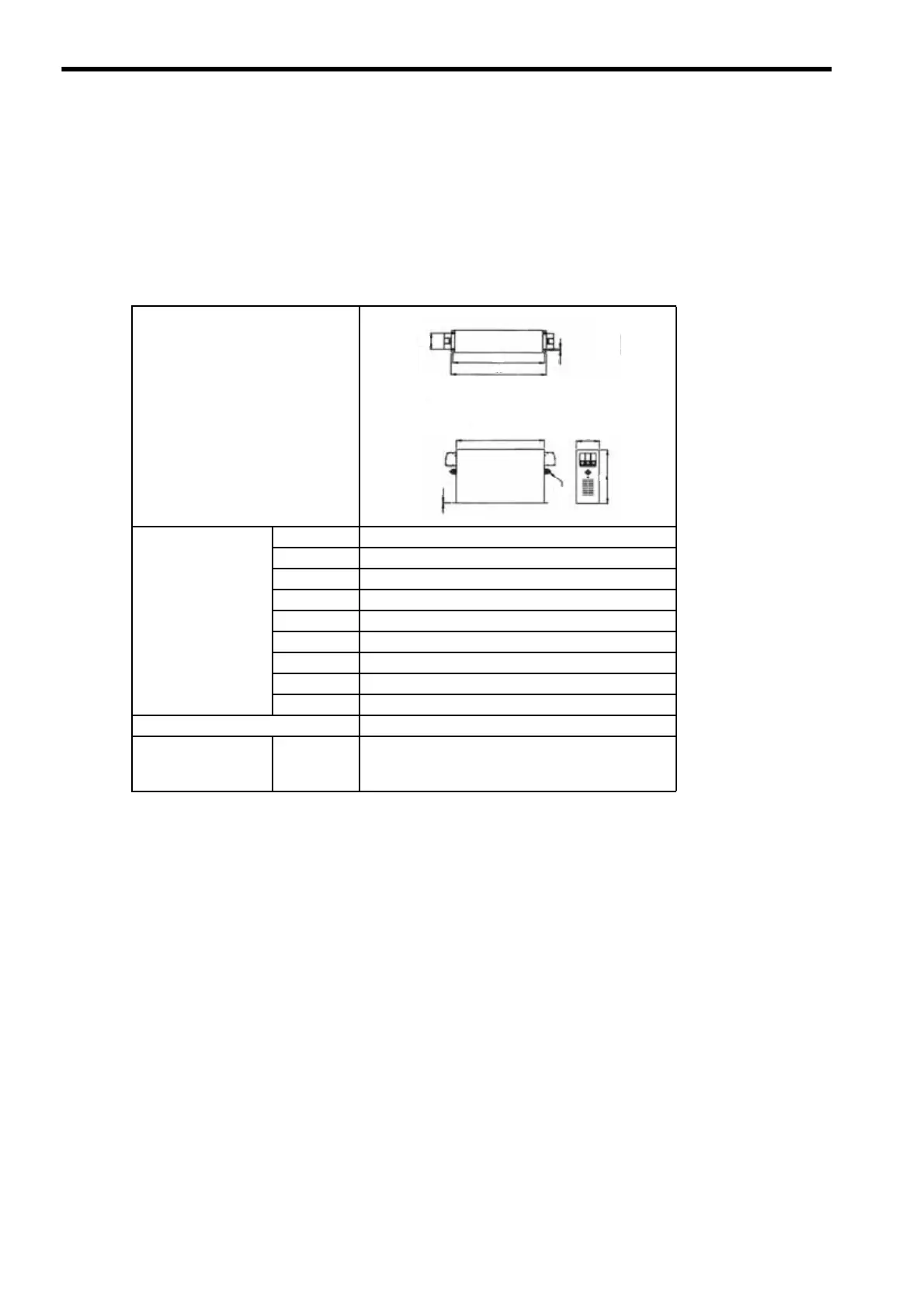

(1) Model: FN258L-130-35
Dimensional Drawings
External Dimensions
(mm)
A
439 ± 1.5
B
240
C
110 ± 0.8
D
400 ± 1.2
E
414
F
80
G
6.5
J
3
O
M10
Specifications
480 VAC, 130 A
Applicable
SERVOPACK
Three-
phase
200 V
SGDM-2BADB
SGDH-2BAEB
CD
B
O
J
G
F
E
A
