YASKAWA E-II Series User Manual

5 Specifications and Dimensional Drawings of Cables and Peripheral Devices
5.2.1 Encoder Cable with Connectors on Both Ends
5-6
5.2 Encoder Cables for CN2 Connector
When assembling the encoder cable, refer to 5.3 Connectors and Cables for Encoder Signals.

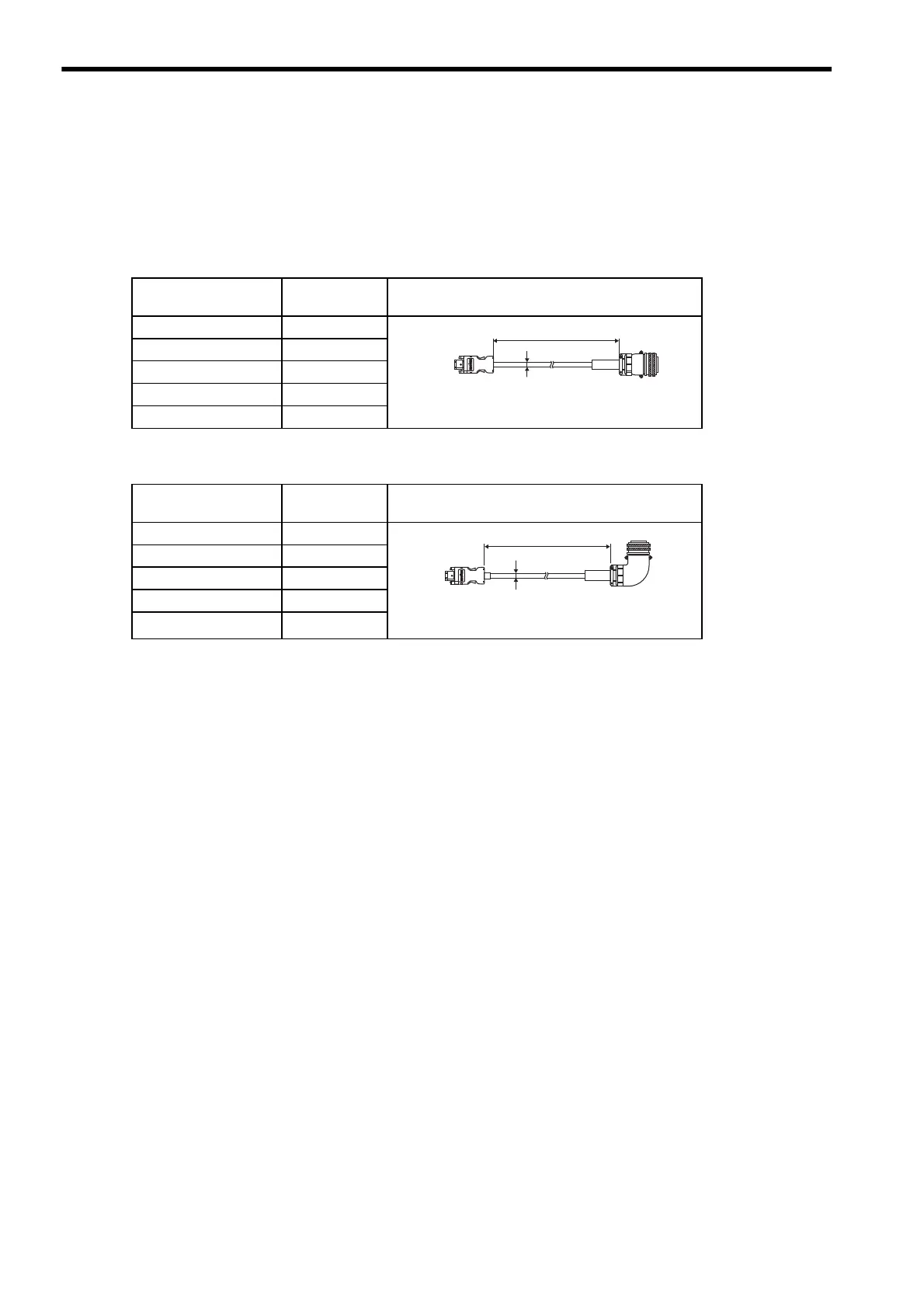

5.2.1 Encoder Cable with Connectors on Both Ends
(1) Cable With a SERVOPACK Connector and Encoder Straight Plug
(2) Cable With a SERVOPACK Connector and Encoder L-shaped Plug
Cable Type
Cable Length
(L)
Dimensional Drawing
JZSP-CMP21-03
3 m
JZSP-CMP21-05
5 m
JZSP-CMP21-10
10 m
JZSP-CMP21-15
15 m
JZSP-CMP21-20
20 m
MS3106B2029S
(DDK Ltd.)
MS305712A
Cable clamp
㧸
SERVOPACK end Encoder end
Crimped connector
(Molex Japan Co., Ltd.)
Finished dimension
φ6.5 mm
Cable Type
Cable Length
(L)
Dimensional Drawing
JZSP-CMP22-03
3 m
JZSP-CMP22-05
5 m
JZSP-CMP22-10
10 m
JZSP-CMP22-15
15 m
JZSP-CMP22-20
20 m
L
Crimped connector
(Molex Japan Co., Ltd.)
MS3108B2029S
(DDK Ltd.)
MS305712A
Cable clamp
SERVOPACK end Encoder end
Finished dimension
φ6.5 mm
