7.2 Operation in Utility Function Mode (Fn)
7
Digital Operator/Panel Operator
7-11
7.2.5 Alarm Traceback Data Clear (Fn006)
This function clears the alarm traceback data, which stores the alarms generated in the SERVOPACK.
After having cleared data, “A.--” (No alarm) is set to all the alarm traceback data.

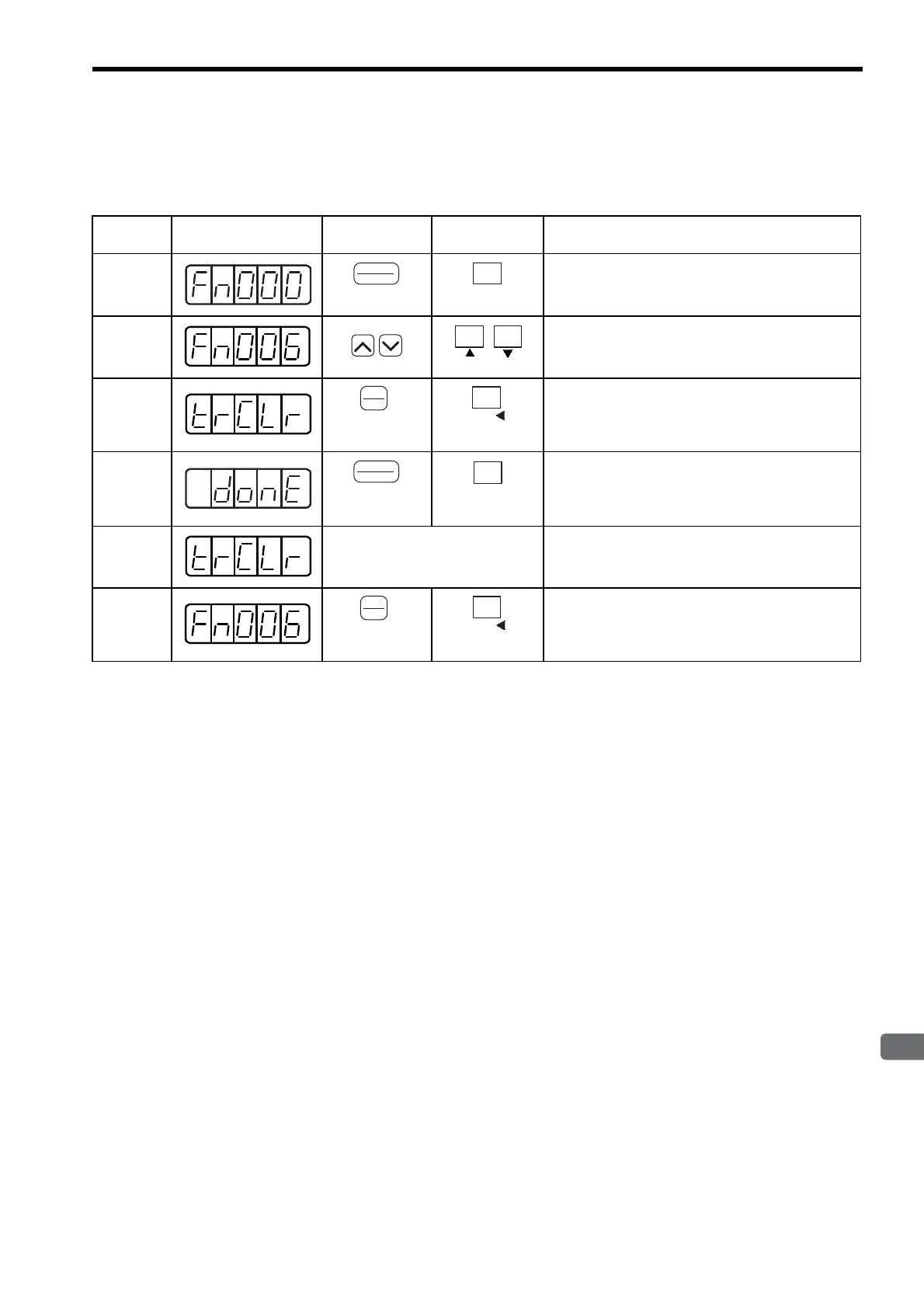

Step
Display after
Operation
Digital Operator Panel Operator Description
1 Press the DSPL/SET or MODE/SET Key to select the
utility function mode.
2 Press the UP or DOWN Key to select Fn006.
Note: The enabled digit blinks.
3 Press the DATA/ENTER Key once, or DATA/SHIFT
Key for more than one second, and the display will be
as shown on the left.
4 Press the DSPL/SET or MODE/SET Key to clear the
alarm traceback data.
The display shown on the left blinks for about one sec-
ond when the data is cleared.
5
After about one second
The display changes from “donE” to the display
shown on the left.
6 Press the DATA/ENTER Key once, or DATA/SHIFT
Key for more than one second to return to the utility
function mode display Fn006.
DSPL
SET
(DSPL/SET Key)
MODE/SET
(MODE/SET Key)
DATA
ENTER
(DATA/ENTER K ey)
DATA
(DATA/SHIFT Key)
(Press at least 1 s.)
DSPL
SET
(DSPL/SET Key)
MODE/SET
(MODE/SET Key)
DATA
ENTER
(DATA/ENTER K ey)
DATA
(DATA/SHIFT Key)
(Press at least 1 s.)
