6-24
Operation Avoiding Resonance (Jump Frequency Function)
• This function allows the prohibition or “jumping” of certain frequencies within the Inverter’s output fre-
quency range so that the motor can operate without resonant oscillations caused by some machine systems.
• It can also be used for deadband control.
Related Constants
The relationship between the output frequency and the jump frequency reference is as follows:

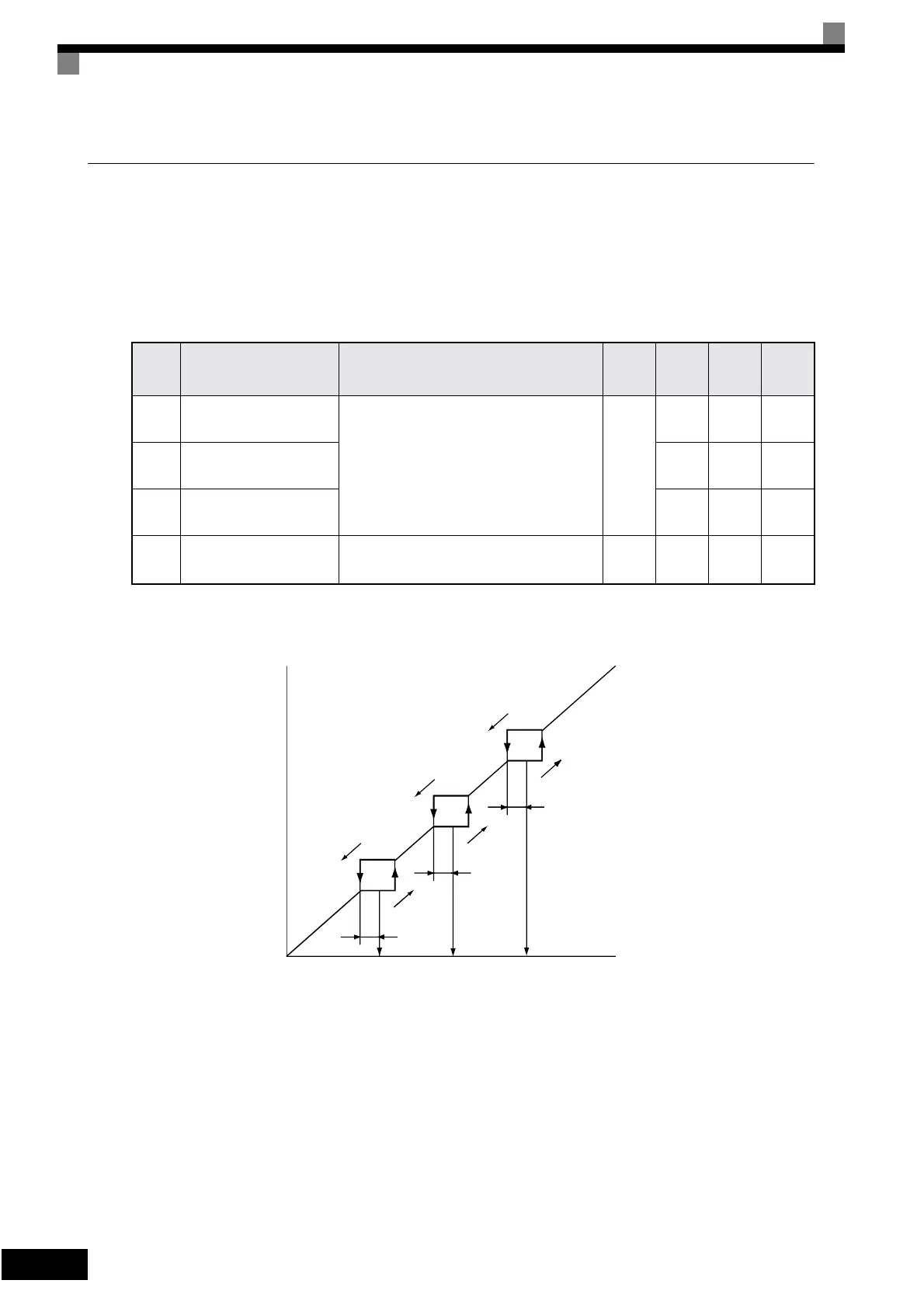

Fig 6.23 Jump Frequency
Setting Precautions
• Set the jump frequencies according to the following formula: d3-01 ≥ d3-02 ≥ d3-03.
• When constants d3-01 to d3-03 are set to 0 Hz, the jump frequency function is disabled.
Con-
stant
Number
Name Description
Setting
Range
Factory
Setting
Change
during
Opera-
tion
Access
Level
d3-01 Jump frequency 1
Set the frequency center value of the jump frequency set-
tings, in hertz.
Set to 0.0 to disable the jump frequency function.
Make sure that the settings are as follows: d3-01 ≥ d3-02 ≥
d3-03.
Operation within the jump frequency range is prohibited.
Changes during acceleration and deceleration are made
gradually without performing jumps.
0.0 to
200.0
0.0 Hz No A
d3-02 Jump frequency 2 0.0 Hz No A
d3-03 Jump frequency 3 0.0 Hz No A
d3-04 Jump frequency width
Sets the jump frequency width in hertz.
The jump frequency range is as follows: (Jump frequency
±d3-04).
0.0 to
20.0
1.0 Hz No A
Output
frequency
Frequency reference descending
Jump frequency width d3-04
Jump frequency reference
Frequency
reference
ascending
Jump
frequency
width d3-04
Jump
frequency
width d3-04
Jump
frequency
3 (d3-03)
Jump
frequency
2 (d3-02)
Jump
frequency
1 (d3-01)
