Removing/Attaching the Digital Operator and
Front Cover
Inverters of 18.5 kW or Less
To attach optional cards or change the terminal card connector, remove the Digital Operator and front cover in
addition to the terminal cover. Always remove the Digital Operator from the front cover before removing the
front cover.
The removal and attachment procedures are described below.
Removing the Digital Operator
Press the lever on the side of the Digital Operator in the direction of arrow 1 to unlock the Digital Operator
and lift the Digital Operator in the direction of arrow 2 to remove the Digital Operator as shown in the follow-
ing illustration.

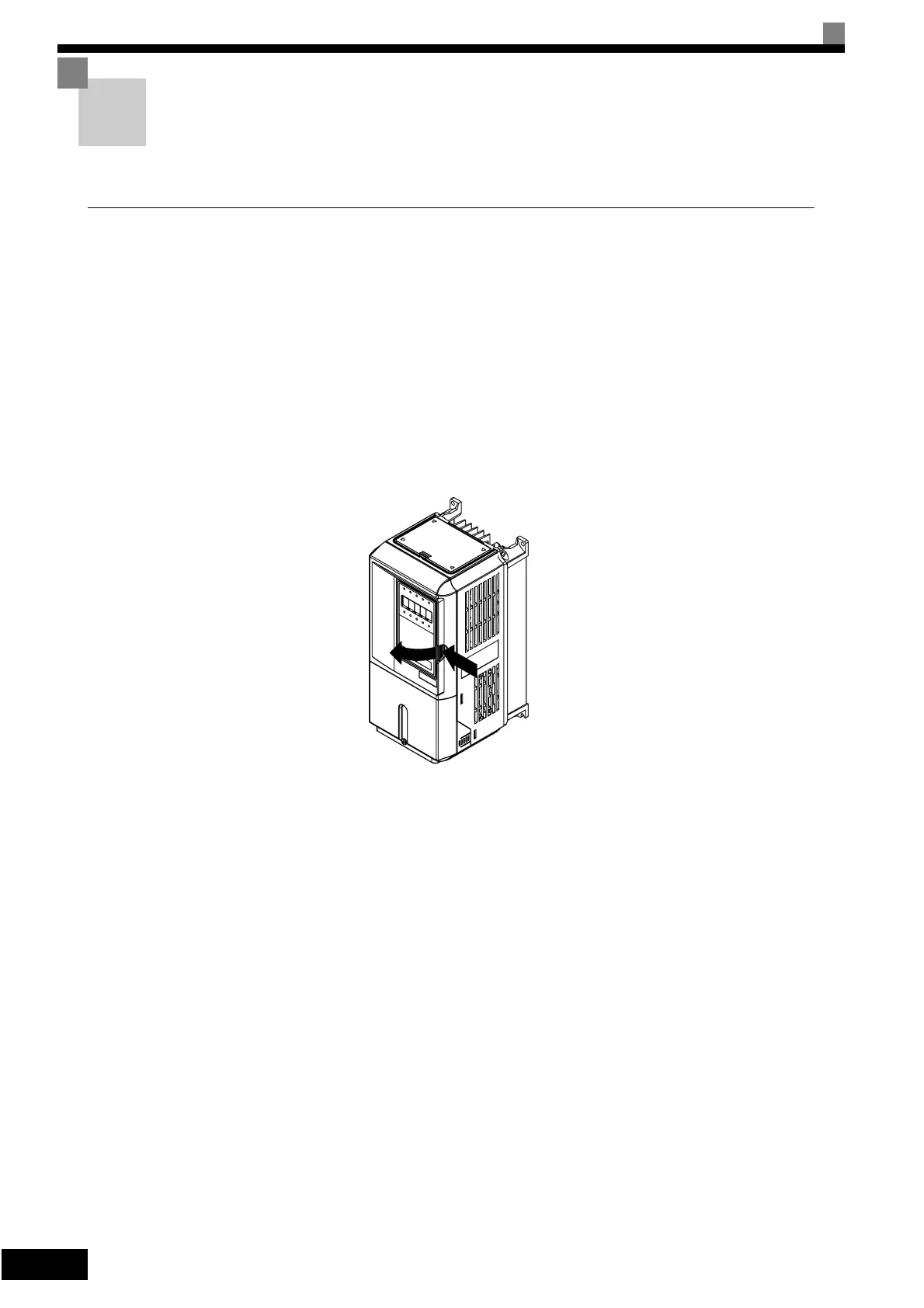

Fig 1.13 Removing the Digital Operator (Model CIMR-E7C45P5 Shown Above)
2
1
