4-2
Trial Operation Procedure
Perform trial operation according to the following flowchart.

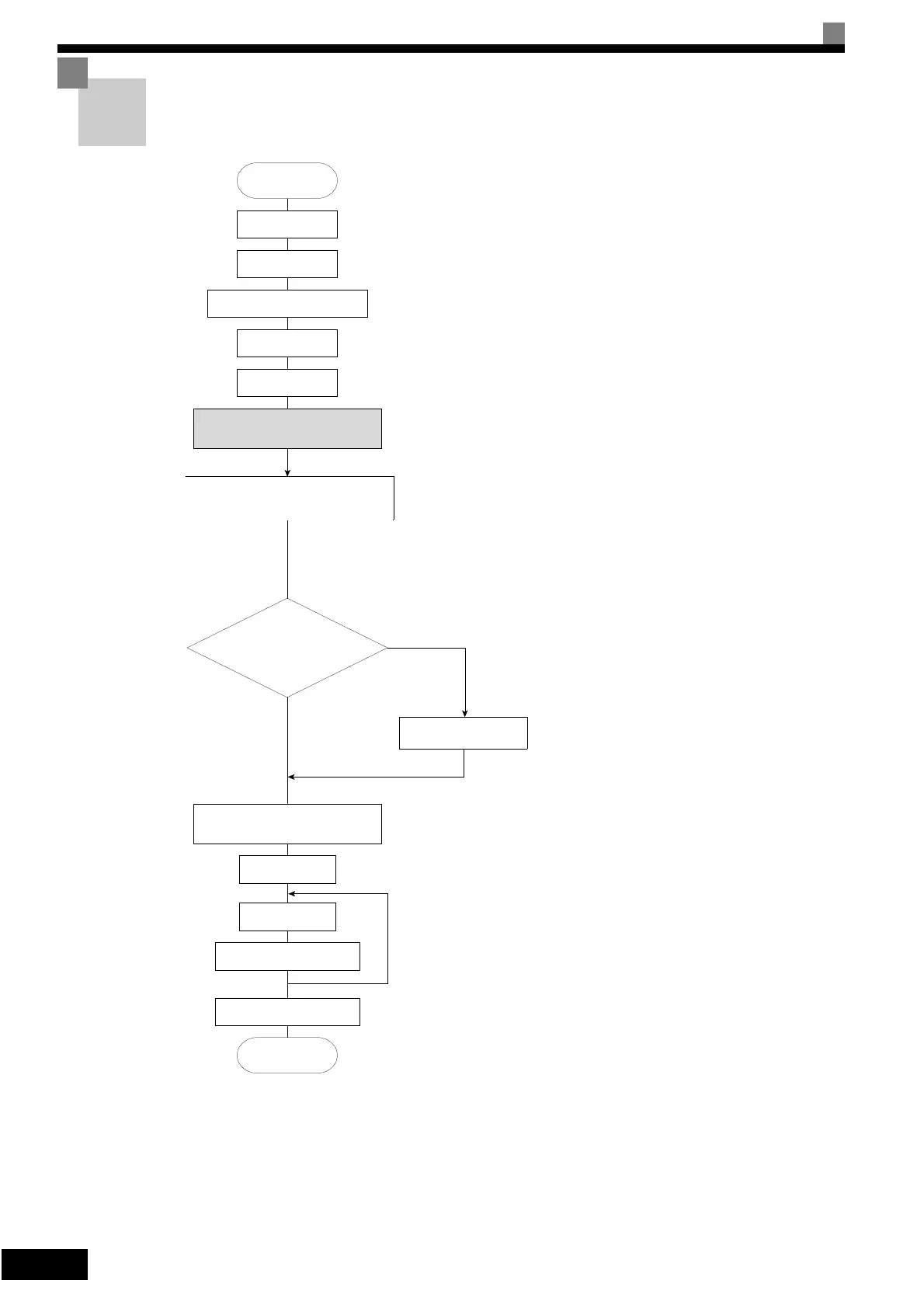

Fig 4.1 Trial Operation Flowchart
START
Installation
Wiring
Set power supply voltage.
*1
Turn ON power
Confirm status
Basic settings
(Quick programming mode)
Select operating
method.
Set E1-03.
V/f default: 200V/50Hz (400V/50Hz)
YES
NO
Stationary autotuning for
line-to-line resistance only
Application settings
(Advanced programming mode)
No-load operation
Loaded operation
Optimum adjustments and
constant settings
Check/record constants.
END
*1. Set for 400 V Class Inverter for 75 kW or more.
Motor cable over
50 m or heavy load possibly
causing motor to stall or
overload?
