Modes
3-7
Quick Programming Mode
In quick programming mode, the constants required for Inverter trial operation can be monitored and set.
Constants can be changed from the setting displays. Use the Increment, Decrement, and Shift/RESET keys to
change the frequency. The user constant will be written and the monitor display will be returned to when the
DATA/ENTER key is pressed after changing the setting.
Refer to Chapter 5 User Constants for details on the constants displayed in quick programming mode.
Example Operations
Key operations in quick programming mode are shown in the following figure.

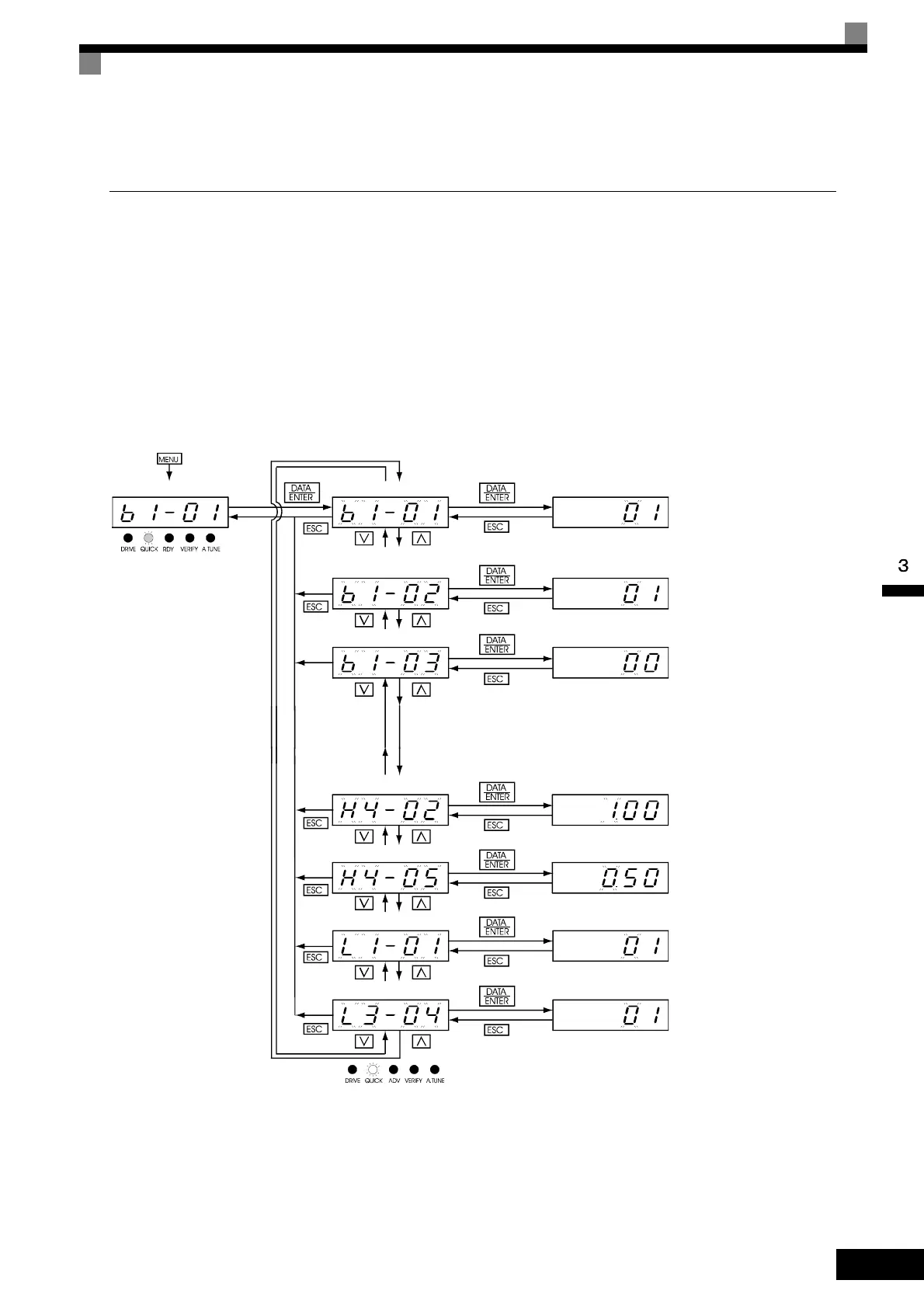

Fig 3.5 Operations in Quick Programming Mode
Mode Selection Display
Monitor Display
Setting Display
Quick Programming Mode
Reference selection
Operation method selection
Stopping method selection
AO CH1 output gain
AO CH2 output gain
Motor protection selection
Deceleration stall selection
C1-01: Acceleration time 1
C1-02: Deceleration time 1
C6-02: Carrier frequency
selection
d1-01: Frequency reference 1
d1-02: Frequency reference 2
d1-03: Frequency reference 3
d1-04: Frequency reference 4
d1-17: Jog frequency reference
E1-01: Input voltage setting
E1-03: V/f pattern selection
E1-04: Max. output frequency
E1-05: Max. voltage
E1-06: Base frequency
E1-09: Min. output frequency
E2-01: Motor rated current
