2 - 6
TC70x/TC75x Integrator Guide

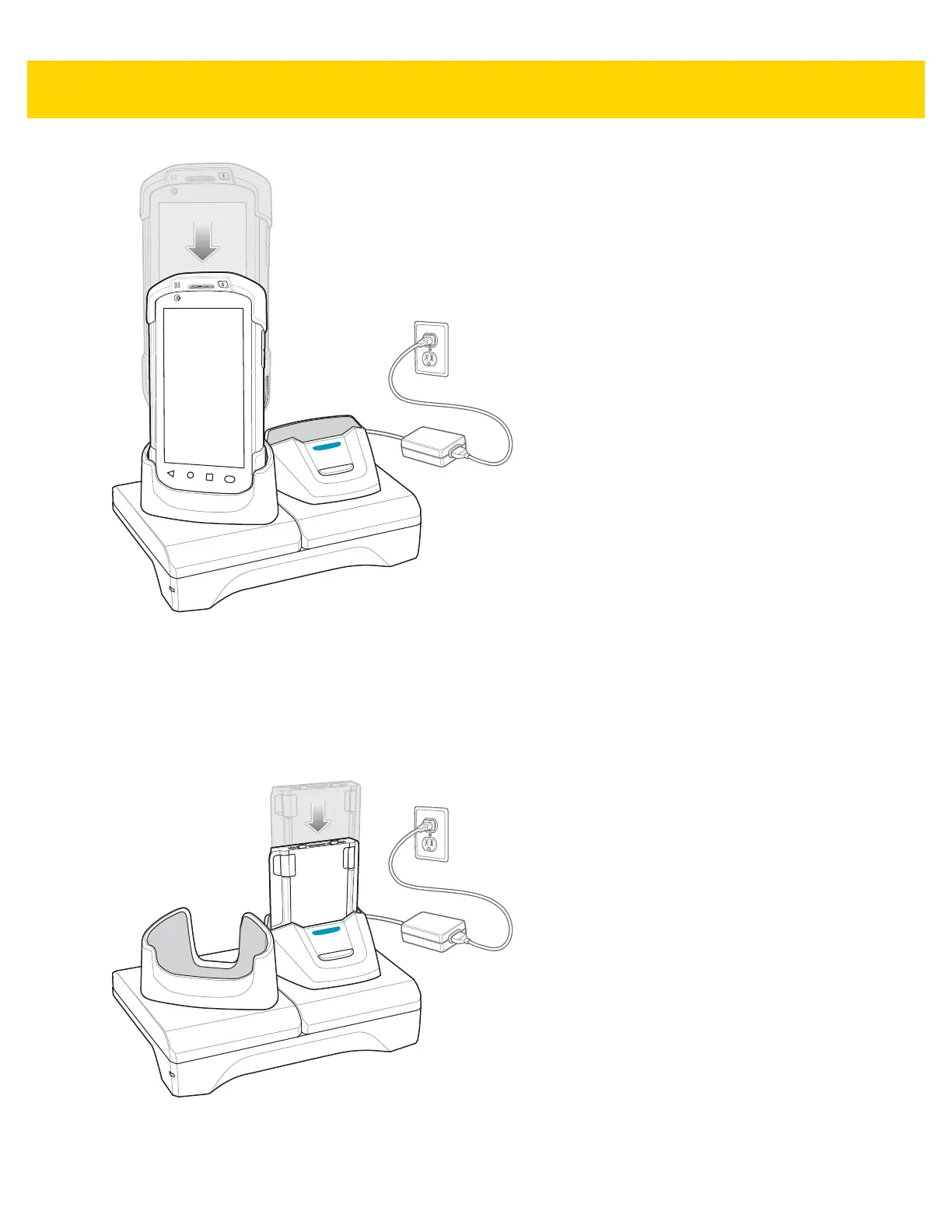

Figure 2-3
Battery Charging
2.
Ensure the
device is sea
ted proper
ly
.
Charging the Spare Battery
1.
Insert the battery
into the right slot to begin charging.
Figure 2-4
Spare Battery
Charging
2.
Ensure the
battery is se
ated prop
erly
.
39
41
Table of Contents
Revision History
5
Table of Contents
7
About This Guide
15
Introduction
15
Documentation Set
15
Configurations
15
Software Versions
16
Chapter Descriptions
16
Notational Conventions
17
Icon Conventions
17
Related Documents
18
Service Information
18
Chapter 1 Getting Started
21
Introduction
21
Setup
21
Installing the SIM Card
21
Installing the SAM Card
22
Installing a microSD Card
23
Installing the Hand Strap and Battery
24
Installing the Battery
26
Charging the Battery
26
Charging Indicators
27
Replacing the Battery
27
Replacing the SIM or SAM Card
29
Replacing the microSD Card
32
Resetting the Device
33
Performing a Soft Reset
33
Performing a Hard Reset
33
Chapter 2 Accessories
35
Introduction
35
Accessories
35
2-Slot Charge Only Cradle
38
Setup
39
Charging the Device
39
Charging the Spare Battery
40
Battery Charging
41
Main Battery Charging
41
Spare Battery Charging
41
Charging Temperature
41
2-Slot USB/Ethernet Cradle
42
Setup
43
Charging the Device
43
Charging the Spare Battery
44
Battery Charging
45
Main Battery Charging
45
Spare Battery Charging
45
Charging Temperature
46
USB/Ethernet Communication
46
Ethernet LED Indicators
46
Ethernet Settings
47
Configuring Ethernet Proxy Settings
47
Configuring Ethernet Static IP Address
48
5-Slot Charge Only Cradle
50
Setup
50
Charging the Device
51
Battery Charging
52
Main Battery Charging
52
Charging Temperature
52
Installing the Four Slot Battery Charger
53
Removing the 4-Slot Battery Charger
57
5-Slot Ethernet Cradle
58
Setup
59
Daisy-chaining Ethernet Cradles
59
Ethernet Settings
60
Configuring Ethernet Proxy Settings
60
Configuring Ethernet Static IP Address
61
LED Indicators
62
Charging the Device
62
Battery Charging
64
Main Battery Charging
64
Spare Battery Charging
64
Charging Temperature
65
Establishing Ethernet Connection
65
Installing the 4-Slot Battery Charger
65
Removing the 4-Slot Battery Charger
70
4-Slot Battery Charger
71
Setup
71
Charging Spare Batteries
71
Battery Charging
72
Spare Battery Charging
72
Charging Temperature
73
Trigger Handle
74
Installing the Attachment Plate to Trigger Handle
74
Installing the Trigger Handle Plate
74
Inserting the Device into the Trigger Handle
75
Removing the Device from the Trigger Handle
77
Hand Strap Replacement
79
Chapter 3 USB Communication
83
Introduction
83
Connecting to a Host Computer via USB
83
Transferring Files using Media Transfer Protocol
83
Transferring Files using Photo Transfer Protocol
84
Disconnect from the Host Computer
85
Chapter 4 DataWedge
87
Introduction
87
Basic Scanning
87
Profiles
88
Profile0
88
Plug-ins
88
Input Plug-ins
89
Process Plug-ins
89
Output Plug-ins
89
Profiles Screen
90
Profile Context Menu
90
Options Menu
91
Disabling DataWedge
91
Creating a New Profile
91
Profile Configuration
92
Associating Applications
93
Data Capture Plus
95
Bar Code Input
98
Enabled
98
Scanner Selection
98
Decoders
98
Decoder Params
100
Codabar
100
Code 11
101
Code128
101
Code39
102
Code93
102
Composite AB
103
Discrete 2 of 5
103
GS1 DataBar Limited
103
HAN XIN
103
Interleaved 2 of 5
103
Matrix 2 of 5
104
MSI
104
Trioptic 39
104
UK Postal
104
UPCA
105
UPCE0
105
UPCE1
105
US Planet
105
Decode Lengths
106
UPC EAN Params
106
Reader Params
108
Scan Params
109
Keystroke Output
110
Intent Output
111
Intent Overview
112
IP Output
113
Usage
114
Using IP Output with IPWedge
115
Using IP Output without IPWedge
116
Generating Advanced Data Formatting Rules
117
Configuring ADF Plug-in
117
Creating a Rule
118
Defining a Rule
118
Defining Criteria
119
Defining an Action
120
Deleting a Rule
121
Order Rules List
121
Deleting an Action
122
ADF Example
123
DataWedge Settings
126
Importing a Configuration File
127
Exporting a Configuration File
128
Importing a Profile File
128
Exporting a Profile
128
Restoring DataWedge
128
Configuration and Profile File Management
129
Enterprise Folder
129
Auto Import
129
Programming Notes
129
Overriding Trigger Key in an Application
129
Capture Data and Taking a Photo in the Same Application
130
Disable DataWedge on Device and Mass Deploy
130
Soft Scan Feature
130
Sample
130
Scanner Input Plugin
131
Function Prototype
131
Parameters
131
Return Values
131
Example
132
Comments
132
Enumerate Scanners
132
Function Prototype
132
Parameters
133
Return Values
133
Example
134
Comments
134
Set Default Profile
134
Default Profile Recap
134
Usage Scenario
135
Function Prototype
135
Parameters
135
Return Values
135
Example
136
Comments
136
Reset Default Profile
137
Function Prototype
137
Parameters
137
Return Values
137
Example
137
Comments
137
Switch To Profile
138
Profiles Recap
138
Usage Scenario
138
Function Prototype
138
Parameters
138
Return Values
139
Example
139
Comments
139
Notes
140
Chapter 5 Settings
141
Introduction
141
WWAN Configuration
141
Default SIM Slot Configuration
141
WLAN Configuration
142
Configuring a Secure Wi-Fi Network
142
Manually Adding a Wi-Fi Network
144
Configuring for a Proxy Server
145
Configuring the Device to Use a Static IP Address
146
Advanced Wi-Fi Settings
146
Screen Unlock Settings
149
Set Screen Unlock Using PIN
150
Set Screen Unlock Using Password
151
Set Screen Unlock Using Pattern
151
Passwords
153
Button Remapping
154
Remapping a Button
154
Accounts
155
Language Usage
155
Changing the Language Setting
156
Adding Words to the Dictionary
156
Keyboard Settings
156
PTT Express Configuration
156
About Phone
156
Chapter 6 Application Deployment
159
Introduction
159
Security
159
Secure Certificates
159
Installing a Secure Certificate
159
Configuring Credential Storage Settings
160
Development Tools
160
Android
160
EMDK for Android
162
StageNow
162
ADB USB Setup
162
Enabling USB Debugging
162
Application Installation
163
Installing Applications Using the USB Connection
163
Installing Applications Using the Android Debug Bridge
165
Installing Applications Using a microSD Card
166
Uninstalling an Application
166
Performing a System Update
167
Download the System Update Package
167
Using microSD Card
168
Using ADB
168
Verify System Update Installation
169
Performing an Enterprise Reset
169
Download the Enterprise Reset Package
170
Using microSD Card
170
Using ADB
170
Performing a Factory Reset
171
Download the Factory Reset Package
171
Using microSD Card
171
Using ADB
172
Storage
173
Random Access Memory
173
Internal Storage
174
External Storage
175
Formatting a microSD Card
177
Format as Internal Memory
179
Enterprise Folder
181
Application Management
181
Viewing Application Details
182
Managing Downloads
183
RxLogger
183
RxLogger Configuration
184
Main Log Plug-in
185
Snapshot Plug-in
186
Logcat Plug-in
186
PushPullClient Plug-in
187
TCPDump Plug-in
188
ANR Plugin
188
Kernal Plug-in
188
Configuration File
189
Enabling Logging
189
Disabling Logging
189
Extracting Log Files
189
Chapter 7 Maintenance and Troubleshooting
191
Introduction
191
Maintaining the TC70x/TC75x
191
Battery Safety Guidelines
191
Cleaning Instructions
192
Approved Cleanser Active Ingredients
192
Harmful Ingredients
193
Cleaning Instructions
193
Special Cleaning Notes
193
Cleaning Materials Required
193
Cleaning Frequency
193
Cleaning the TC70x/TC75x
194
Housing
194
Display
194
Camera and Exit Window
194
Connector Cleaning
195
Cleaning Cradle Connectors
195
Troubleshooting
195
TC70x/TC75x
196
2-Slot Charge Only Cradle
199
2-Slot USB/Ethernet Cradle
200
5-Slot Charge Only Cradle Troubleshooting
201
5-Slot Ethernet Cradle Troubleshooting
202
4-Slot Battery Charger Troubleshooting
202
Appendix A Technical Specifications
205
Introduction
205
TC70x/TC75x
205
SE4750-SR Decode Distances
208
I/O Connector Pin-Outs
209
2-Slot Charge Only Cradle Technical Specifications
210
2-Slot USB/Ethernet Cradle Technical Specifications
210
5-Slot Charge Only Cradle Technical Specifications
211
5-Slot Ethernet Cradle Technical Specifications
212
4-Slot Battery Charger Technical Specifications
212
Charge Only Vehicle Cradle Technical Specifications
213
Trigger Handle Technical Specifications
213
Charging Cable Cup Technical Specifications
214
Snap-On USB Cable Technical Specifications
214
Snap-On Serial Cable Technical Specifications
215
DEX Cable Technical Specifications
215
Index
217
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Zebra TC700K and is the answer not in the manual?
Ask a question
Zebra TC700K Specifications
General
Brand
Zebra
Model
TC700K
Category
Handhelds
Language
English
Related product manuals
Zebra TC70 Series
228 pages
Zebra TC75
225 pages
Zebra TC57
228 pages
Zebra TC8000
162 pages
Zebra TC20 Series
158 pages
Zebra TC52 Series
198 pages
Zebra EC50
17 pages
Zebra MC67
224 pages
Zebra WT6000
141 pages
Zebra WT6300
21 pages
Zebra MC33 Series
222 pages
Zebra WT6000 Series
175 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
