2 - 38 TC70x/TC75x Integrator Guide

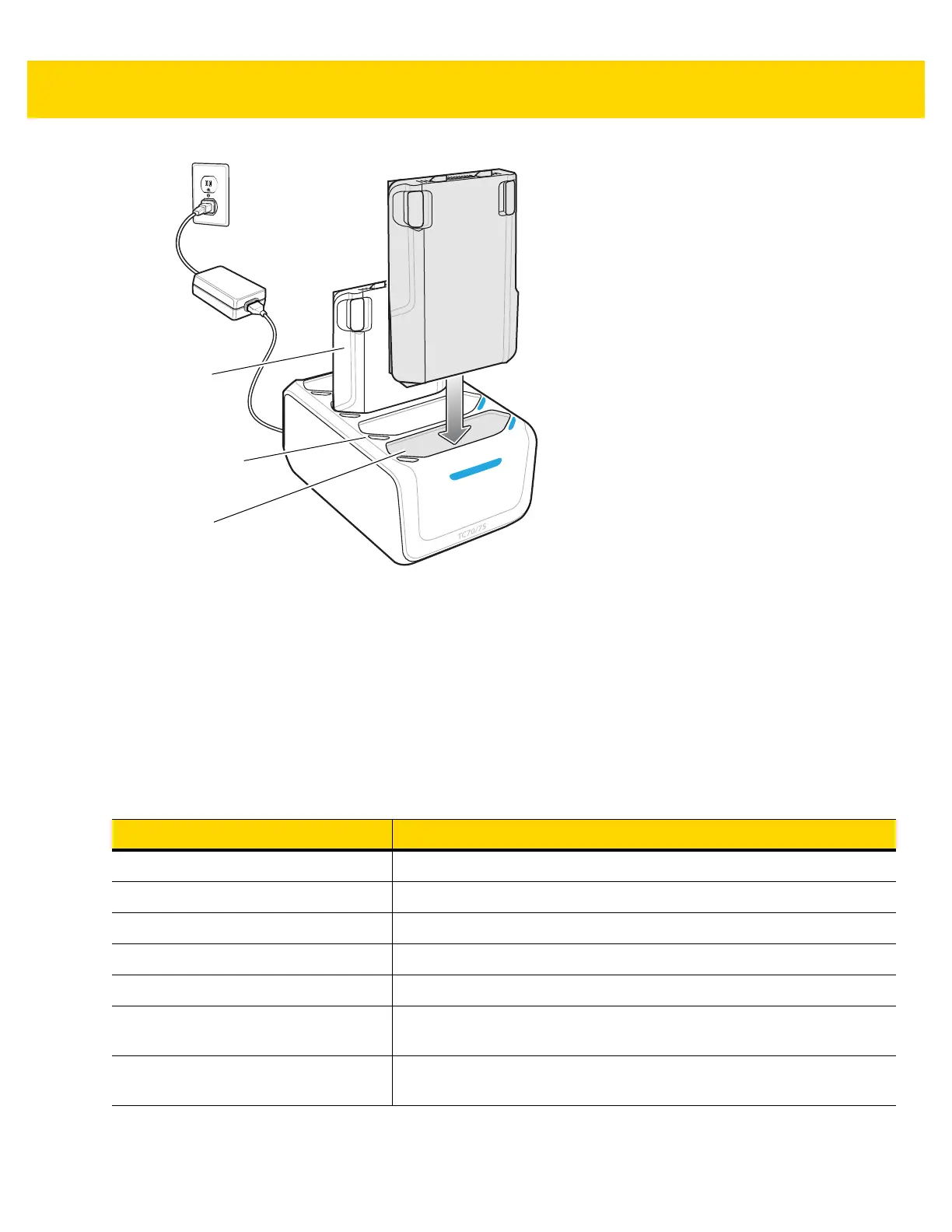

Figure 2-45 Four Slot Battery Charger
Battery Charging
Spare Battery Charging
Each Battery Charging LED indicates the status of the battery charging in each slot. The table below describes the
Battery Charging LED status.
The 4,620 mAh battery fully charges in less than five hours at room temperature.
Battery
Battery Charge LED
Battery Slot
Table 2-7 Battery LED Charging Indicators
LED Indication
Slow Blinking Amber Spare battery is charging.
Solid Green Charging complete.
Fast Blinking Amber Error in charging; check placement of spare battery.
Slow Blinking Red Spare battery is charging and battery is at the end of useful life.
Solid Red Charging complete and battery is at the end of useful life.
Fast Blinking Red Error in charging; check placement of spare battery and battery is at the
end of useful life.
Off No spare battery in slot; spare battery not placed correctly; cradle is not
powered.
