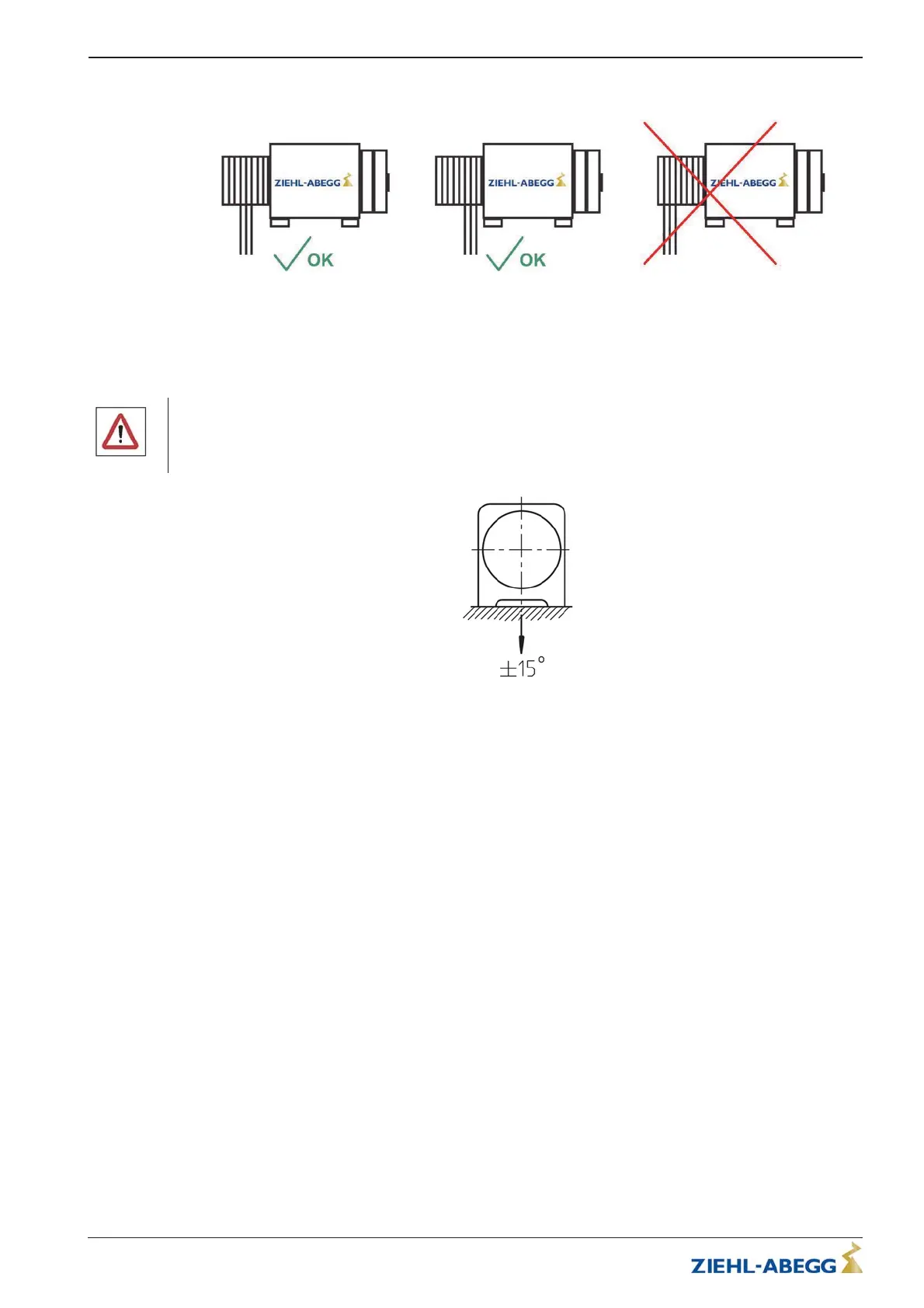

4.3 Fitting the ropes
Fitting the ropes
If the traction sheave should offer more grooves than the actual number of ropes, the ropes must
be applied on the sheave either centred or towards the motor side.
4.4 Rope pull
The
rope pull must be vertical to the motor foot.
The rope force direction resulting from rope pull must be observed.
Resulting rope force
Translation of the original operating instructions
ZAtop – model series SM210.60B/SM210.70B Mechanical installation
