no.
Designation
no.
Designation
1CE mark 13T
r
- Rated torque [Nm]
2 S/N - Motor number 14 I
max
- Acceleration current [A]
3 Type - Motor type and size 15 I
r
- Rated current [A]
4 Network form / Connection type /
Rated voltage
[V] 16 n - Rated speed [rpm]
5cos ϕ - Power factor 17 P
r
- Rated power [kW]
6J
M
- Moment of inertia [kg m
2
]18Specification of relevant standard
7 Mode 19 Protection rating
8 Duty - On time [%] 20 Insulation class
9 Mass - Weight [kg] 21 U
G
- Generator voltage
10 R
U20
- Winding resistance [Ω] 22 Rated frequency [Hz]
11 Trips per hour [st/h] 23 Design
12 T
max
- Acceleration torque [Nm] 24 QR code
Values for maximum load for operation of elevator (trip with full cabin down and with full cabin
up):
850 Nm; 20 % ED; 10.7 kW; 28 A
Values for average load for operation of elevator:
600 Nm; 40 % ED; 7,5 kW; 20 A
Note:
The first rated currrent is the decisive factor in the selection of both the frequency inverter and the line
cross section of the motor cable.
3.3 Transport
•
ZIEHL-ABEGG SE elevator machine are packed by the manufacturer for the types of transport and
stor
age agreed upon.

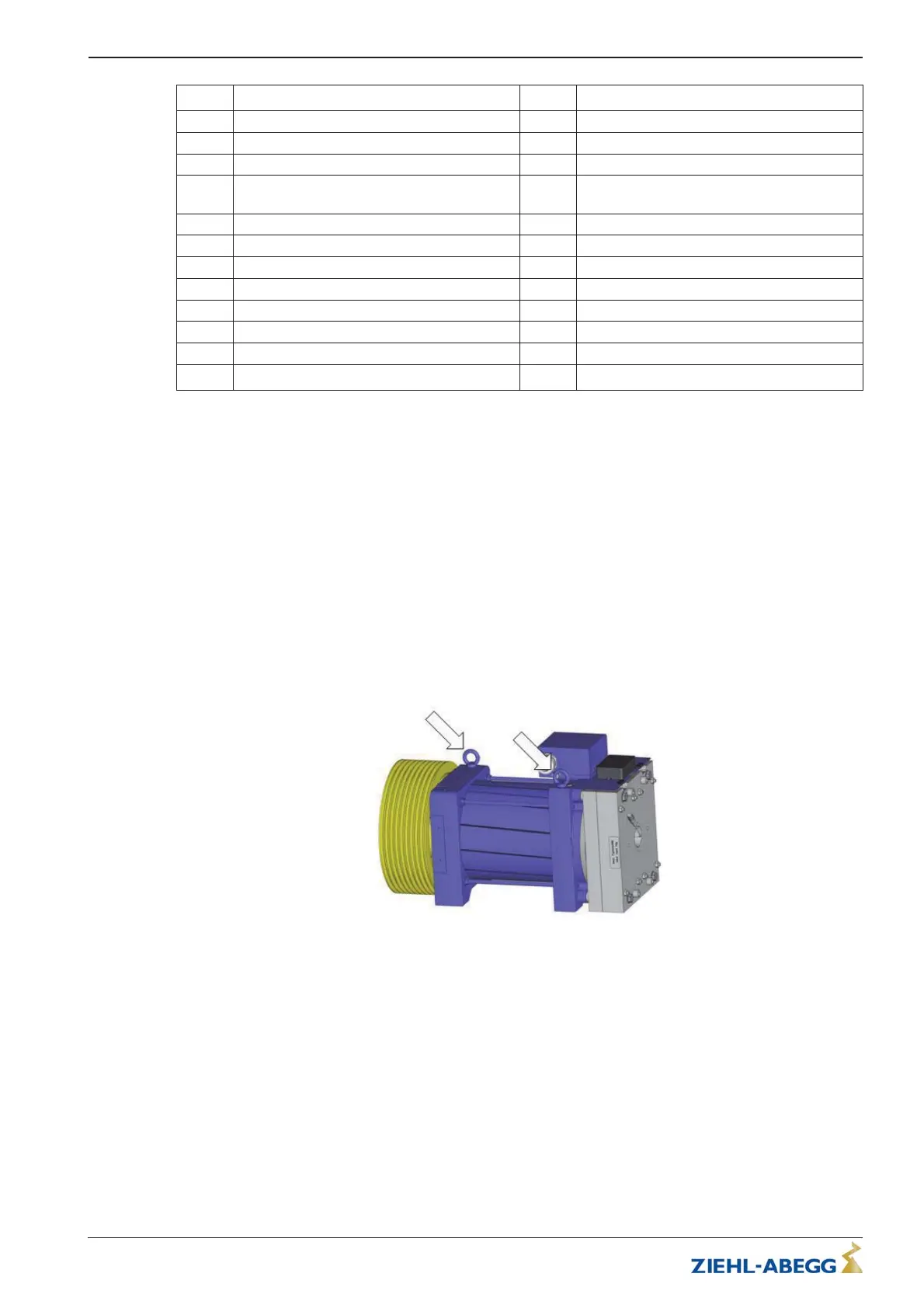

Position of eyelets
Transport the elevator machine either with the original packing or at the casted eyelets or eyebolts
using adequate hoists.
Transport elevator machine without any additional load and taking the centre of gravity into
account!
The threads in the shaft ends are not to suit eyebolts to transport the elevator machine.
Avoid excessive vibration and shocks.
Check packing and elevator machine for possible damage and report the forwarding agency about
any damages caused by transport. Shipping damages are not covered by our guarantee!
Translation of the original operating instructions
ZAtop – model series SM210.60B/SM210.70B Product overview
$7%$B*% ,QGH[ Part.-No. 01013389-GB (EU-BD 1014)
9/88
