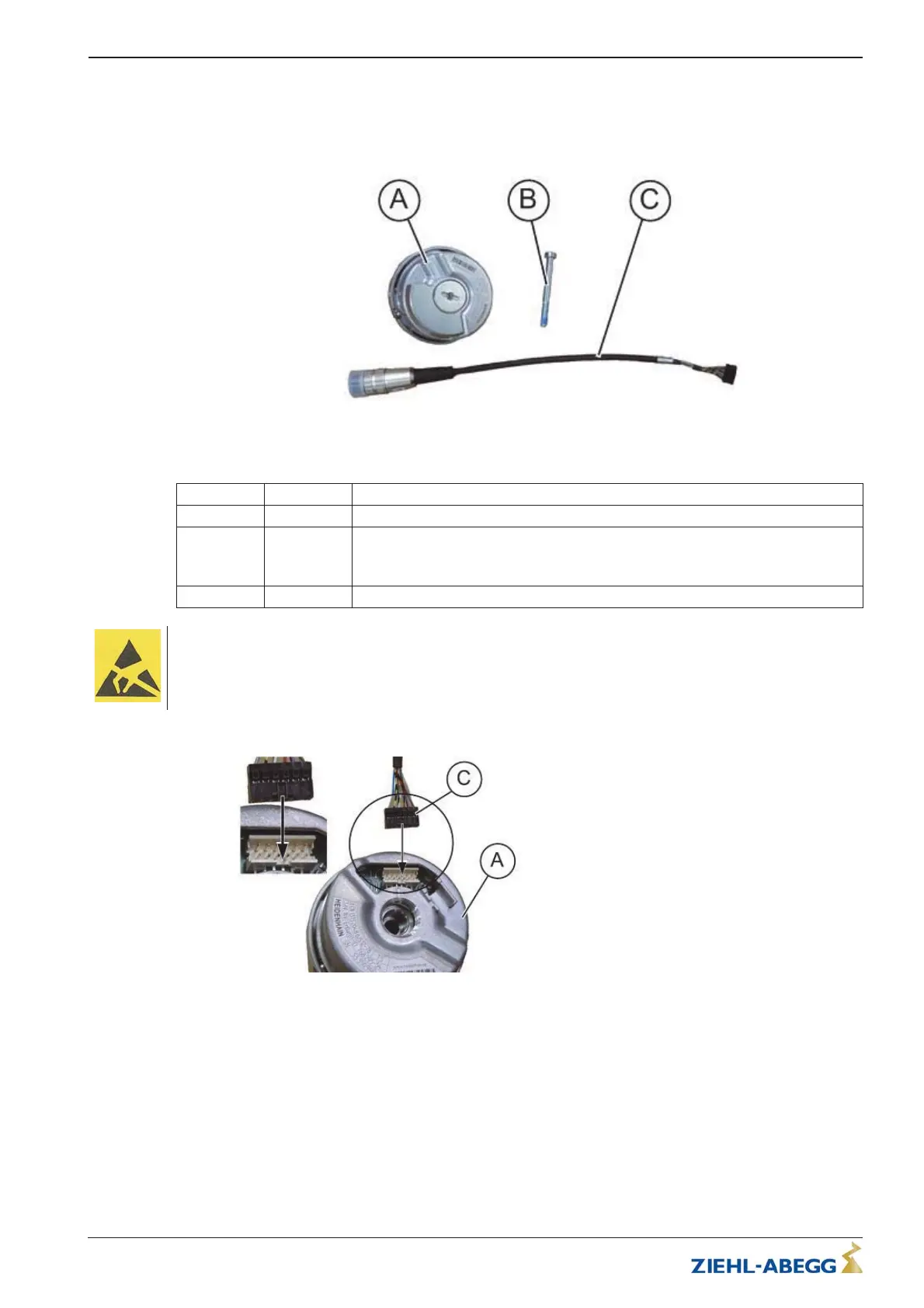

8.3.1.3 Pre-assembly of the absolute value encoder
Scope of supply for replacement absolute value encoder
Pos. Count
Designation
A 1 Absolute encoder
B 1 central encoder fastening screw
(self-locking screw M5 x 50 DIN 6912 SW4 - with positive locking)
Tightening torque 5+0.5 Nm
C 1 Encoder cable (optional)
Caution!
Due the electrostatic discharge the absolute encoder can be destroyed! Do not touch the pins of the encoder
cable as well as the electronics of the absolute encoder!
You must discharge your own body before touching. This can be done, for example, by touching a conductive,
earthed object (e.g. bare metal switch cabinet parts) immediately before.
Translation of the original operating instructions
ZAtop – model series SM210.60B/SM210.70B Service and maintenance
$7%$B*% ,QGH[ Part.-No. 01013389-GB (EU-BD 1014)
28/88
