8.3 Spare parts
Spare parts and accessories not supplied by ZIEHL-ABEGG SE have not been tested or approved by
us. These parts may be lower in function or quality and there fore can reduce functionality or safety of
the elevator machine installation. Will assume no liability or guarantee for damages caused by
ZIEHL-ABEGG SE spare parts that are not approved.

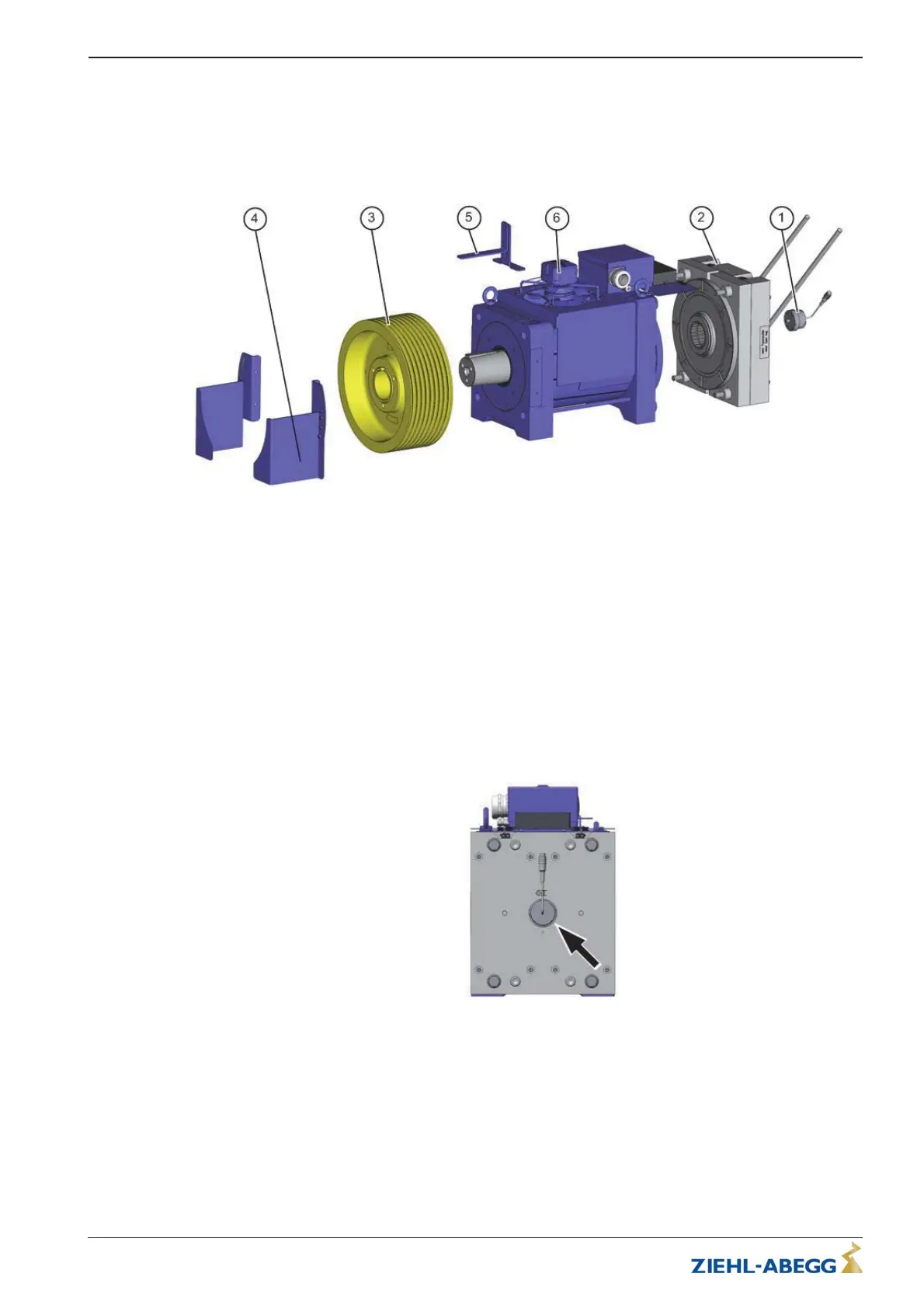

Available spare parts:
1. Absolute encoder
2. Complete brake
2.1 Brake rotor with O-ring
2.2 Micro switch for brake
2.3 Inductive proximity switch for brake
3. Traction sheave
4. Rope guard
5. Rope retainer
6. Forced cooling
8.3.1 Replacement of the absolute encoder ECN1313/ERN1387
The absolute encoder is mounted on the motor drive shaft opposite the power take off side (see
arrow).
Position of absolute encoder
8.3.1.1 Required tool for the replacement of the absolute encoder:
•
Wire cutter
•
Allen wrench SW 2
•
Allen wrench SW 4
•
Torque wrench for tightening torque 5
+0.5
Nm with size 4 Allen key
•
Torque wrench for tightening torque 1.25
-0.2
Nm with size 2 Allen key
•
Screw M10 x 25 (included in toolkit, article 70027450)
Translation of the original operating instructions
ZAtop – model series SM210.60B/SM210.70B Service and maintenance
$7%$B*% ,QGH[ Part.-No. 01013389-GB (EU-BD 1014)
26/88
