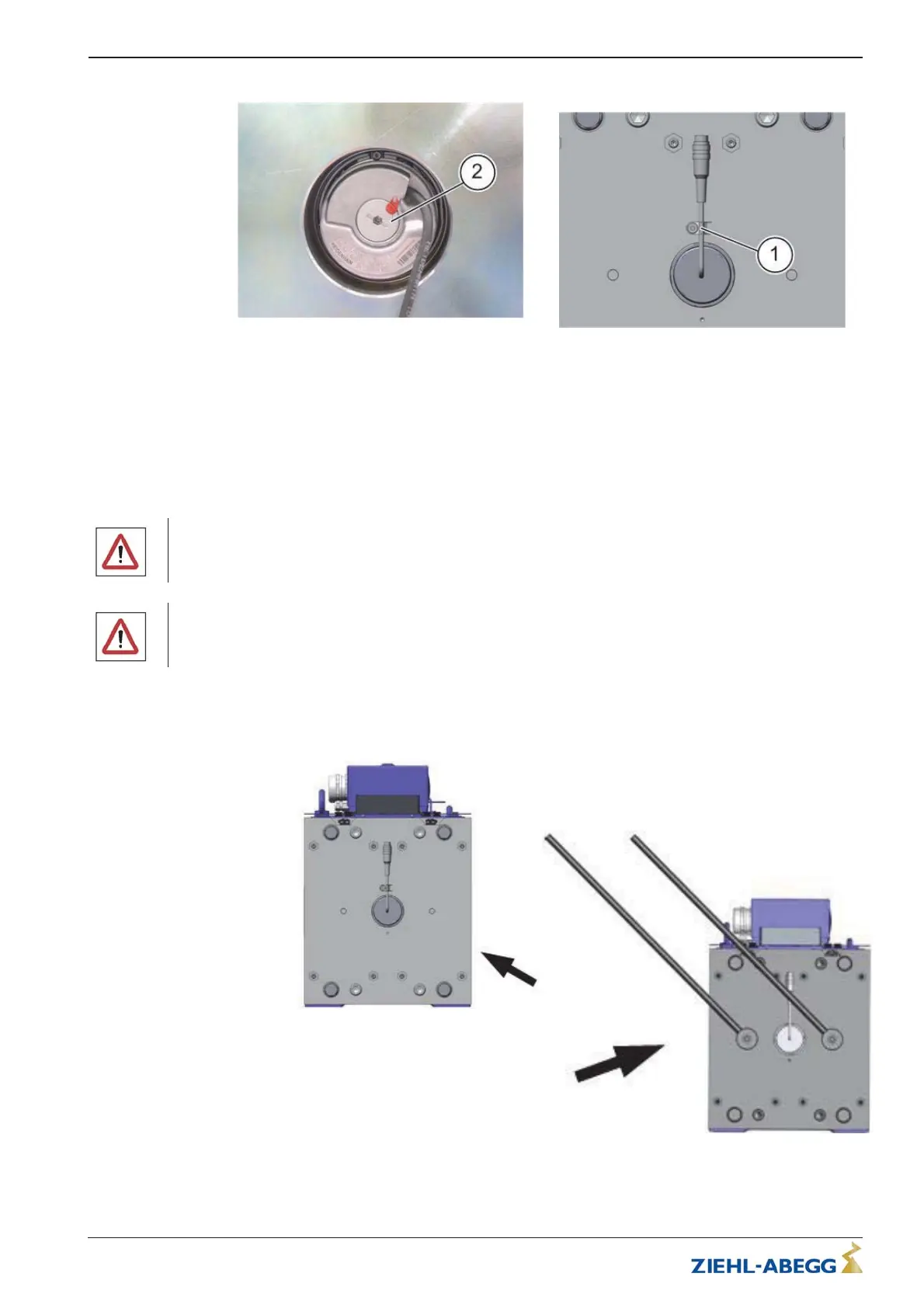

5. Screw on the encoder cover (2) with the size 4 Allen key.
Tightening torque: 5
+0.5
Nm
6. Secure the encoder cable to the brake with cable tie (1).
7. Carry out the alignment of the absolute encoder corresponding to the operation instructions of t
he
frequency inverter.
8.3.2 Replacement of the brake
During the mounting as well as the dismounting also the operating manual of the brake has to be
observed.
Risk of death!
When dismounting the brake make sure that the cabin and the counterweight are
mechanically secured against movement!
Risk of death!
Incorrect mounting can have a detrimental impact on the braking action.
The brake is mounted opposite the power take-off side (see arrow).
Brake with mechanical hand release system
Translation of the original operating instructions
ZAtop – model series SM210.60B/SM210.70B Service and maintenance
