the operating instructions are available at the location where the elevator machine is being used,
are complete and are in legible condition
sufficiently qualified and authorized personnel operate, maintain and repair the elevator machine
these personnel receive regular instruction in all relevant industrial safety and environmental
protection issues and are familiar with the operating instructions and the safety instructions they
contain
all safety and warning notices attached to the elevator machine are never removed and remain
legible
2.8 Employment of external personnel
Maintenance and service work are frequently carried out by external employees who often do not
recognize the specific situations and the thus resulting dangers.
These persons must be comprehensively informed about the hazards in their area of activity.
You must monitor their working methods in order to intervene in good time if necessary.
3 Product overview
3.1 Operational area
The ZAtop SM210.60B/SM210.70B is designed as a gearless elevator machine for traction sheave
rope elevators.
Owing to its very compact design, the ZAtop SM210.60B/SM210.70B is ideal for machine roomless
elevators.
The type-tested brake can be used as a:
•
Brake mechanism acting on the drive shaft as part of the ascending car overspeed protection
m
eans
•
Brake element acting on the drive shaft as part of the protection against unintended car movement
3.2 Name plate
The rating plate for the ZAtop SM210.60B/SM210.70B drives specify two values as nominal values for
maximum / average nominal power, maximum / average nominal current, maximum / average nominal
torque and on time at maximum / average load.
The first values in each case represent the maximum load for operation of the elevator (descending
with empty car or ascending with full car). The second values stand for the average load for operation
of the elevator.
The name plate is on the brake-side on the left and right on the housing of the ZAtop
SM210.60B/SM210.70B.

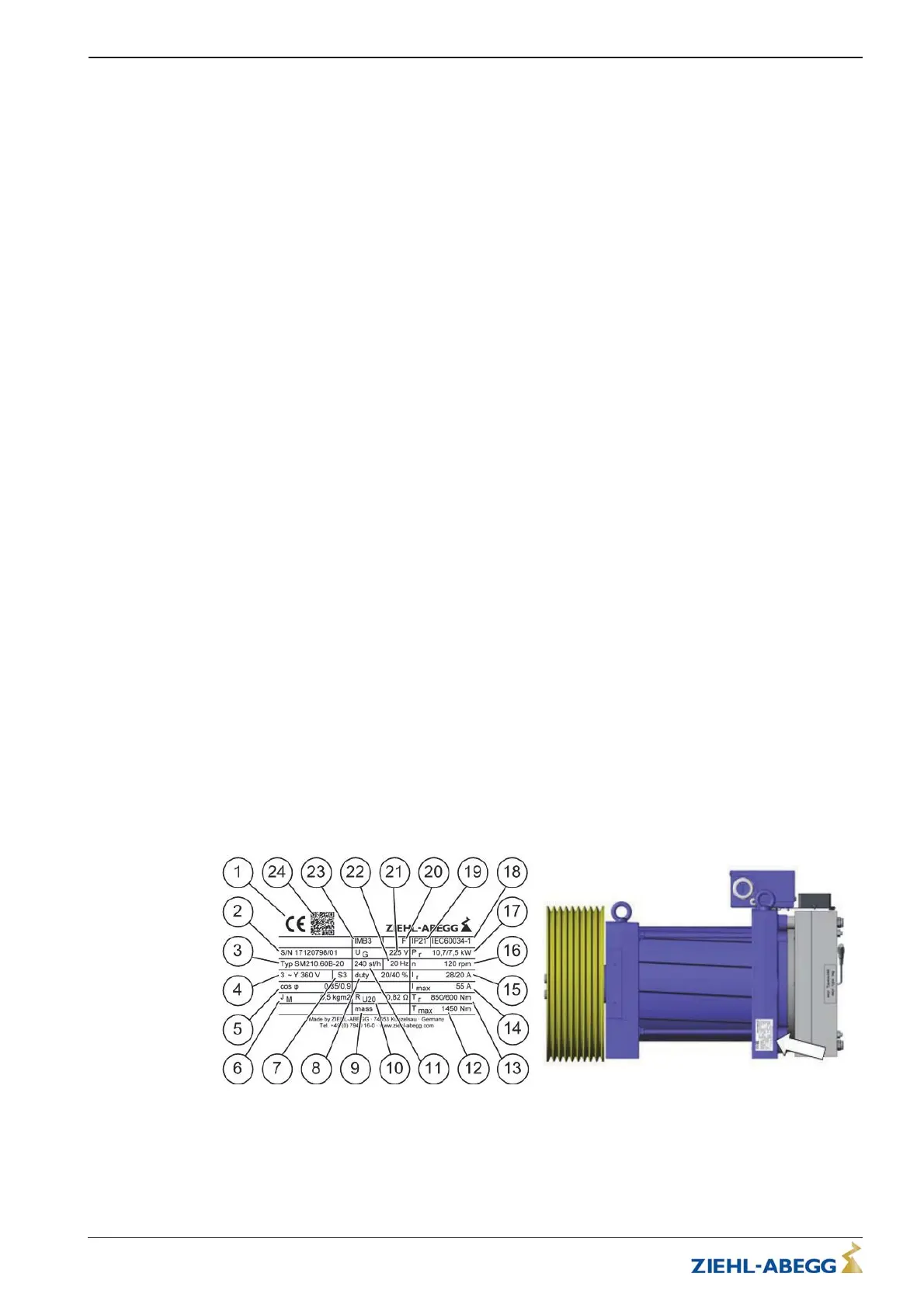

Example rating plate ZAtop SM210.60B/SM210.70B
Rating plate item
Translation of the original operating instructions
ZAtop – model series SM210.60B/SM210.70B Product overview
