8.3.2.3 Mounting the brake

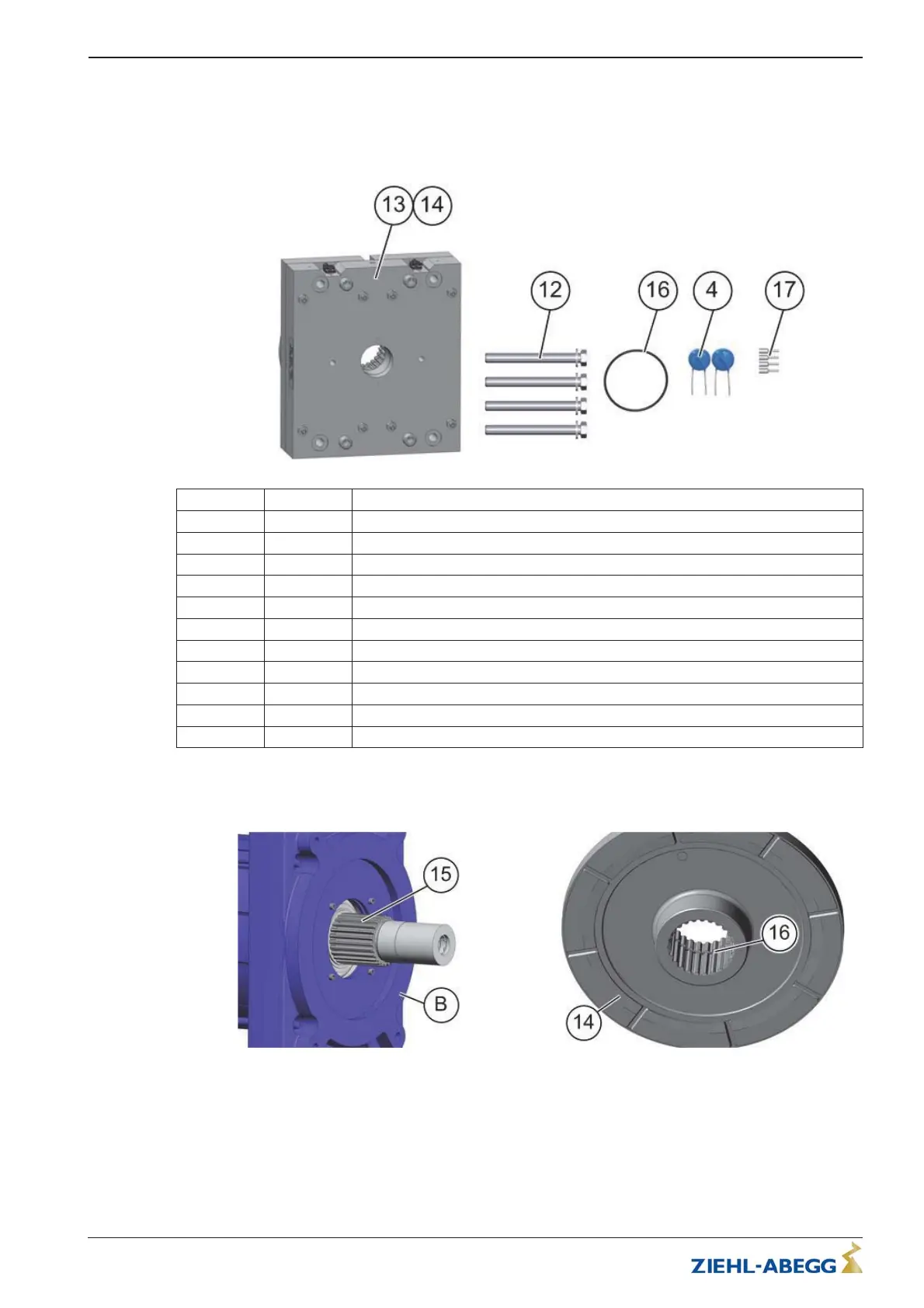

Scope of delivery for the brake and assembly kit (article 70029992) in case of replacement
delivery
Pos. Count
Designation
4 2 varistor
12 6 Hexagon head screw M16 x 150 - 8.8 with washer
13 1 Brake body
14 1 Brake rotor
16 1 O-ring
19 4 Wire-end sleeves
20 1 Micro-active cloth
21 1 Feeler gauges, 13-part
22 1 Thread-locking fluid 20 ml
23 1 Technical vaseline 50 g
24 1 Quick cleaner LOCTITE® 7063 400 ml
The assembly kit (article 70029992), including nos. 4 and 19 to 24, is optionally available and supplied
in a separate folding box.
Translation of the original operating instructions
ZAtop – model series SM210.60B/SM210.70B Service and maintenance
