4.5 Fastening rope guard
Warning!
Warning of hand injuries!
Risk of injury from reaching into the rope guard.
Do not carry out any activities during operation.
Only perform maintenance work on the drive when stopped.

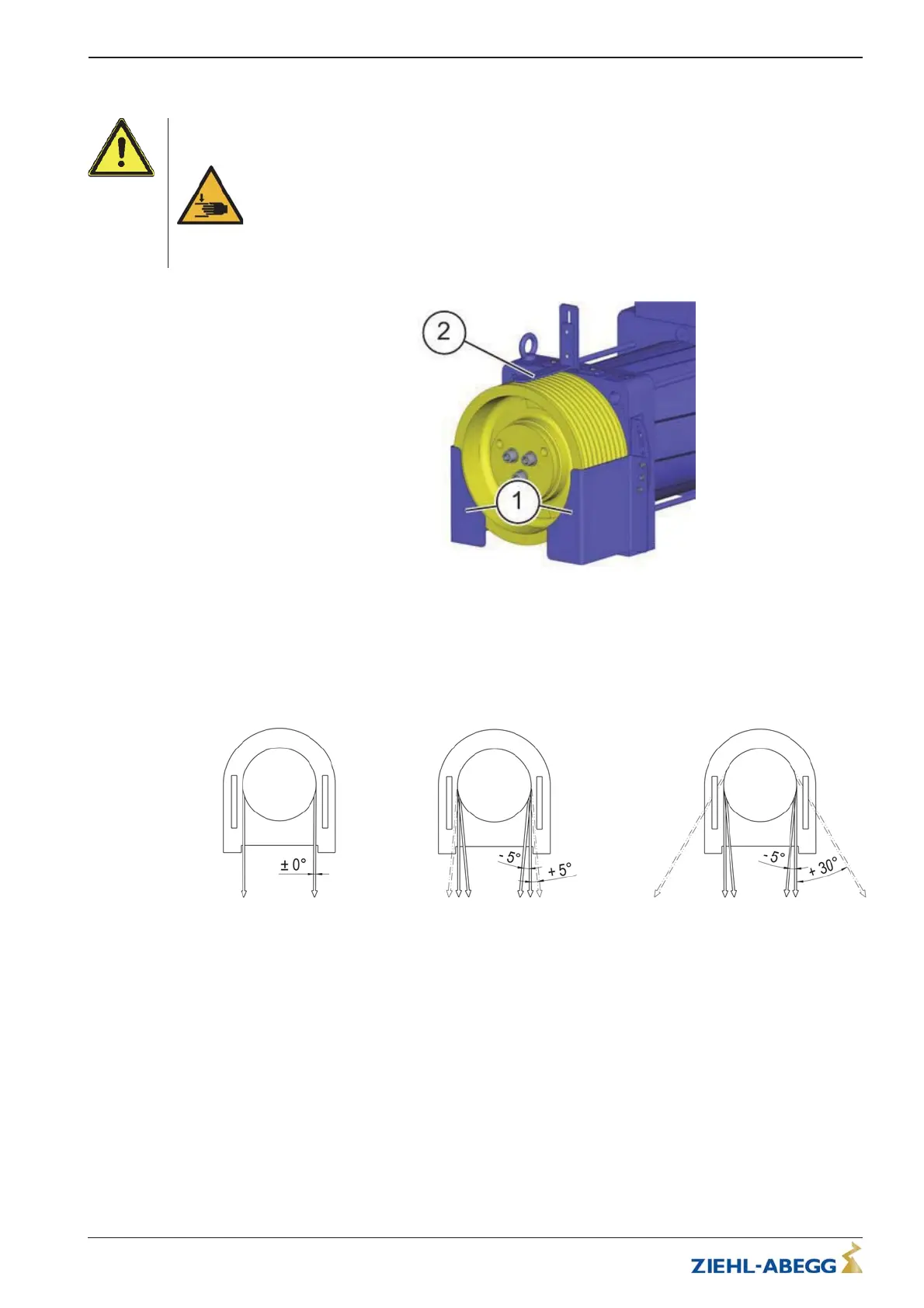

Rope guard
The elevator machine is on the right and left fitted with rope guard (1).
A third rope retainer (2) is optionally available.
Set the rope guard to a distance of 2 - 3 mm from the ropes.
Rope guard adjustability
Depending on the rope guard design, the rope pull can be adjusted differently:
For wrap angle 180°.
Adjustability on both sides ± 5°.
Normal wrap angles 175° - 185°.
Adjustability on both sides - 5°/+ 30°.
Normal wrap angles 150° - 185°.
Translation of the original operating instructions
ZAtop – model series SM210.60B/SM210.70B Mechanical installation
$7%$B*% ,QGH[ Part.-No. 01013389-GB (EU-BD 1014)
12/88
