A brake with a mechanical hand release system is available optionally. The hand release
system cannot be fitted later. The complete brake must be replaced to retrofit the hand release
system.
The replacement of the brake for the ZAtop SM210.60B/SM210.70B is depicted in the operating
instructions. The brake of the ZAtop SM210.60/SM210.70 has identical attachment properties.

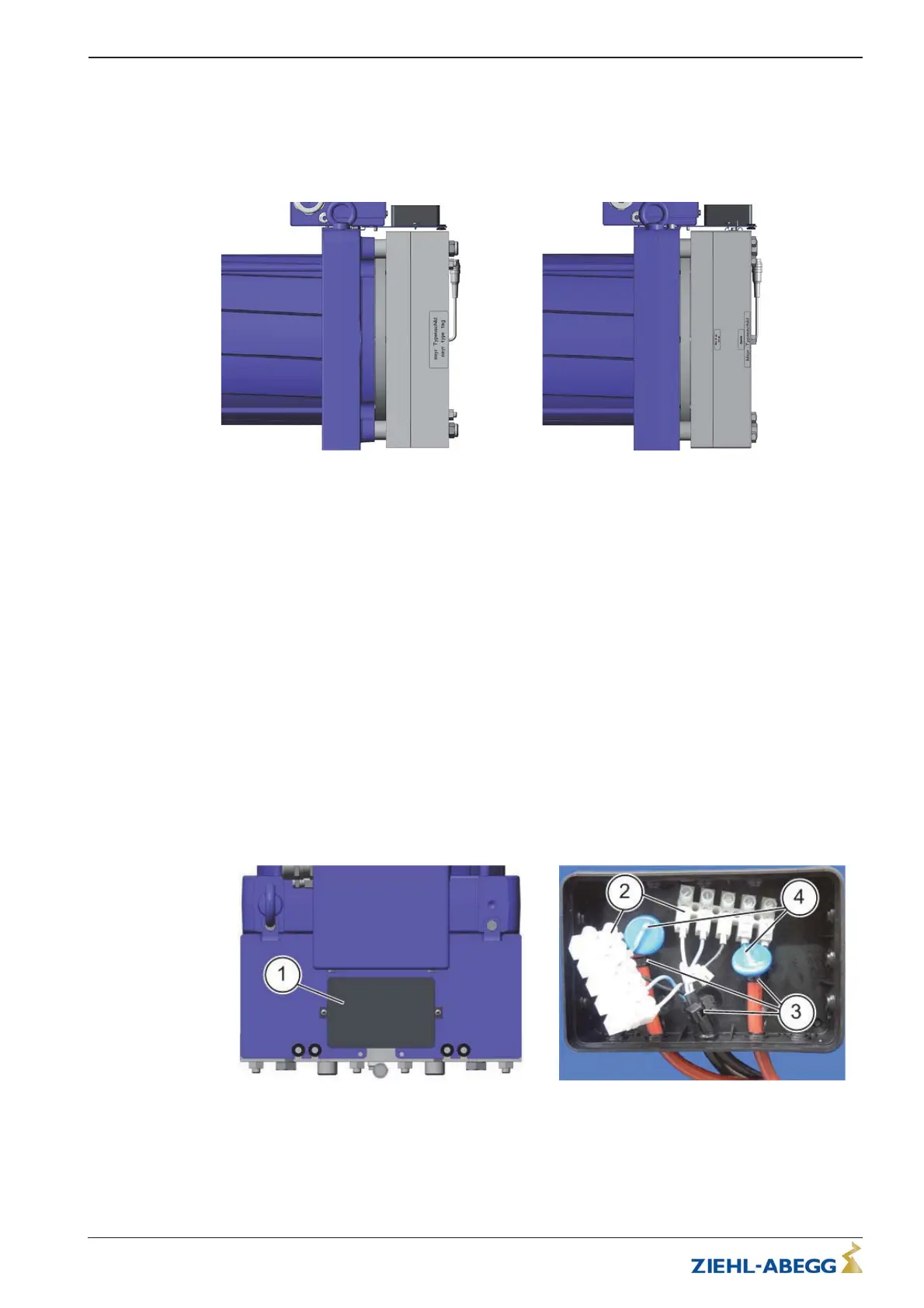

Brake design ZAtop SM210.60B/SM210.70B Brake design ZAtop SM210.60/SM210.70
8.3.2.1 Required tool for the replacement of the brake:
•
ZIEHL-ABEGG toolkit, item 70027450
•
Tool for replacing the absolute encoder (see chapter "Replacement of the absolute encoder")
•
Wire cutter
•
Cable stripper
•
Crimper
•
Slotted screwdriver 0.6 x 3.5
•
screw wrench SW 13
•
screw wrench SW 24
•
Torque wrench for tightening torque 183 Nm with SW 24
•
screw wrench SW 32
•
Allen key SW 17
•
Torque wrench for a tightening torque of 60 Nm with allen wrench SW 17
•
Wrench (included in toolkit, article 70027450)
•
Assembly shaft (included in toolkit, article 70027450)
8.3.2.2 Dismounting the brake
1. Remove the terminal box cover (1).
2. Disconnect the electrical connection (2) of both brakes.
3. Carefully remove strain reliefs (3) of all connecting cables with wire cutters.
4. Cut off varistors (4).
Translation of the original operating instructions
ZAtop – model series SM210.60B/SM210.70B Service and maintenance
$7%$B*% ,QGH[ Part.-No. 01013389-GB (EU-BD 1014)
31/88
