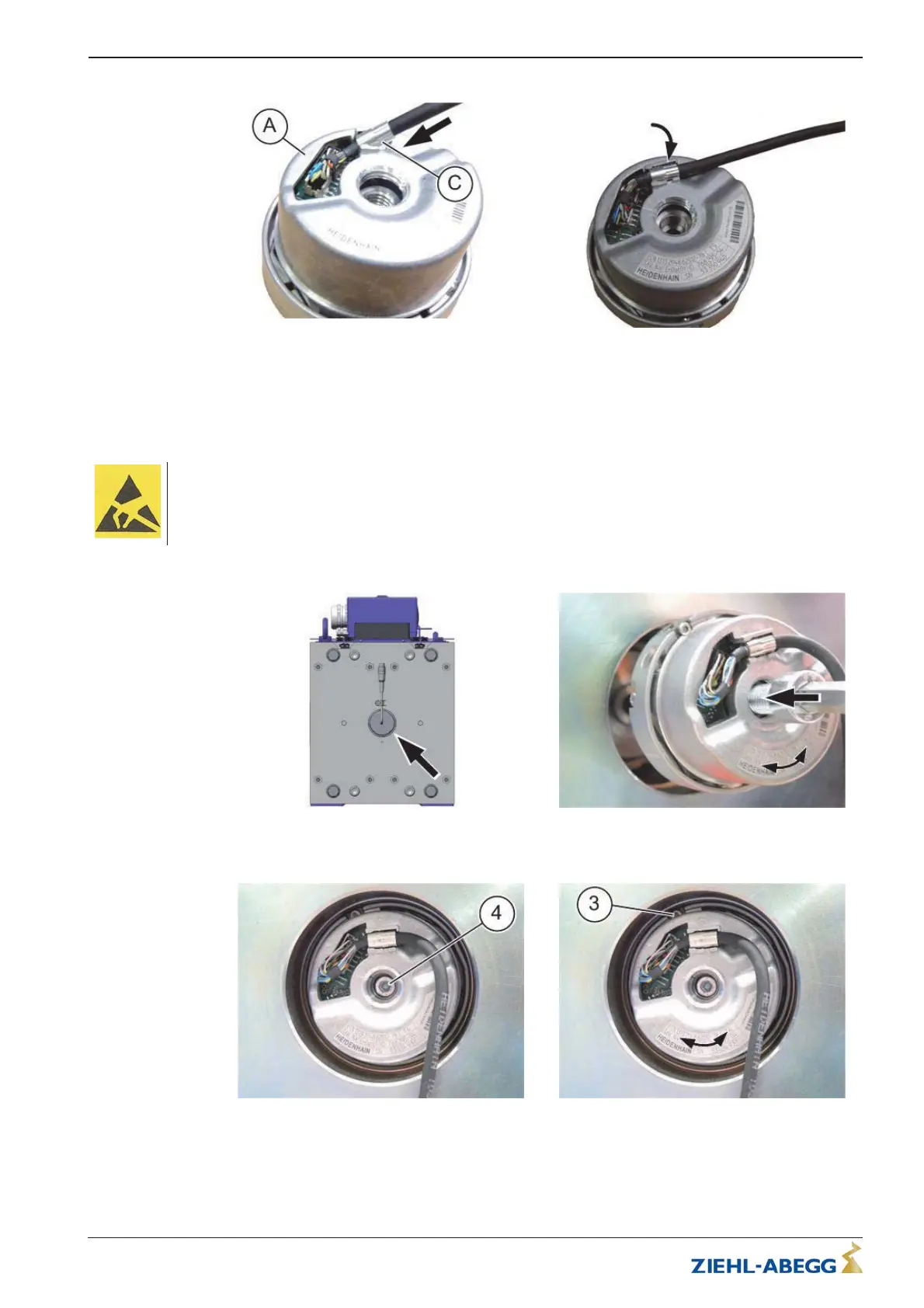

1. Click the socket for the encoder cable (C) into the circuit connector for the absolute value
encoder
(A). Use the recesses provided.
2. Slide the strain relief for the encoder cable (C) diagonally into the recess on the absolute val
ue
encoder (A) as far as it will go and then push in.
8.3.1.4 Mounting the absolute encoder
Caution!
Never touch the connection contacts on the position absolute encoder or on the cable! The electronics can be
destroyed by static electricity.
You must discharge your own body before touching. This can be done, for example, by touching a conductive,
earthed object (e.g. bare metal switch cabinet parts) immediately before.
1. The brake is used to centre the absolute encoder.
2. Insert the absolute value encoder into the housing with a slight turning motion.
3. Tighten the central encoder fastening screw (4) with the size 4 Allen key.
Tightening torque: 5
+0.5
Nm
4. Align the cable outlet by rotating the absolute value encoder and tighten the locking screw (
3)
using
the size 2 Allen key. The position of the locking screw may vary.
Tightening torque: 1.25
-0.2
Nm
Translation of the original operating instructions
ZAtop – model series SM210.60B/SM210.70B Service and maintenance
$7%$B*% ,QGH[ Part.-No. 01013389-GB (EU-BD 1014)
29/88
