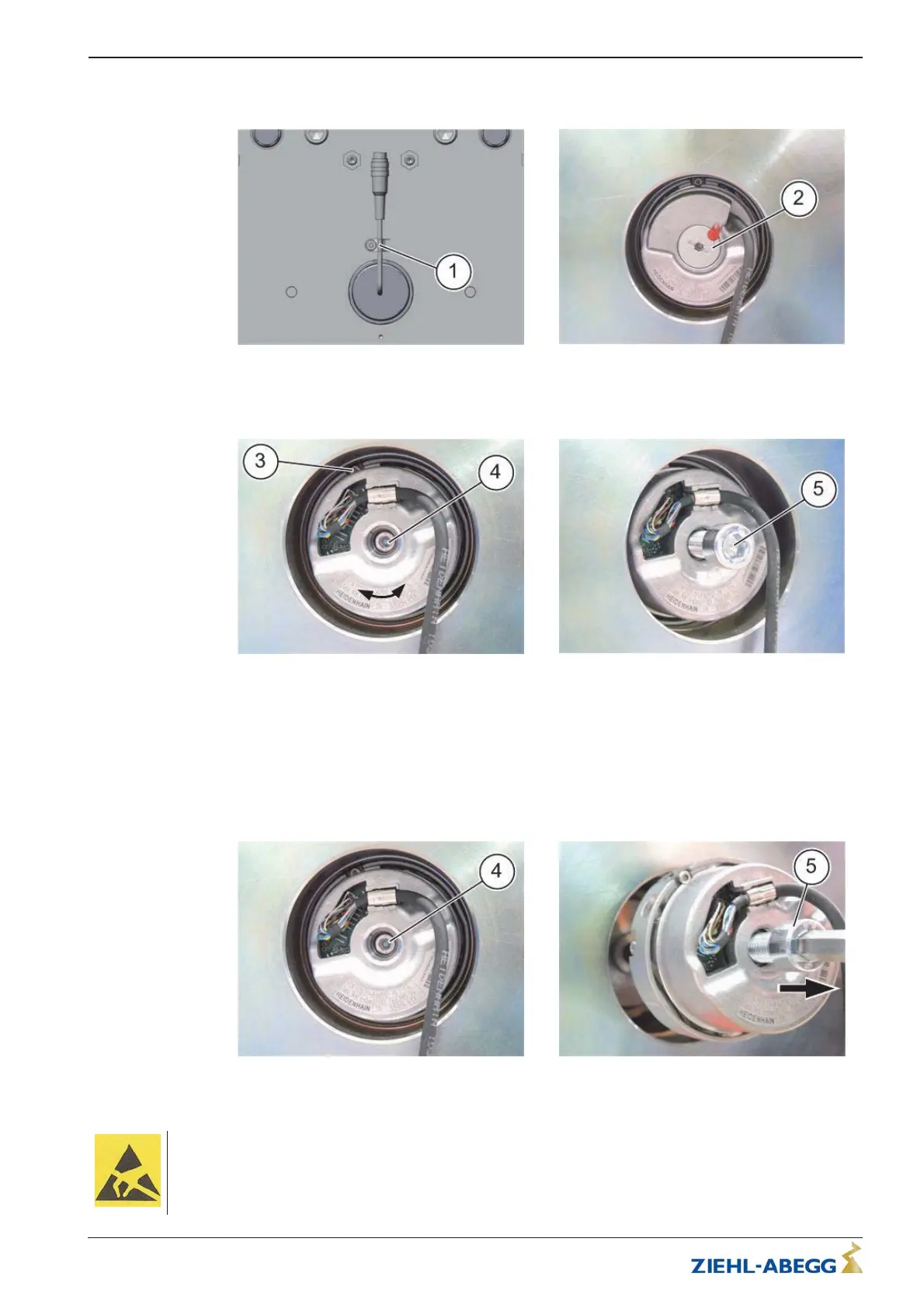

8.3.1.2 Dismounting the absolute encoder
1. Disconnect the encoder cable from the housing by removing the cable retainer (1) with the wire
cutters.
2. Removethecover of the encoder (2) with an allen wrench SW 4
3. Unscrew the clamping screw (3) with an allen wrench SW 2 The position of the clamping screw
can
vary.
4. Loosen the central encoder fastening screw (4) by 2 turns using the size 4 Allen key. The absol
ute
value
encoder can now be turned.
5. Screw the screw M10 x 25 (5) onto the absolute value encoder with an appropriate tool until t
he
encoder
is released. (Screwing in presses the screw onto the central encoder fastening screw (
4),
t
hus releasing the absolute value encoder).
6. Unscrew the screw M10 x 25 (5) again.
7. Unscrew the central encoder fastening screw (4) with the size 4 Allen key.
8. Screw the screw M10 x 25 (5) onto the absolute encoder again and use the screw to remove the
absolute encoder.
Caution!
Due the electrostatic discharge the absolute encoder can be destroyed! Do not touch the pins of the encoder
cable as well as the electronics of the absolute encoder!
You must discharge your own body before touching. This can be done, for example, by touching a conductive,
earthed object (e.g. bare metal switch cabinet parts) immediately before.
Translation of the original operating instructions
ZAtop – model series SM210.60B/SM210.70B Service and maintenance
$7%$B*% ,QGH[ Part.-No. 01013389-GB (EU-BD 1014)
27/88
